KitchenAid KGCC566HBL4 Parts List

36" gas glass ceran cooktop
Hide thumbs


Advertisement

Quick Links

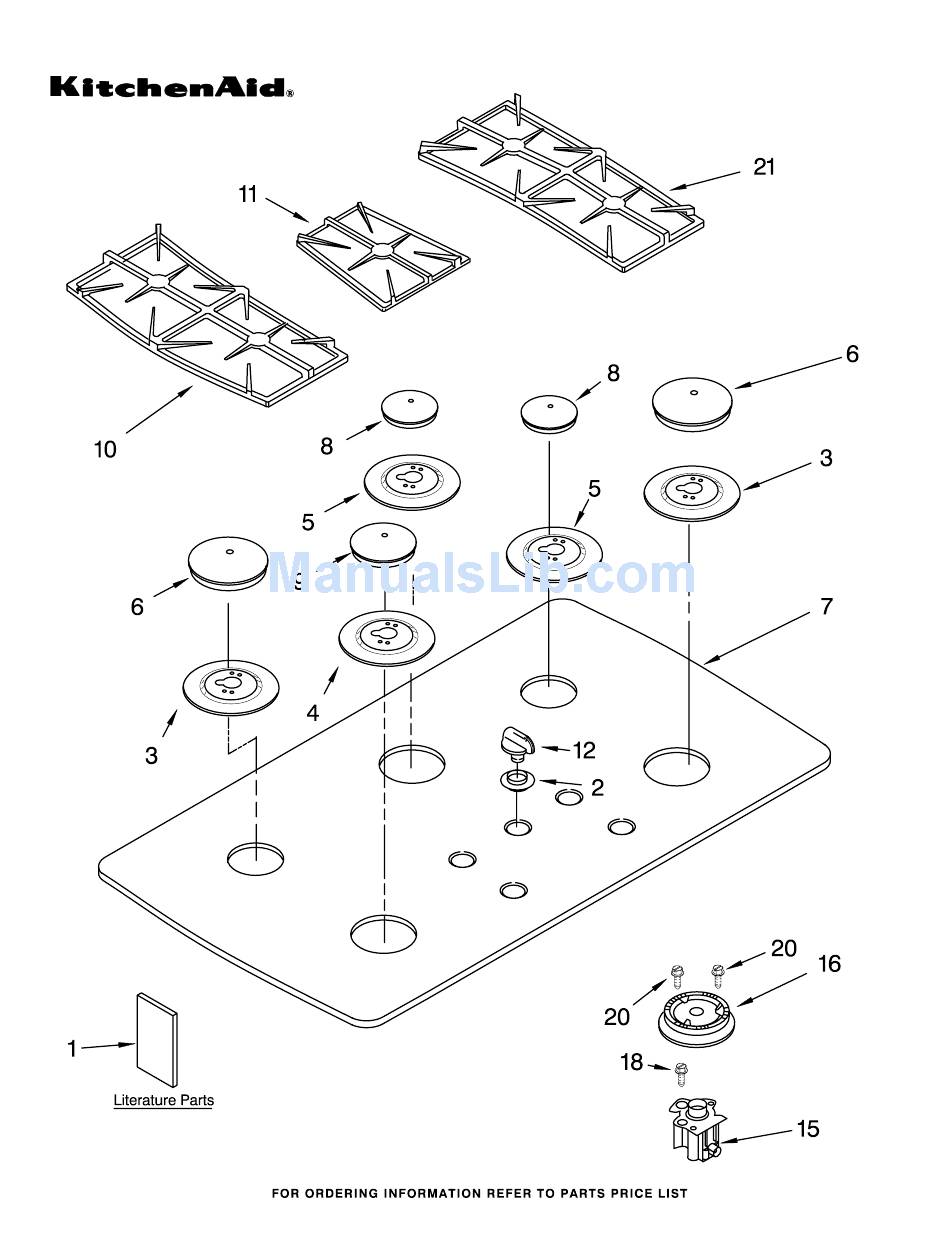

COOKTOP, BURNER AND GRATE PARTS
For Models: KGCC566HBL4, KGCC566HWH4, KGCC566HBT4
(Black)
(White)
(Biscuit)
36" GAS GLASS
CERAN COOKTOP
2−05 Litho in U.S.A. (cre)
1
Part No. 8186280

Advertisement

Table of Contents
loading

  Related Manuals for KitchenAid KGCC566HBL4

  Summary of Contents for KitchenAid KGCC566HBL4

  • Page 1 COOKTOP, BURNER AND GRATE PARTS For Models: KGCC566HBL4, KGCC566HWH4, KGCC566HBT4 (Black) (White) (Biscuit) 36" GAS GLASS CERAN COOKTOP 2−05 Litho in U.S.A. (cre) Part No. 8186280...
  • Page 2 COOKTOP, BURNER AND GRATE PARTS For Models: KGCC566HBL4, KGCC566HWH4, KGCC566HBT4 (Black) (White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Cap, (RF)(LR) Grate, Filler 4455834 Installation 3191729 White 3193023 Mouse Gray Instructions 3191728 Black 3193022 Black 4456479 Use &...
  • Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Models: KGCC566HBL4, KGCC566HWH4, KGCC566HBT4 (Black) (White) (Biscuit) 8186280...
  • Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Models: KGCC566HBL4, KGCC566HWH4, KGCC566HBT4 (Black) (White) (Biscuit) Illus. Part DESCRIPTION 3191557 Rail, Burner 9759357 Pipe, Manifold 4456816 Valve, Gas Burner Burner, (RF)(LR) 3191387 Seal, Shaft 4456817 Valve, Gas Burner (RR)(Center) 4456818 Valve, Gas Burner (LF) 3192819 Rail, Center 3186217 Bolt, Gas Valve...
  • Page 5: Optional Parts

    OPTIONAL PARTS For Models: KGCC566HBL4, KGCC566HWH4, KGCC566HBT4 (Black) (White) (Biscuit) Illus. Part DESCRIPTION Following Parts Not Illustrated 3192231 Cord, Power 4173634 Bushing 3177991 Screw 3183401 Bracket 4167077 Tinnerman Nut 3191933 Seal, Foam−Cooktop Miscellaneous 3188310 Hardware, Mounting 3192741 Conversion Kit Natural Gas To L.P. WIRING HARNESS PARTS 4456626 Harness, Ignitor 15"...
