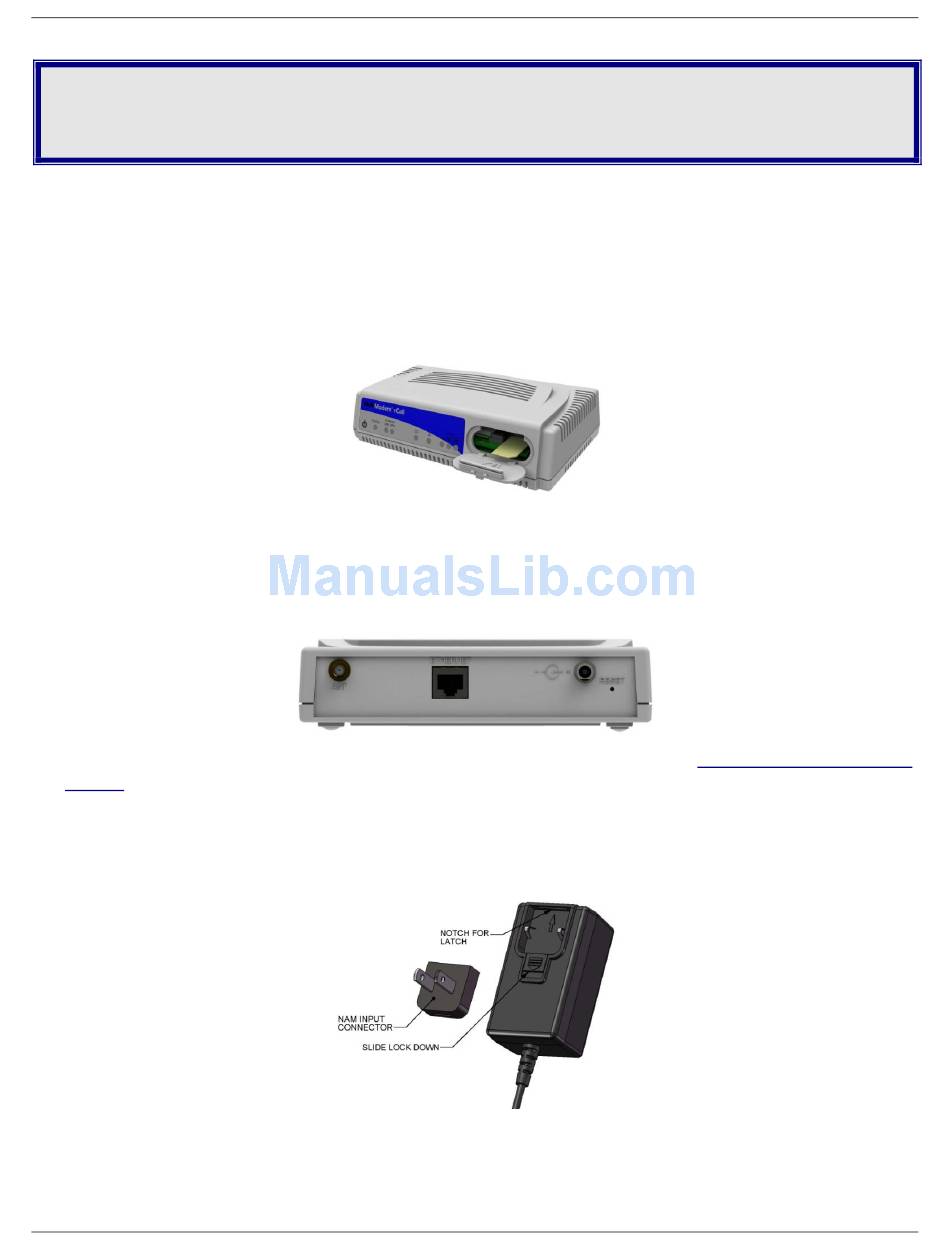

Inserting the SIM
The router requires the power supply connection to begin operation. It also requires a SIM card (Subscriber
Identity Module) to operate on a GSM network. To install the SIM, do the following:
1.
Open the SIM door by pressing down on the tab on the top of the door and prying it open.
Note:
When changing a SIM, disconnect power.
2.
Insert the SIM card into the card holder. The image above shows the correct SIM card orientation.
3.
Verify that the SIM card fits into the holder properly and then close the cover.
Making the Connection
1.
Connect an suitable antenna to the SMA connector. For antenna information, see
Devices.
2.
Connect an Ethernet cable to the ETHERNET connector on the back of the router and to your computer either
directly or via a switch or hub.
3.
Attach the appropriate interchangeable blade piece to the power supply module.
4.
Screw-on the power lead from the power supply module into the power connection on the router.
5.
Plug the power supply into your power source.
15
Chapter 2 - Installation
Antenna System for Cellular
Multi-Tech Systems, Inc. MultiModem rCell User Guide
