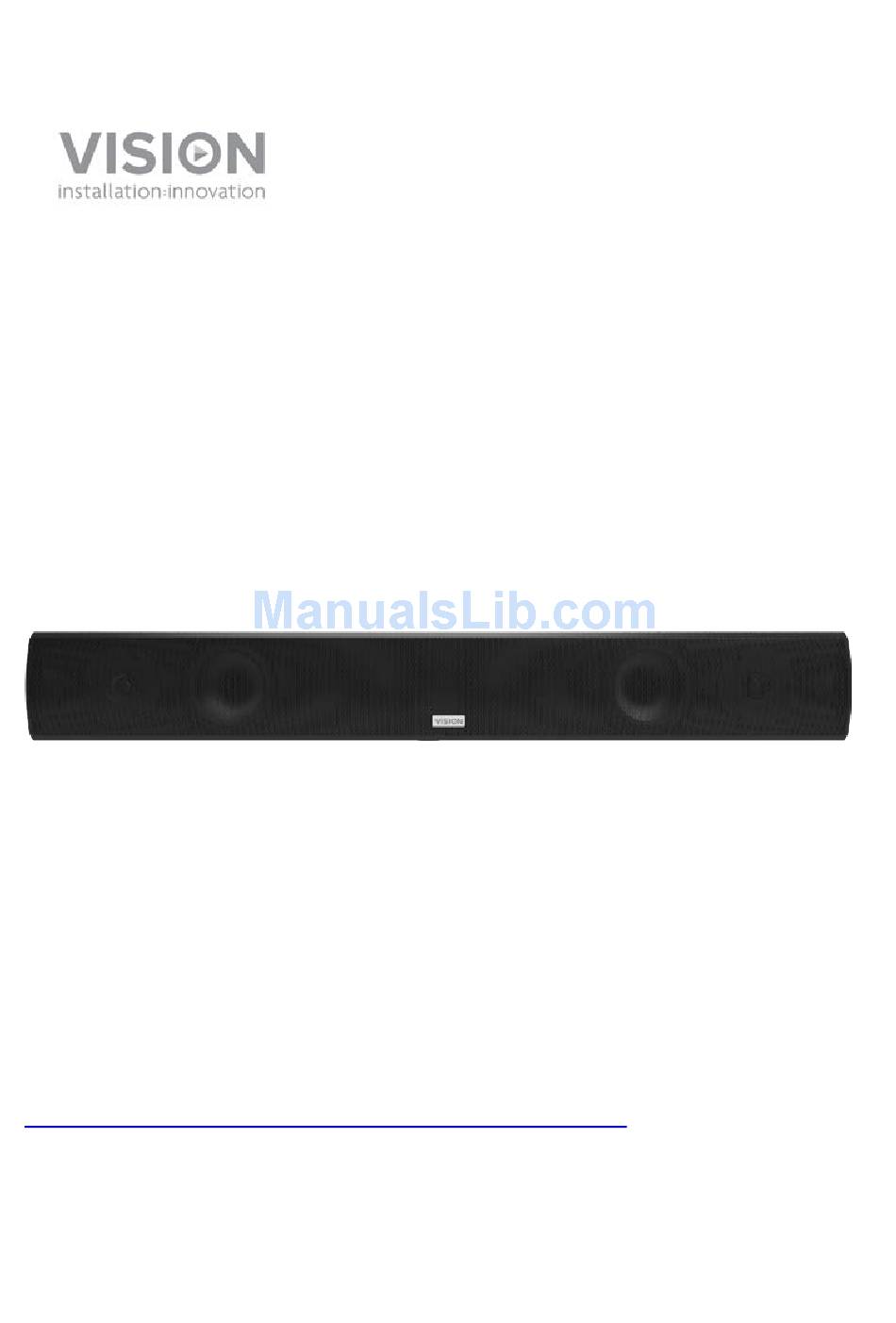

- Page 1 SB-800P SOUNDBAR LOUDSPEAKER OWNERS MANUAL www.visionaudiovisual.com/techaudio/sb-800p SB-800P_manual_en...
-
Page 2: Declaration Of Conformity
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Place Of Installation
WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair. -
Page 4: Rear Panel
REAR PANEL Line-level Inputs: 1 x 3.5mm Minijack 1 x 2-Phono (RCA) Power Input (phoenix connector) Speaker-Level Inputs (phoenix connector) Inputs Selector UNDERSIDE Power LED Volume Dial Turn anticlockwise until it clicks to turn off SB-800P_manual_en... - Page 5 INSTALLING ON WALL FIT BRACKETS TO WALL HOOK SOUNDBAR ONTO BRACKET SB-800P_manual_en...
- Page 6 INSTALLING UNDER SCREEN LAY DISPLAY ON VIEWING SURFACE PUT SOUNDBAR UNDER DISPLAY FIX MOUNTING STRIPS TO SOUNDBAR POSITION STRIPS OVER DISPLAY MOUNTING HOLES SB-800P_manual_en...
- Page 7 POSITION WALL MOUNT EARS ON DISPLAY FIX WALL MOUNT EARS TO DISPLAY HANG DISPLAY IN PLACE SB-800P_manual_en...
-
Page 8: Specifications
INPUT TYPE SELECTOR LINE LEVEL SB-800P has an amplifier built in. It can accept stereo line-level signal which comes out of the headphone jack on a laptop or phone. To adjust volume turn the dial on the bottom (note this product does not have a remote control). -
Page 9: Accessories Included
ACCESSORIES INCLUDED: 2 x Wall brackets 2 x 700mm mounting strips – to hang soundbar beneath flat panel. Note: no input cables are included POWER SUPPLY: 100-240v 50/60Hz AC External Power Supply – 18 volt / 1 amp Transformer integrated into plug. Includes interchangeable plugs: UK/EU/US/AU. DC tail length: 4m. -
Page 10: Warranty
WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale. - Page 11 SB-800P_manual_en...
