QuickSpecs
Overview
1. 6 pairs redundant system fans (3 cooling zones)
2. 8x DIMM slots
3. N+1 power supplies
4. HP 8-port Smart Array SAS Controller (optional)
HP Integrity rx2660 System Overview (Top View)
HP Integrity rx2660 System Overview (Top View)
HP Integrity rx2660 System Overview (Top View)
HP Integrity rx2660 System Overview (Top View)
DA - 12698
Worldwide — Version 30 — April 13, 2012
5. 3-slot I/O cage 3 PCI-x or 2 PCI-e; 1 PCI-x
6. CPUs
7. HDD cage

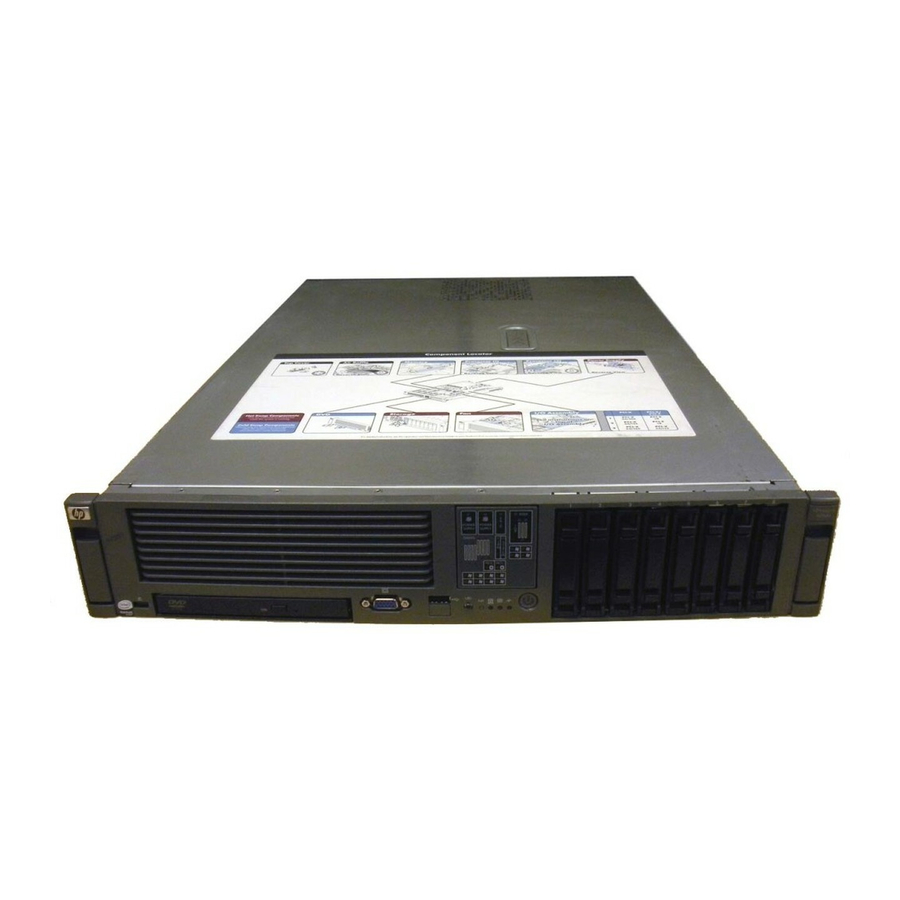

HP Integrity rx2660 Server
HP Integrity rx2660 Server
HP Integrity rx2660 Server
HP Integrity rx2660 Server
Page 1

Advertisement

loading

Related Manuals for HP Integrity rx2660

Summary of Contents for HP Integrity rx2660

  • Page 1 HP Integrity rx2660 Server HP Integrity rx2660 Server HP Integrity rx2660 Server Overview HP Integrity rx2660 System Overview (Top View) HP Integrity rx2660 System Overview (Top View) HP Integrity rx2660 System Overview (Top View) HP Integrity rx2660 System Overview (Top View) 1.
  • Page 2 Core 8 port Serial Attached SCSI (SAS) host bus adapter, supports up to two internal RAID 1 volumes (2×2 HDDs) and a disk for global hot spare, for a maximum of five disks in RAIDed arrays for HP UX, OpenVMS, and Linux. The additional three drives (of the maximum of eight drives supported) can be accessed normally, but not configured for RAID.

  • Page 3: Standard Features

    Four Operating System support: HP UX 11i version 2 (September 2006 Update required for dual core processors); HP UX 11i version 3; Linux RHEL 4 U4 AS and ES, and SLES 10; OpenVMS (V8.3 minimum version required); and Microsoft Windows Server 2003 Enterprise and Datacenter...
  • Page 4 When ordered the optional 8 port Smart Array P400 SAS host bus adapter is located in a 'private' slot and does use one of the system PCI slots. A maximum of (1) Core IO SAS controller connected to the embedded HDD's is supported on the rx2660 server. Journal file system with HP UX...
  • Page 5 Built-in Integrity iLO 2 Management Processor for comprehensive remote server management of HP-UX, Linux, Windows and OpenVMS Integrity iLO 2 Advanced Pack for Virtual Media (CD, DVD, and ISO image) support of HP-UX, Windows and Linux, and Virtual KVM support of Windows...
  • Page 6 Memory Configuration The HP Integrity rx2660 supports DDR (double data rate) SyncDRAM (synchronous dynamic random access memory) DIMMs with ECC and chip spare protection. The HP Integrity rx2660 has eight DIMM slots. A maximum of 32 GB is supported (8×4GB DIMMs).
  • Page 7 I/O Architecture I/O Architecture The HP Integrity rx2660 I/O architecture utilizes industry standard PCI X and PCI Express buses in a unique design for maximum flexibility, I/O card availability, performance, scalability, and reliability. The HP Integrity rx2660 I/O architecture consists of six dedicated I/O channels which provide up to 8.2 GB/s of I/O bandwidth...
  • Page 8 Express slot, which provides up to 1.3 GB/s of sustained bandwidth. The HP 8 Port SAS Smart Array P400 Serial Attached SCSI (SAS) Controller Card supports RAID 1, 5 and 6. All eight disks can be configured with this card for RAID 1, 5 and 6 in any combination. RAID 1 requires two identical HDDs, RAID 5 requires three identical HDDs, and RAID 6 requires four identical HDDs.
  • Page 9 NOTE: This card is mandatory for Windows- based systems. HP Integrity rx2660 HP-UX 11i Supported I/O Cards HP Integrity rx2660 HP-UX 11i Supported I/O Cards HP Integrity rx2660 HP-UX 11i Supported I/O Cards HP Integrity rx2660 HP-UX 11i Supported I/O Cards...
  • Page 10 SCSI - Ultra320 SCSI Multi function Adapter LVD/SE LAN - RJ-45 PCI-X 2 Gb Fibre Channel/1000Base A9782A PCI-X HP PCI-X 1 port 4 Gb Fibre Channel AD193A PCI-X (1) LC, (1) and 1 port 1000Base T Adapter RJ-45 DA - 12698 Worldwide —...
  • Page 11 HP StorageWorks 2 Gb, 64-Bit/133 MHz PCI-X-to-Fibre Dual Channel HBA (AB466A) HP StorageWorks 2 Gb, 64-Bit/133 MHz PCI-X-to-Fibre Single Channel HBA (AB467A) HP StorageWorks 4 Gb Single Port 64-bit 266 MHz Fibre Channel HBA (AD167A) HP StorageWorks 4 Gb Dual Port 64-bit 266 MHz Fibre Channel HBA (AD168A) DA - 12698 Worldwide —...
  • Page 12 HP StorageWorks single port 8 Gigabit PCI-e FC QLogic HBA (AH400A) HP StorageWorks dual port 8 Gigabit PCI-e FC QLogic HBA (AH401A) HP StorageWorks 4 Gb Single Port 64-bit 266 MHz Fibre Channel HBA (AB429A) HP StorageWorks 4 Gb Dual Port 64-bit 266 MHz Fibre Channel HBA (AB379A)
  • Page 13 Boot from fibre channel is supported, however not available directly from factory. Boot support must be configured in field. Boot from external storage only. HP Integrity rx2660 Red Hat Enterprise Linux AS and ES Supported I/O Cards HP Integrity rx2660 Red Hat Enterprise Linux AS and ES Supported I/O Cards...
  • Page 14 HP Integrity rx2660 Server HP Integrity rx2660 Server Configuration For Infiniband support with Linux, please see the HPC Cluster Platform 6000 at www.hp.com/go/hptc. * Boot from external storage only. HP Integrity rx2660 OpenVMS Supported I/O Cards HP Integrity rx2660 OpenVMS Supported I/O Cards...
  • Page 15 HP Integrity USB External DVD-RW drive AT120A NOTE: NOTE: NOTE: NOTE: The HP Integrity USB External DVD-RW drive solution includes the External DVD drive (AT120A) with 9 inch USB cable, power adaptor, power cable and Y connector and 7-foot USB extension cable. NOTE: NOTE:...
  • Page 16 Two 10/100/1000Base T LAN with RJ 45 connector-Supports LAN boot for operating system installation and wake on LAN capability HP 8 Internal Port SAS (Serial Attach SCSI) Host Bus Adapter, supports up to 8 internal SAS disk drives. Windows does not support the integrated SAS Host Bus Adapter. Windows customers must select the optional HP 8 Port SAS Smart Array P400 RAID controller.
  • Page 17 Internal Disk and Media Internal Disk and Media Internal Disk and Media Internal Disk and Media The HP Integrity rx2660 supports up to eight internal Serial Attached SCSI (SAS) 2.5 inch hot plug Drives Drives Drives Drives small form factor hard disk drives An 8 internal port host bus adapter provides 8 ports, 1 port per SAS disk, for point to point connection from the adapter to the disk.
  • Page 18 Configuration HP Integrity Trusted HP Integrity Trusted HP Integrity Trusted HP Integrity Trusted The rx2660 has an accessory option for an embedded security chip - the Trusted Platforms Module Platform Module Platform Module Platform Module Platform Module (TPM) - product number AB404A. HP-UX Trusted Computing Services (HP-UX TCS) provides software support for the TPM when running HP-UX 11i v2.

  • Page 19: Technical Specifications

    Server From Factor Server From Factor (Required - Must choose either Factory Rack Integration or Field Rack Kit) Please refer to the HP 10000 Series G2 Rack Best Practices Guide for information on rack deployment, stabilization and transportation (http://www.HP.com/go/rackandpower) Universal Rack Kit...
  • Page 20 PCI-X/PCI Express combo card cage (2×Express slots with 4×333 MHz ropes, and AD247A** 1×133 MHz/64 bit PCI-X) *Not supported with Windows based systems. **Required for Windows based systems. Optional for HP UX , Linux- and OpenVMS based systems. DA - 12698 Worldwide — Version 30 — April 13, 2012 Page 20...
  • Page 21 QuickSpecs HP Integrity rx2660 Server HP Integrity rx2660 Server HP Integrity rx2660 Server HP Integrity rx2660 Server Technical Specifications Maximum I/O Cards Maximum I/O Cards Maximum I/O Cards Maximum I/O Cards Mass Storage Mass Storage Mass Storage Mass Storage (See supported I/O table...
  • Page 22 Intel and Itanium are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
