Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest
position (Figure RL.1).
3. Place monitor face down on a non-abrasive surface (Place the
screen on a 55mm platform so that the stand is parallel with
the surface.) (Figure S.1).
4. Press the " " portion with your index finger and at the same
time slide the lower stand cover. (Figure S.2)
Next, lift up the stand, remove the lower stand cover, then go
on to remove the upper stand cover. (Figure S.3)
Return the stand to its original position, remove the 4 screws
that connect the monitor to the stand, and lift off the stand
assembly. (Figure S.4)
5. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.

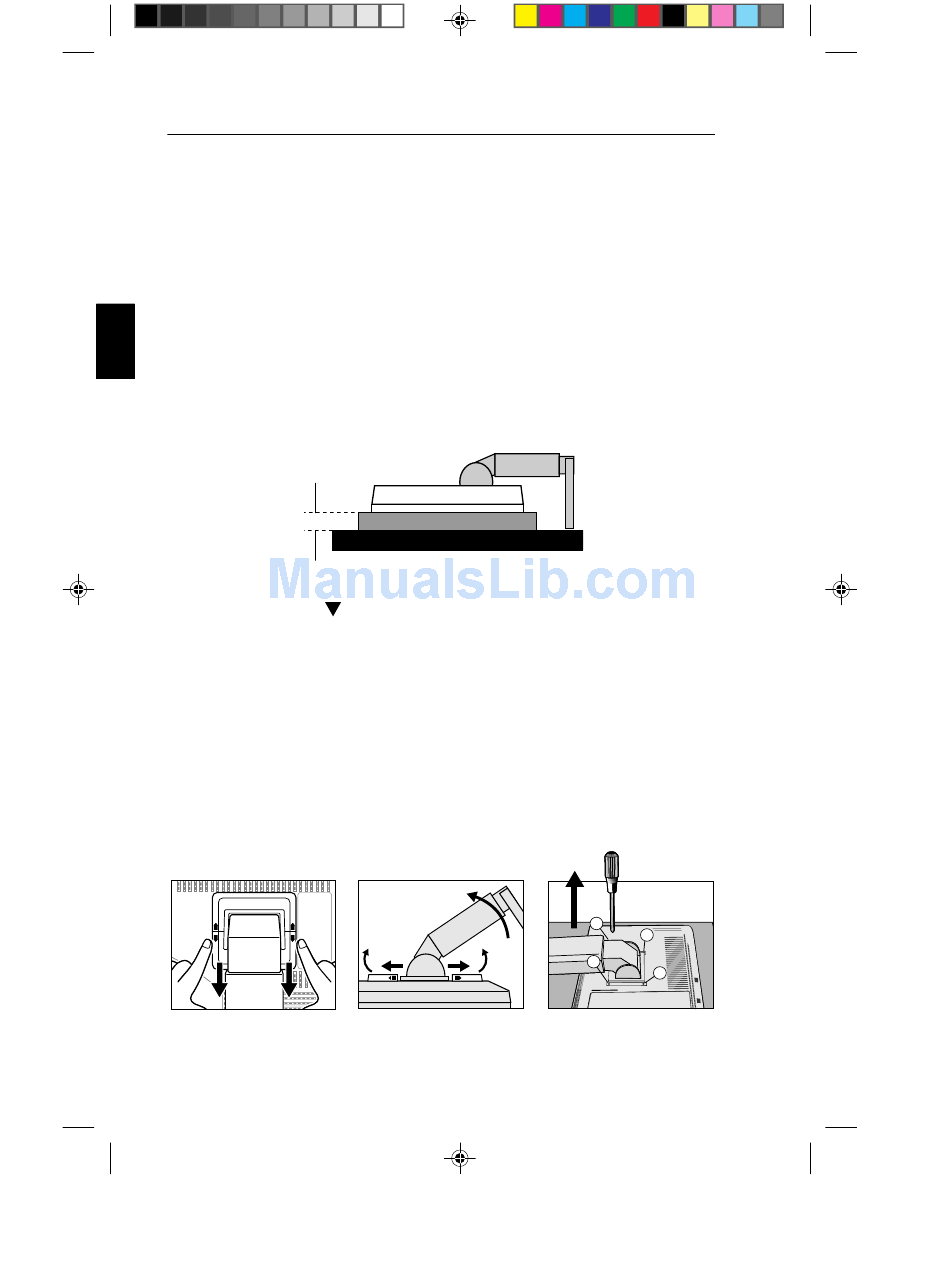

Figure S.2
78133813.PM5
55mm
Figure S.1
Figure S.3
34
Installation
4
3
1
2
Figure S.4
