MultiSync LCD1830
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for NEC MultiSync LCD1830

Summary of Contents for NEC MultiSync LCD1830

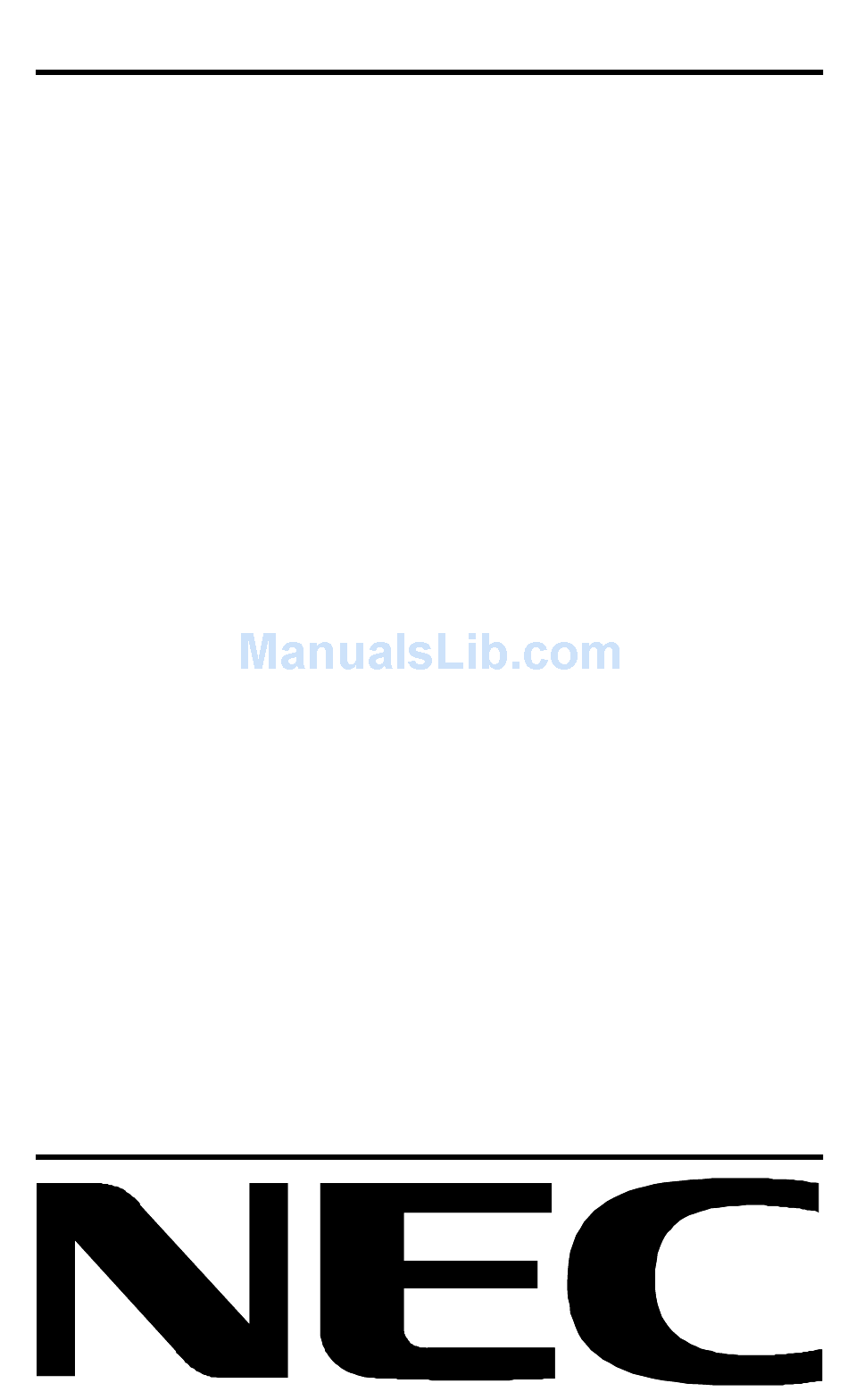

  • Page 1 MultiSync LCD1830 User’s Manual...
  • Page 2 Caution: When operating the MultiSync LCD1830 with a 220-240V AC power source in Europe except UK, use the power cord provided with the monitor. In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment.
  • Page 3 Declaration We hereby certify that the colour monitor MultiSync LCD1830 (LA-18S02) and MultiSync LCD1830 (LA-18S02-BK) are in compliance with Council Directive 73/23/EEC: Council Directive 89/336/EEC: and marked with NEC-Mitsubishi Electric Visual Systems, Corp. Power consumption of the monitor is less than 3 W when in power-saving mode.

  • Page 4: Canadian Department Of Communications Compliance Statement

    Ce produit porte la marque ‘C-UL’ et se conforme aux règlements de sûrele Canadiens selon CAN/CSA C22.2 No. 950. FCC Information 1. Use the attached specified cables with the MultiSync LCD1830 colour monitor so as not to interfere with radio and television reception.

  • Page 5: Declaration Of Conformity

    We hereby declare that the equipment specified above conforms to the technical NEC-Mitsubishi Electronics Display of America, Inc. 1250 N. Arlington Heights Road Itasca, Illinois 60143-1248 (630)467-3000 Computer Monitor Class B Peripheral MultiSync LCD1830 standards as specified in the FCC Rules. English-4...
  • Page 6 Contents Your new NEC MultiSync LCD monitor box* should contain the following: • MultiSync LCD1830 monitor with tilt base • Power Cord • Video Signal Cable • User’s Manual • CD-ROM includes complete User‘s Manual in PDF format and Windows related files (Inf file and color profile). To see the complete User‘s Manual, Acrobat Reader 4.0 must be installed on your PC.

  • Page 7: Quick Start

    For the Mac: Connect the MultiSync LCD1830 Macintosh cable adapter to the computer (Figure B.1). Attach the 15-pin mini D-SUB end of the appropriate signal cable to the MultiSync LCD1830 Macintosh cable adapter (Figure B.1). Tighten all screws. Remove connector cover and cable cover on back of monitor (Figure E.1).
  • Page 8 Figure A.1 AC Power Cord Signal Cable 1. Cables pass through in this hole. 2. Connect each connector. 3. Replace connector cover with cables passing through upper opening. Power Outlet 15-pin mini D-SUB Mac Adapter (not included) Figure B.1 INPUT2 To Computer English-7 15-pin...
  • Page 9 Marking area (1. Push) Figure E.1 Marking I. Cable Cover How to remove this cover. 1. Push marking area 2. Slide to up side 3. Remove Push II. Connector Cover How to remove this cover. 1. Push under side 2. Remove English-8 Push...

  • Page 10: Remove Monitor Stand For Mounting

    Tilt Grasp both sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1). Remove Monitor Stand for Mounting To prepare the monitor for alternate mounting purposes: 1. Remove the connector cover, hinge cover and cable cover.

  • Page 11: Auto Adjust

    Controls OSM (On-Screen-Manager) Controls The OSM controls on the front of the monitor function as follows: To access OSM press any of the control buttons ( , , , ). To change signal input, press the INPUT 1/2 button. Main Menu Control Exits the OSM controls.

  • Page 12: Color Control Systems

    Auto Adjust Automatically adjusts the Image Position, the H. Size and Fine setting. Position Controls LEFT/RIGHT Controls Horizontal Image Position within the display area of the LCD. UP/DOWN Controls Vertical Image Position within the display area of the LCD. AUTO ADJUST Automatically sets the Horizontal and Vertical Image Position within the display area of the LCD.

  • Page 13: Expansion Mode

    sRGB sRGB mode dramatically improves the color fidelity in the desktop environment by a single standard RGB color space. With this color supported environment, the operator could easily and confidently communicate colors without further color management overhead in the most common situations. NATIVE Original color presented by the LCD panel that is unadjustable.

  • Page 14: Video Detect

    VIDEO DETECT Selects the method of video detection when more than one computer is connected. NONE The Monitor will not search the other video input port unless the monitor is turned on. FIRST DETECT The video input has to be switched to “FIRST DETECT”...
  • Page 15 OSM TURN OFF The OSM control menu will stay on as long as it is use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset choices are 10, 20, 30, 60 and 120 seconds.
  • Page 16 OSM Warning OSM Warning menus disappear with Exit button. NO SIGNAL: This function gives a warning when there is no signal present. After power is turned on or when there is a change of input signal or video is inactive, the No Signal window will appear.

  • Page 17: Recommended Use

    Recommended Use Safety Precautions and Maintenance FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MULTISYNC LCD COLOR MONITOR: • DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks.
  • Page 18 • Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor. Caution • The power cable connector is the primary means of detaching the system from the power supply.
  • Page 19 • Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects). • Get regular eye checkups. Ergonomics To realize the maximum ergonomics benefits, we recommend the following: • Adjust the Brightness until the background raster disappears •...

  • Page 20: Specifications

    Current Rating Dimensions Weight Environmental Considerations Operating Temperature: Humidity: Altitude: Storage Temperature: Humidity: Altitude: MultiSync LCD1830 Monitor 51 cm/18.1 inches 51 cm/18.1 inches 1280 x 1024 Video: ANALOG 0.7 Vp-p/75 Ohms Sync: Separate sync.TTL Level Horizontal sync. Positive/Negative Vertical sync. Positive/Negative Compostite sync.
  • Page 21 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.
  • Page 22 Features sRGB Color Control: A new optimized color management standard which allows for color matching on computer displays and other peripherals. The sRGB, which is based on the calibrated color space, allows for optimal color representation and backward compatibility with other common color standards.
  • Page 23 FullScan Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size. Wide Viewing Angle Technology: Allows the user to be able to see the monitor from any angle (160 degrees) from any orientation – Portrait or Landscape.

  • Page 24: Troubleshooting

    “ghost” of that image remains, the monitor should be turned off for one hour to erase the image. NOTE: As with all personal display devices, NEC-Mitsubishi Electronic Displays recommends using a screen saver at regular intervals whenever the screen is idle.

  • Page 25: No Video

    • Check the monitor and your display card with respect to compatibility and recommended signal timings. • If your text is garbled, change the video mode to non-interlace and use 60 Hz refresh rate. Message “OUT OF RANGE” is displayed (screen is either blank or shows rough images only) •...
  • Page 26 TCO’99 This is a translation of the original English TCO'99 document. MultiSync LCD1830 white Model (LA-18S02) Congratulations! You have just purchased a TCO’99 approved and labeled product!Your choice has provided you with a product developed for professional use. Your purchase has also contributed...
  • Page 27 The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety. The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things.
  • Page 28 Cadmium** Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. TCO’ 99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium.
  • Page 29 TCO’95 MultiSync LCD1830 Black Model (LA-18S02-BK) Congratulations! You have just purchased a TCO’95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products.
  • Page 30 The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy.
  • Page 31 Cadmium** Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million) of cadmium. The colourgenerating layers of display screens must not contain any cadmium.
