Scenario 1 – MultiConnect IP as a Modem

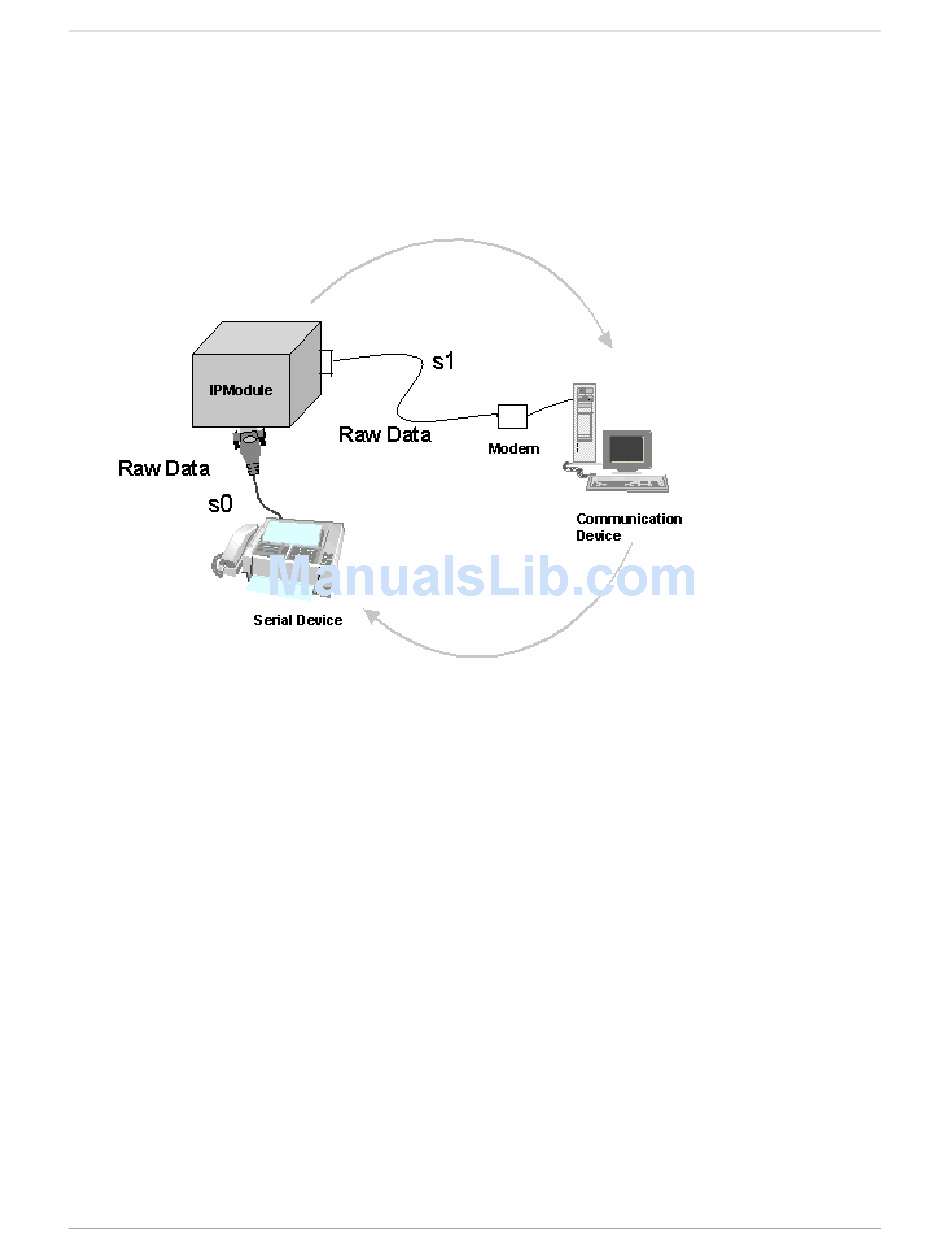

In this scenario, once the physical link is up on the built-in modem interface; i.e., by dialing or answering,
the serial device connected to the RS-232 interface (S0 of the target) can communicate to the device on
the built-in modem interface (S1 of the target) and vice-versa.
Commands for MultiConnect IP as a Modem
# set operation-mode modem
# set serial s0 escape-monitor enable
# set serial s0 escape-string "+++inets0"
# set serial s0 stop-bits 1
# set serial s0 baud-rate 115200
# set serial s0 data-bits 8
# set serial s0 parity none
# set serial s0 flow-control rts-cts
# set serial s1 stop-bits 1
# set serial s1 baud-rate 115200
# set serial s1 data-bits 8
# set serial s1 parity none
# set serial s1 flow-control rts-cts
# save
Notes:
•
You can switch from Data mode to Command mode using the escape-monitor-string
configuration. The control is transferred to the command prompt. Either "Login" or the
command shell is prompted depending on the configuration.
•
You can switch from Command mode to Data mode using the restore session command.
•
The data session is dropped if the physical link goes down.
