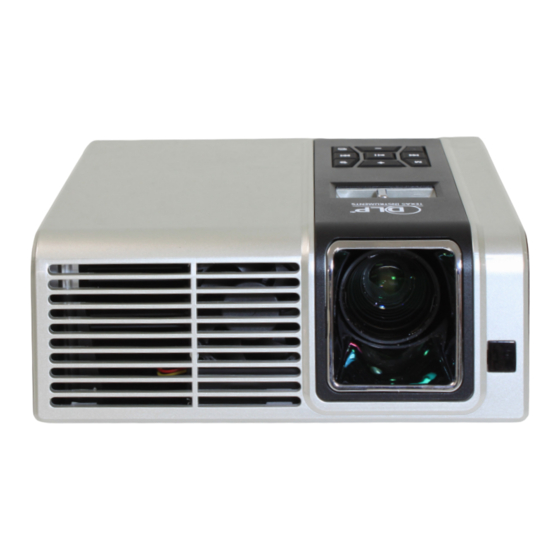

- Page 1 OEM-250 Micro Projector User Manual...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Warnings Package Contents Product Overview Keypad & Remote Control Functions General Operation External Inputs PMP Menu System Videos Pictures Music eBooks Games Settings Troubleshooting Specifications... -
Page 3: Warnings
Warnings *Do not operate the Projector in direct sun- light or near heat sources such as heaters, fires, and stoves as this may cause a fire hazard. *Do not operate the projector close to sources of steam or oil such as a humidi- fier as this may cause electric shock. -
Page 4: Package Contents
Package Contents Projector Remote Control Tripod Composite A/V Cable USB Cable Power Cord VGA Cable... -
Page 5: Product Overview
Product Overview Projection Lens Focus Adjustment Keypad Controls Power Button USB Input SD-HC Card Slot Audio Output AV Input VGA Input HDMI Input Power Input... -
Page 6: Keypad & Remote Control Functions
Keypad & Remote Control Functions Volume Controls Back Menu Playback Controls Power Sources Mute Audio Power Menu Volume Controls Keystone Adjustment Navigation Controls Menu Escape Playback Controls... -
Page 7: General Operation
General Operation Turning on the projector To turn on the projector first plug the power supply into a suitable wall outlet and to the rear of the projector. Then power the projector on by holding the power button for 3 seconds until the optical engine turns on. Shutting down the projector To shut down the projector, press and hold the power button for 3 sec. -
Page 8: Accessing The Onboard Memory
General Operation Accessing the Onboard Memory The OEM-250 Micro Projector includes 1GB of onboard memory. To access this memory, connect a USB cable from your computer to the back of the projector in the slot that reads “USB”. A folder will appear on your computer screen after the projector is detected. -
Page 9: External Inputs
OEM-250 as an external monitor on Windows based systems, this can be done by selecting “extend my desktop to this monitor”. The native resolution of the OEM-250 projector is SVGA (800x600) and it accepts up to a 1280x800 signal. Depending on the video driver different resolutions many need to be selected for proper output. - Page 10 This is done by connecting the HDMI cable to the HDMI input port of the projector. Toggle through the input sources and once you select HDMI input, your display should appear. The OEM-250 accepts up to a HDMI 1.2 signal.
- Page 11 PMP System - Main Menu The OEM-250 projector features a built-in PMP (Portable Media Player) func- tion. This function allows the projector to play videos, pictures, music files, and text. To access the Main Menu, simply turn on the projector. The screen displayed below will appear.
- Page 12 PMP System - Main Menu On the main menu, you can press the Menu button on your remote to bring up a more advanced options menu. This lets you change settings regarding the Image, and general Projector Setup. Brightness: Changes brightness mode from regular to boost mode (may cause additional heat and fan...
-
Page 13: Videos
PMP System - Videos The OEM-250 micro projector’s PMP system supports direct playback of a wide variety of video formats. To access videos in memory or a SD Card, first select the “Videos” item in the main menu: Once in the Videos menu, there are three items that can be selected to... -
Page 14: Playing Videos
PMP System - Videos Playing Videos play/pause - To a video, press the play button button in the middle of the keypad or remote control. rewind - To , press and hold the left arrow button fast-forward - To , press and hold the right arrow button jump forward - To... - Page 15 PMP System - Photos The OEM-250 micro projector’s PMP system supports direct playback of a wide variety of image formats. To access photos in memory or a SD Card, first select the “Photos” item in the main menu: Once in the Photos menu, there are three items that can be selected to...
-
Page 16: Pictures
PMP System - Photos Viewing Pictures The OEM-250 Micro Projector allows you to view pictures individually or in a slideshow. To view individual photos, select the file you want to view in the file menu for the particular storage device on which the image file is stored. -
Page 17: Music
PMP System - Music The OEM-250 micro projector’s PMP system supports direct playback of a wide variety of music formats. To access music in memory or a SD Card, first select the “Music” item in the main menu: Once in the Music menu, there are three items that can be selected to... -
Page 18: Listening To Music
PMP System - Music Listening to Music The OEM-250 Micro Projector allows you to playback music as singles or in sequence. To begin music playback, select the file you want to play in the file menu for the particular storage device on which the music file is stored. - Page 19 PMP System - Music Library The music library can be accessed through the Music Menu. This library sorts all your music by artist, album, genre, star, year and all items. To access your library, follow the directions below: - Select Music from the main menu - Select Library from the music menu - Select which category you want to search your song - Select the file you want to play...
-
Page 20: Ebooks
PMP System - eBooks The OEM-250 micro projector’s PMP system supports direct playback of writ- ten text from pages of an ebook or text file. To access eBooks in memory or a SD Card, first select the “eBooks” item in the main menu:... - Page 21 Reading eBooks The controls for ebooks is different from the other onboard programs. Please follow the directions below to better understand how to use ebooks with the OEM-250. next page - To go to the , press the Vol- button ( on the remote).
-
Page 22: Games
PMP System - Games The OEM-250 micro projector’s PMP system lets you play games through projector. To access games in memory or a SD Card, first select the “Games” item in the main menu: Once in the Games menu, there are three items that can be selected to... - Page 23 PMP System - Games There are three pre-uploaded games in the projector for your entertainment - Chess, Pick Block and Russia Block. Other games can be added to the on- board memory and you can also play games saved on a SD card. *Unfortunately new games are currently unavailable for purchase Chess Game After selecting Chess Game from the game menu, you will be shown the...
- Page 24 PMP System - Games Pic Block After selecting Pick Block from the game menu, you will be shown the following four options before starting your game: New Game: Select to start a new game Level Setting: Select to set the diffculty of the puzzle, from 9 to 49 blocks Select Picture: Select from five different puzzles to unscramble.
- Page 25 PMP System - Games Russia Block After selecting Russia Block from the game menu, you will be shown the following four options before starting your game: New Game: Select to start a new game Level Setting: Select to set the diffculty of the game Exit: Select to go back to game menu Russia Block Controls...
-
Page 26: Settings
PMP System - Settings The Settings Menu can be accessed by selecting “Settings” on the main menu. Once in the Settings menu, there are four items that can be selected to ad- just the basic PMP system settings:... -
Page 27: Menu Language
PMP System - Settings Key Tone Effect The key tone is the subtle “beep” your projector makes each time you press a button within the menu and submenus. To turn this sound on/off, select Key Sound Effect from the Settings Menu. From there you will have the option to change your preference. -
Page 28: Troubleshooting
Troubleshooting THE PROJECTOR DOES NOT TURN ON Possible Causes Solution There is no power Check to ensure the power outlet or battery source is good. Check the power adapter to ensure a proper connection with the wall outlet as well as the projector. Confirm that the unit is charged and has enough power. -
Page 29: Specifications
Specifications Brightness: 250 ANSI-Lumen Resolution: SVGA (800x600) Contrast Ratio: 1000:1 Noise: <30 dB Projection Lens: Manual Focus Image Size: 10 ~ 100 inches Lamp: 15,000 hour RGB Triple LEDs Video In: Composite A/V HDMI Audio Output: 1 W stereo speakers 3.5 mm audio jack Storage Capacity: 1 GB Flash...
