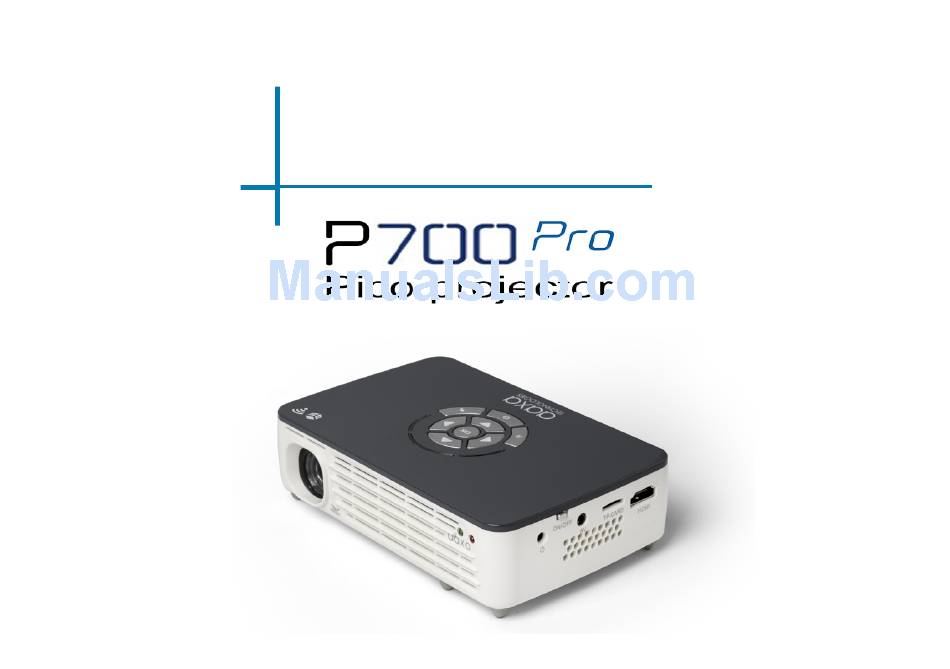

  • Page 1 aaxa TECHNOLOGIES User Guide...
  • Page 2 Caution! WARNING: Please use this product as instructed. Misuse may cause injury or death. DO NOT use while driving. Keep the projector and charger away from any heat sources. DO NOT expose to water or wet surfaces. Electric shock may occur. Caution for Headphone Use •...

  • Page 3: Table Of Contents

    Table of Contents Chapter 1: P700 Pro at a Glance Viewing Productivity Docs P700 Pro Introduction Smartphone Mirroring Remote & Keypad Connecting to Wi-Fi Accessories Streaming Applications Chapter 2: Getting Started Connecting to Bluetooth Chapter 3: Settings Menu Focus Adjustment / Throw Distance External Inputs/Outputs Application Manager Bluetooth &...

  • Page 4: Chapter 1: P700 Pro At A Glance

    Chapter 1 P700 Pro at a Glance Main Unit Front/Back Power Button HDMI Port Micro SD Card Slot Power Switch AV Port Power Port Focus Adjustment VGA Port Headphone Out USB Port...

  • Page 5: Remote & Keypad

    Remote & Keypad LED Lights Direction Pad Power On/Off Select Source Main Menu Mute Navigation Volume Up Volume Down Keystone - Keystone + Main Menu Enable 3D Input On / Off Exit/Back Back Remote Both the keypad and remote can be used to navigate through the menus. The Main Menu Navigation on the remote functions exactly the same as the directional pad on the P700 Pro unit.

  • Page 6: Accessories

    Accessories Tripod Remote VGA Cable Power Adapter A/V Cable *Under various circumstances, the actual accessories may be different from those shown in the pictures above. Additional accessories are available for purchase at www.aaxatech.com...

  • Page 7: Chapter 2: Getting Started

    Chapter 2 Getting Started Powering ON the projector Connect the power cord to the P700 Pro. Connect the other end of the power cord into the wall power source. Toggle the On / Off switch on the side of the projector to the “ON” position --the projector should automatically turn on.

  • Page 8: Focus Adjustment / Throw Distance

    Focus Adjustment / Throw Distance Focus Adjustment • Spin the focus wheel up or down until the image becomes clear. Throw Distance Chart Throw Distance Diagonal Size Units: Inches Units: Inches 16:9 Aspect Ratio Throw Ratio 1.2 Projection Angle: 100% Offset *minimum throw distance: 20 inches...

  • Page 9: External Inputs/Outputs

    External Inputs and Outputs...

  • Page 10: Navigating The Main Menu

    Navigating the Main Menu Main Menu The Main Menu allows access to all the features of the P700 Pro. Note: While the Keypad and Remote Control are usable to access the basic features of the P700 Pro, it is recommended to use a mouse, either USB or Bluetooth. Inputs &...
  • Page 11 Navigating the Main Menu Cont. Pop-Up Menu: The Pop-Up Menu may be accessed with a mouse by clicking the “up” arrow at the bottom of the screen and may be closed by clicking the “down” arrow. The Pop-Up Menu allows the user to access Main Menu, Open Applications, Adjust Volume and 3D Capabilities.

  • Page 12: Connecting To A Computer Hdmi

    Connecting to a Computer via HDMI Step 1: Connect one end of the HDMI Cable to your computer’s HDMI port. Step 2: Connect the other end of the HDMI Cable to your P700 Pro’s HDMI port. Step 3: In the Main Menu, select the “Inputs” icon and then the “HDMI”. Select “HDMI”...
  • Page 13 Connecting to a Computer Cont. Step 4: Enabling HDMI output on your Computer – To enable HDMI output on your computer most comput- ers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable HDMI output. Below are standard instructions for a Windows 10 computer –...
  • Page 14 Connecting to HDMI Video Source Step 1: Step 2: In the Main Menu Turn on your multimedia device. The projector should automatically detect a Blu-Ray player or HDMI video source as 1920x1080p reso- lution. This resolution includes “overscan” which means that the edges of the display will be cutoff. You may adjust accordingly to your devices best output resolution.

  • Page 15: Playing 3D Through Hdmi

    Playing 3D through HDMI Video 3D Video can be played through the 3D compliant HDMI port. First con- nect your 3D output device (for example Blu-Ray player) to the projector. Step 1: 3D Menu In the Main Menu Select “HDMI” option Step 2: To Enable 3D mode there are two options: (1) Press the “3D”...

  • Page 16: Connecting To A Computer Vga

    Connecting to a Computer via VGA Step 1: Connect one end of the VGA Cable to your computer’s VGA Port. Step 2: Connect the other end of the VGA Cable to your P700 Pro’s VGA port. Step 3: In the Main Menu Select the “PC-VGA” Icon. Select “VGA”...
  • Page 17 Connecting to a Computer Cont. Step 4: Enabling VGA output on your Computer – To enable VGA output on your computer most com- puters require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable VGA output. Below are standard instructions for a Windows 10 computer –...

  • Page 18: Connecting To Composite Video

    Connecting to Composite Video Step 1: Connect the 3.5mm Composite A/V Cable to the back of the P700 Pro. Step 2: Connect the composite end of the AV Cable (Red, White,Yellow) to your own male AV cable.
  • Page 19 Connecting to Composite Video Cont. Step 3: In the Main Menu Select “Video-RCA” Icon Step 4: Turn on your multimedia device. *Some smartphones require video out capabilities to be displayed with the P700 Pro. Check with your phone manufacturer for details.

  • Page 20: Loading External Content

    Loading External Content The P700 Pro can read files directly from both a Micro SD Card and USB Drive. Supported file types include: MP3 / WMA / OGG / WAV / JPG AVI / MKV / BMP / GIF / XLS PPT / DOC / PDF / TXT (up to 32 GB) (up to 32 GB)
  • Page 21 Loading External Content Cont. How to insert your Micro SD Card • Slide in your microSD card into the mi- croSD card slot on the side of the P700 Pro (as shown in picture). • Gently slide the SD card until it clicks into place.
  • Page 22 Loading External Content Cont. Playback Menu • Once your microSD Card or USB Andy’s First Birthday.avi Drive is inserted into the projector, the Patrcia’s Graduation.avi microSD Card or USB Drive Storage Family Outing 2016.avi Menu will load automatically. Video can Grandpa’s 80th Birthday.avi be played by clicking the video and selecting the “Video Player”.

  • Page 23: Video Player Menu

    Video Player Menu Opening a file: • Select the “Playback” icon (Fig. 2.1) • To Search for Videos highlight the video-camera icon on the left side of the “Streaming” submenu (Fig. 2.2). Otherwise scroll through the files by using the up/down key and highlight desired file. Fig.
  • Page 24 Video Player Menu While Playing Videos While playing videos the volume is adjustable. To adjust volume, press the volume buttons on the remote or access the submenu and adjust through the volume icon. Further controls are available in the video player submenu - which is accessed through the “OK”...

  • Page 25: Playing Videos

    Video Player Sub-Menu Playing Videos Video Submenu: While the video is playing, bring up the “submenu” by clicking “OK” or double clicking on the video. The video submenu allows the following functions i. Next / Previous Video – Play the next / previous video ii.
  • Page 26 Video Player Menu How do I loop a video? How do I turn on the subtitles (if available)? Press “OK” when the video is playing to bring up the submenu Navigate using either remote or onboard buttons to the video configu- ration Select it and press on “Video Sub- titles”...

  • Page 27: Playing 3D Videos

    Playing 3D Videos 3D videos are videos compatible with Active Shutter 3D devices. These videos are typically labelled “3D”. 3D videos are typically played in right/left or top/bottom content, so on a non-3D device the video will appear to be split in half.
  • Page 28 How to Play 3D Videos Playing 3D Videos To play a 3D video, load the 3D video through the “Playback” submenu. As the video begins to play, select the “Source” button on the keypad or remote control to convert the content into 3D mode. The video will now appear “fuzzy”. This means the video is now in 3D mode.
  • Page 29 How to Play 3D Videos Cont. Activating 3D Mode After selecting the “Source” button, you can choose either “left or right format” or “up or down format” depending on how your 3D content looks. *Active shutter glasses are glasses compatible with Active Shutter TVs. They are available for purchase online and through the P700 Pro “Accessories”...

  • Page 30: Viewing Pictures

    Viewing Pictures • To view pictures, access the content via the “Playback” submenu (See section 4). • To sort for Pictures, highlight the Camera/Photo icon on the left. Otherwise, scroll through the files by using the up/down key and highlight the desired file.
  • Page 31 Photo Sub-Menu Viewing Pictures: The Photo Sub-Menu can be accessed by pressing “OK” during picture slide- show playback.To exit the Photo Sub-Menu press the “Back” button. To navigate the playback menu, use the directional buttons on the navigation pad or remote to highlight the option you wish to choose.
  • Page 32 Photo Sub-Menu Cont. Viewing Pictures: After selecting a picture, bring up the photo submenu by clicking on “OK” or double clicking the picture. The photo submenu allows the following functions: i. Next / Previous picture ii. Play / Stop iii. Zoom in / Zoom out iv.
  • Page 33 Photo Slideshow FAQ How do I play a slideshow? How do I manually control the slideshow? Click on the Playback menu. After selecting the photo you wish to Navigate to the folder that contains be displayed, you can press “Play” to the pictures you wish to view in the start the slideshow (as outlined in the slideshow.

  • Page 34: Viewing 3D Pictures

    Viewing 3D Pictures • To view pictures, select a picture via the “Playback” submenu. • While the Picture is playing, click the “Source” button and turn on the 3D mode depending on which format you have.

  • Page 35: Viewing Productivity Docs

    Viewing Productivity Documents Microsoft Office and Adobe PDF Documents • Microsoft Office and Adobe PDF Documents can be viewed with the document viewer. • To access the document viewer, select “Productivity” from the Main Menu. Main Menu Screen...
  • Page 36 Viewing Productivity Documents Cont. Choosing Documents to View • After selecting “Productivity” from the Main Menu, select “Office Viewer” to view documents. • In the Office Viewer application, select “Folders” or “Cloud Storage” to view the files you wish to see. Office Viewer Application •...
  • Page 37 Viewing Productivity Documents Cont. Step 1: Open “Office Viewer” Step 2: Select Source...
  • Page 38 Viewing Productivity Documents Cont. Step 3: Highlight the Productivity File and click “OK” Step 4: The file should display automatically Note: For a more comprehensive user guide please visit our FAQ section or search online for Kingsoft WPS Office Viewer user guide Need help with the document viewer? Please e-mail us at pro_support@aaxatech.com...
  • Page 39 Viewing Productivity Documents E-mail Client Calculator The onboard e-mail client allows users A basic function calculator (mouse is to save their email account and view required to operate) emails. Typical configuration settings can usually be found through your web- hosts FAQ section.

  • Page 40: Smartphone Mirroring

    Smartphone Mirroring The P700 Pro employs a “HappyCast” smartphone mirroring system that is compatible with both Apple Airplay as well as Android systems. Mirroring with an iPhone or Apple Device: • Select the “Productivity” icon (Fig. 2.3) • Select the “Mirroring” option (Fig. 2.4) •...
  • Page 41 iPhone Smartphone Mirroring Turning on Airplay • Swipe up on your iPhone and to access the Airplay option as shown above • Select Airplay and turn it on, it will show you the Happy Cast connecition, just select it and make sure the mirror- ing is switched on Projector •...
  • Page 42 Android Smartphone Mirroring Downloading HappyCast App • Please vist this URL: http://www.aaxat- ech.com/happycast.apk on your android phone to download Happy Cast. • After finishing installing on the phone please open the Happy Cast App and connect to the projector’s Happy Cast connection.

  • Page 43: Connecting To Wi-Fi

    Connecting to Wi-Fi Connecting to Wi-Fi: • Select the “Settings” icon (Fig. 2.5) • Select the “Network Settings” option and navigate to your Wi-Fi network and click on it to connect. • A window will appear and ask for a password, please type it in and when finished press “Connect”...
  • Page 44 Connecting to Wi-Fi FAQ Connecting to Wi-Fi: The Projector features a Wi-Fi chipset capable of 802.11 b/g/n connection. This means it is compatible with most Wi-Fi routers. To connect to a Wi-Fi router follow the following steps: Step 1: Access the Network Settings Submenu: Settings -> Network Settings Step 2: Turn Wi-Fi radio to “On”...

  • Page 45: Streaming Applications

    Streaming Applications Streaming Application • To access the Streaming Application, select “Streaming” from the Main Menu. • The P700 Pro enables video streaming from selected applications. Please visit the product website for additional information and firmware updates. Main Menu Screen Streaming Screen •...
  • Page 46 Streaming Applications Cont. Troubleshooting Application Hangs or Freezes • Try clearing the cache (see Settings - Application Manager) Update Required • If an update is required, you may be able to obtain it from the product website (through “Browser” in the Main Menu) Poor Video Playback •...

  • Page 47: Connecting To Bluetooth

    Connecting to Bluetooth Devices Connecting to Bluetooth: • Select the “Settings” icon (Fig. 2.7) • Select the “Bluetooth Settings” option and navigate to your Bluetooth Device and click on it to connect. (Fig. 2.8) • The projector features a Bluetooth radio (BT). The Bluetooth radio is designed to connect Bluetooth enabled devices, typically either a Bluetooth Mouse or Bluetooth Speaker.
  • Page 48 Bluetooth Mouse & Speaker To connect a Bluetooth Mouse/Speaker Step 1: Access the Bluetooth Menu (Settings –> Bluetooth) Step 2: Turn on Bluetooth functionality Step 3: Turn on your Bluetooth device and enable discovery. This varies with each device. Some devices require the power switch to be turned “ON”.
  • Page 49 Troubleshooting • Some BT mice will “go to sleep.” Double check the connection screen to see if the BT mouse is still connected. If not, try to double click on the mouse or reconnect the device. • If the BT mouse does not “wake up” after going to sleep, toggle BT mouse on/ off.

  • Page 50: Chapter 3: Settings Menu

    Chapter 3 Settings Menu The Settings Menu can be accessed by selecting “Settings”on the main menu •Application Manager Within the Settings Menu there are •Network Settings eight submenus that allow you to •Bluetooth Settings customize your P700 Pro. •System Settings •System Update •Projector Settings •About •Language Settings...

  • Page 51: Application Manager

    Application Manager Application Setting • The Application Manager allows the management of onboard applications. The primary purpose of the Application Manager is to reset / remove existing apps 1. Clearing the App Data / Cache – Clearing the App cache is sometimes necessary to remove corrupted information and reset old logins 2.

  • Page 52: Bluetooth & Networks

    Network & Bluetooth Settings Network Settings Bluetooth Settings • Please see Connecting to Wi-Fi • For Bluetooth Connectivity please section Page 40 see the Bluetooth (BT) page • Network status- Shows the info • Bluetooth Enable On/Off • DeviceName- Your Projector’s and status of your Wi-Fi connec- Bluetooth name tion...

  • Page 53: System Settings

    System Settings All settings can be found through System Settings • Desktop Settings • Application Manage • Net and Location Settings • Bluetooth Settings • Language input Settings • Date time Settings • System Update • About...

  • Page 54: System Update & Language

    System Update & Language Settings System Update Language Settings • Update your projector through a • Selecting a Language: The projec- Wi-Fi connection tor supports 10 different language System information settings. These languages include • Shows the system version, MAC English, Spanish, German, French, address, and the memory informa- Italian.

  • Page 55: Projector Settings

    Projector Settings • Color Temperature – This submenu allows to adjust the screen color tem- perature • Brightness – There are 3x brightness settings available Eco, Standard, and Bright. NOTE: Bright mode should only be used in low temperature environ- ments with adequate clearance of exhaust / intake vents.

  • Page 56: About

    About Models • Shows the projector model name System version • Shows the Android OS version Software Version • Shows the current software version.

  • Page 57: Other Applications

    Other Applications There may exist different firmware versions to support different appli- cations. Please e-mail AAXA Technologies or check our FAQ section for more information. Need help? Please e-mail us at pro_support@aaxatech.com...

  • Page 58: Keystone

    Keystone Adjustments What is Keystoning? “Keystoning” occurs when a projector is aligned non-perpendicularly to a screen, or when the projection screen has an angled surface. The image that results from one of these misalignments will look trapezoidal rather than square. Digital Keystone Adjustments By adding a special, selectable algorithm to the scaling, some new projectors are able to alter the image before it reaches the projection lens.
  • Page 59 Keystone Adjustments FAQ How to Correct Keystone • If the image looks trapezoidal with the base larger (as pictured right), go to “Projector Settings” and click “Key- stone Correction”. On the “Keystone Correction” screen, press the left but- ton on the remote or on the directional pad on the top of the P700 Pro until the keystone effect corrects and the picture turns into a square projection.

  • Page 60: Chapter 4: Technical Details

    Chapter 4 Technical Details Troubleshooting IMAGE IS BLURRED Possible Causes Solution The Projector is not in focus Adjust the focus with the focus adjustment dial until the image comes into focus The Projector is offset from plane / angle of Move the projector so that it is both 180 degrees operation and on an even plane with the screen.
  • Page 61 Technical Details Cont. Troubleshooting THE PROJECTOR DOES NOT TURN ON Possible Causes Solution There is no power Check to ensure the power outlet source is good. Check the power adapter to ensure a proper connection with the wall outlet as well as the projector.

  • Page 62: Specifications

    Specifications Brightness: 650 Lumens Max Resolution: 1920x1080 (1080P) Native Resolution: 1280x800 (WXGA) Contrast Ratio: 2000:1 Aspect Ratio: 16:9 Projection Lens: Manual Focus Image Size: 10~150 inches Lamp: Triple RGB LEDs with Vibrant Color Technology Life 20,000hrs Video in: Composite A/V VGA(mini-VGA) HDMI Audio Output: 3.5 mm audio jack SD Card: MicroSD Card Slot (32GB maximum) USB:...

  • Page 63: Notes

    Notes...
  • Page 64 Please direct all customer service inquiries to: AAXA Technologies, Inc. 1541 Parkway Loop Suite F Tustin, CA 92780 (714) 957-1999 info@aaxatech.com...
