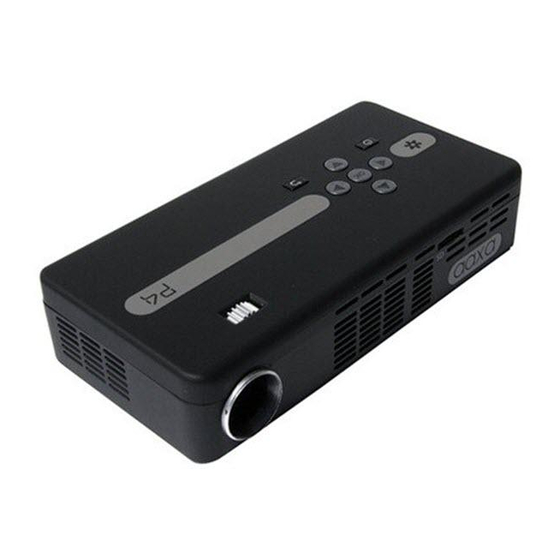

- Page 1 TECHNOLOGIES P4 Wi-Fi Pico Projector User Guide...
- Page 2 Caution! WARNING: Please use this product as instructed. Misuse may cause injury or death. DO NOT use while driving Caution for Battery Use • Do not pierce or puncture the battery with sharp objects DO NOT expose to water or wet •...
- Page 3 The AAXA P4 Wi-Fi runs the Windows CE operating system. All Standard Functions can be found on the Home Screen and can be manipulated with the keypad on the projector. Because we dislike locked de- vices, rather than locking the Windows CE Desktop we have decided to leave this function unlocked. This allows users to enjoy the full capabilities of the Windows CE operating system.
-
Page 4: Table Of Contents
Table of Contents Chapter 1: P4 Wi-Fi at a glance Computer Data Transfer Main Unit Front/Back Saving to USB/SD card Remote & Keypad Connecting a Micro SD Card Accessories Connecting to a USB drive Chapter 2: Getting Started Chapter 3: Menu Screens... -
Page 5: Chapter 1: P4 Wi-Fi At A Glance
Chapter 1 P4 Wi-Fi at a Glance Main Unit Front/Back/Side Back Button Power Button Confirm Selection Reset Hole Micro SD Card Port Focus Adjustment Projection Lens Directional Pad Charge Indicator Mini USB Port Full USB Port Power Input VGA Input... -
Page 6: Remote & Keypad
Exit/Back Both the keypad and remote can be used to navigate through the menus. The Main Menu Navigation on the remote functions exactly the same as the directional pad on the P4 Wi-Fi unit. NOTICE: Pressing power on the remote will only put the projector in STANDBY... -
Page 7: Accessories
Accessories Tripod Remote Keyboard/Mouse Mini USB to Power Adapter VGA Cable A/V Cable USB Adapter *Under various circumstances, the actual accessories may be different from those shown in the pictures above. -
Page 8: Chapter 2: Getting Started
The optical engine should power off and the fan should stop spinning. • Note. Pressing the power button on the remote puts the projector in standby mode. It will NOT turn off the projector. Note: The P4 Wi-Fi Projector battery does not charge when it is in operation. -
Page 9: Focus Adjustment / Throw
Focus Adjusment / Throw Distance Focus Adjustment Spin the focus wheel left of right until the image becomes clear. The recommended focus distance for this projector is 12” to infinity. Throw Distance Chart Distance inch (“) Diagonal Inch (“) 12.6 15.8 18.9 38.9... - Page 10 External Inputs/Outputs Micro SD Card 802.11 Headphone/speaker Wi-Fi Keyboard Composite Cable USB Stick Mouse Laptop Desktop...
-
Page 11: Connecting To A Computer
Connecting to a Computer Step 1: Connect the large end of the to your computer’s VGA Cord VGA Adapter Step 2: to your P4’s Connect the small end of the VGA Adapter VGA Cord Step 3: In the Main Menu Then Select “Source”... - Page 12 Connecting to a Computer Cont. Step 4: Enabling VGA output on your Computer – To enable VGA output on your computer most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable VGA output. Below are standard instructions for a Windows XP computer –...
-
Page 13: Connecting To Composite Video
Connecting to Composite Video Step 1: Connect one end of the to your P4’s Composite Cord A/V Adapter Step 2: to your devices Connect opposite end of Composite Cord Composite Cord... - Page 14 Step 4: Turn on your multimedia device. Connectivity with multimedia devices The P4 Wi-Fi can connect to many media devices including: iPod, iPhone, iPad, VHS players, DVD players, smart phones, cameras, video game consoles and other peripherals with ease. *Apps on smart phones require video out capabilities to be displayed with the P4.
-
Page 15: Headphones
Connecting Speakers/Headphones Step 1: Connect your speaker to your P4’s or headphones 3.5 mm cord Speaker Adapter Step 2: Ensure the power and volume on your speaker or headphones is turned on Step 3: Place headphones/earphones in/over ears Caution for Earphone (Earplug) Use •... -
Page 16: Connecting To Mouse/Keyboard
Connecting Keyboard/Mouse Step 1: Remove the USB Adapter from the back of your Key- board /mouse combo Step 2: Connect your key- to your P4’s board/mouse combo’s USB Adapter USB Input Step 3: Move the ON/Off Switch on the side of the combo. Step 4: Press the “red”... - Page 17 Connecting Keyboard/Mouse The Keyboard/Mouse that is included helps give you full functionality of the P4 Wi-Fi. A USB mouse can be used to select most options on the P4 Wi-Fi. • To move the cursor, place 1 finger on the pad located on the right and move your finger in the direction you wish to move the mouse.
-
Page 18: Connecting To Wi-Fi
Connecting to Wi-Fi Upon start up you will be presented with a screen that will list your available discovered networks. You will be prompted to choose a preferred network. Step 1: Find your preferred network and double click it with your keyboard. Step 2: Click on “Connect”... - Page 19 Manually Connecting to Wi-Fi There is also the option to connect to an access point manually if you aready know the configration such as IP, subnet mask, and default gateway. You will need to enter windows by clicking Desktop fro the home menu Step 1: Enter Windows CE by clicking Desktop from the home menu...
-
Page 20: Computer Data Transfer
USB Adapter USB Port Connecting your P4 Wi-Fi to your computer for data transfer allows you to add files to store onto the onboard memory. This will allow you to play files with your P4 Wi-Fi as a standalone device. - Page 21 Computer Data Transfer Only Step 3: Turn On the P4 Wi-Fi and open the “Open to view files” that autoplays. NAND hardrive Step 4: Place files in appropriate folders Image files go here Video files go here Music files go here Note.
- Page 22 How to Save Files to your Sd or USB In order to correctly display your media files SD or USB, the files must be placed in the correct folder. Step 1: Step 2: Create folders “movie”, “music”, and Place files in appropriate folders “picture”...
- Page 23 Micro SD Card How to insert your Micro SD Card • Slide in your SD card into the SD card slot on the front of the P4. (as shown in picture) • Gently slide the SD card until it *clicks* into place. How to access your Micro SD Card •...
- Page 24 USB OTG(On-the-Go) How to insert your USB Drive • Slide your USB Drive into USB slot. (as shown in picture) • Gently slide the drive until it cannot go in any further. How to access your USB Drive • Once your USB Drive has been inserted, you can navigate through the main menu to select what you want to view under each sub menu.(Videos,...
-
Page 25: Chapter 3: Menu Screens
Chapter 3 Menu Screens Main Menu The P4 Wi-Fi features a built in PMP (Portable Media Player) function. This function allows the projector to play videos, pictures, music files, and text. To access the main menu simply turn on the projector. -
Page 26: Video Player Menu
Video Player Menu Rewind / Back Pause Play/Stop Fast-Foward / Next Open File Volume Down Volume Up Opening a file: • Choose “Open File” option • Select device file is stored on • Select file from list... - Page 27 Video Player Menu Playing Videos To play/pause a video, press the play button in the middle of the keypad or remote control To rewind, press and hold the left arrow button To fast-forward, press and hold the right arrow button To jump forward to the next vide, press the right arrow button To jump back to a prior video, press the left arrow button To adjust the volume, press the vol+ (on the remote) to increase and vol- (on the...
-
Page 28: Photo Viewer Menu
Photo Menu Close Menu Previous Next Run Slideshow -1 sec to slideshow +1 sec to slideshow Open File Opening a file: • Choose “Open File” option • Select device file is stored on • Select file from list... - Page 29 Photo Menu Viewing Pictures The P4 Wi-Fi Pico Projector allows you to view pictures individually or in a slide- show. To view individual photos, select the file you want to view in the file menu for the particular storage device on which the image file is stored. You can press the left and right arrow buttons on the touch pad or remote to flip through the pictures you have in the present folder.
-
Page 30: Music Player Menu
Music Player Menu Previous Play Stop Next Open File Repeat Shuffle Playlist Volume up Volume down Opening a file: • Choose “Open File” option • Select device file is stored on • Select file from list... - Page 31 Music Player Menu Listening to music To play/pause a song, press the play button in the middle of the keypad or remote control To rewind, press and hold the left arrow button To fast-forward, press and hold the right arrow button To jump forward to the next vide, press the right arrow button To jump back to a prior video, press the left arrow button To adjust the volume, press the vol+ ( on the remote) to increase and vol- ( on...
-
Page 32: Productivity Menu
From this menu you are able to access the Win- dows Microsoft Suite that is embedded into the P4 Wi-Fi. You can access and edit various files as long as they are available through SD, USB, or the onboard memory. - Page 33 Softmaker Serial Softmaker is an embedded software that allows the P4 Wi-Fi to become a stand alone editor for on-the-go changes to your presentations. You can find your Softmaker Serial number on the back of this manual. Entering the Softmaker Serial will register the devices software to you and allow you to access the software features past the 30-Day trial.
- Page 34 The Windows CE Desktop allows users to load, install, and manipulate any third party applications that are supported by Windows CE including word processing, spreadsheets, games, and other applications. A Keyboard and Mouse is REQUIRED to use the Windows CE Desktop NOTE: To Exit Desktop mode, double click the button located on the desktop! Technical Support for the Desktop is not available.
-
Page 35: Setup Menu
Setup Menu The Settings Menu can be accessed by selecting “Settings”on the main menu Sound & Display Volume Settings • Allows the raising or lowering of volume Picture Adjustment • Brightness, backlight and color temperature op- tions IMAGE FLIP • Flips image upside down (for rear projection) Date and Time •... -
Page 36: Chapter 4: Technical Details
Be sure to setup the computer to enable a video signal output. On some laptops this is done by pressing and holding Function F5 key. If using the P4 Wi-Fi as an external monitor on Windows based systems, this can be done by selecting “extend my desktop to this monitor”. - Page 37 Technical Details Troubleshooting THE PROJECTOR DOES NOT TURN ON Possible Causes Solution There is no power Check to ensure the power outlet or battery source is good. check the power adapter to ensure a proper connection with the wall outlet as well as the proejctor.
- Page 38 Technical Details Troubleshooting Wi-Fi Wi-Fi Does Not Connect Possible Causes Solution Router is not assigning proper authentication Check to see that your routers are on. Many times when devices need to connect a router reset might be needed. Pull the power cord on your router and try reconnecting when the router has stabilized Router is not accepting encryption key...
-
Page 39: Specifications
Specifications Brightness 100 Lumens Native Resolution WVGA(858x480) Maximum Resolution WXGA(1280x800) Contrast Ratio 2000:1 Projectoin Lens: Manual Focus Image Size: 10~80 inches Lamp: 20,000 hour RGB Triple LEDs Video in: Composite A/V VGA(mini-VGA) Wireless: 802.11 b/g Audio Output: 1.0 W stereo speakers 3.5 mm audio jack SD Card SD-HC Card Slot... - Page 40 Please direct all customer service inquiries to: AAXA Technologies, Inc. 103A East Alton Santa Ana, CA 92707 (714) 957-1999 info@aaxatech.com...
