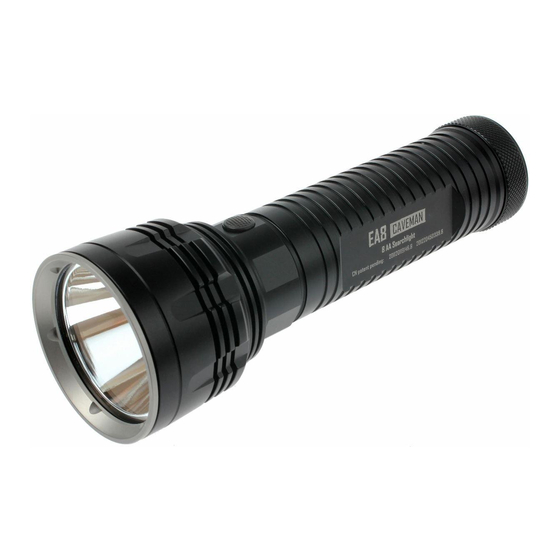

Nitecore EA8 User Manual

ALL-ROUND Flashlight Expert
Features
Utilizes a CREE XM-L U2 LED
·
Maximum output of up to 900 lumens
·
Integrated "Precision Digital Optics Technology" provides extreme
·
reflector performance
Boasts a peak beam intensity of 60,000cd and a throw distance of up to
·
490 meters
Innovative single button two-stage switch offers a user-friendly interface
·
(patented)
Eight rapidly switchable brightness modes to select from
·
High efficiency circuit board provides up to 800 hours runtime
·
Integrated power indicator light displays remaining battery power
·
(patented)
Power indicator's secondary function displays battery voltage (accurate
·
to 0.1V)
Reverse polarity protection prevents damage due to incorrectly inserted
·
batteries
Stainless steel retaining ring protects the core components from
·
damage
Toughened ultra-clear mineral glass with anti-reflective coating
·
Constructed from aero grade aluminum alloy
·
Sturdy HAIII military grade hard-anodized
·
Waterproof in accordance with IPX-8 (two meters submersible)
·
Impact resistant to 1.5 meters
·
Tail stand capability
·
Dimensions
Length: 183mm (7.17")
Head diameter: 60 mm (2.36")
Tube diameter: 41.8mm (1.65")
Weight 302g (10.65oz)(without battery)
Battery Options
Primary AA battery
Rechargeable AA battery
Primary AA Lithium battery
Primary LiFePO4 battery
Rechargeable Li-ion battery
Output & Runtime
TURBO HIGH
900 590
LUMENS LUMENS
2 3 45
h h min
490m
60000cd
1.5m
IPX-8, 2m
NOTICE
The above data has been measured in accordance with the international
flashlight testing standards ANSI/NEMA FL1 using 8 x 1.2V 2400mAh AA
batteries under laboratory conditions. The data may vary slightly during
real-world use due to battery type, individual usage habits and environmental
factors.
NITECORE (SYSMAX) is a member of PLA
to develop the ANSI FL1 standard of measurement. Product testing data
is in accordance with these internationally recognized scientific
standards.
Accessories
Quality holster, lanyard, spare O-ring
SIZE Nominal voltage Usability
AA 1.5V Y (Recommended)
AA 1.2V Y (Recommended)
L91 1.5V Y
14500 3.2V N (Banned)
14500 3.7V N (Banned)
MID LOW LOWER
180 50 2
LUMENS LUMENS LUMENS
14
60 800
h h h
(Beam Distance)
(Peak Beam Intensity)
(Impact Resistant)
(Waterproof AND Submersible)
TO, participating in and helping
Thanks for purchasing NITECORE!
® EA8

Battery installation

1. Insert batteries with the positive (+) and negative (-) ends
corresponding to the diagram on the inside of the battery
compartment.
2. Tighten the tail cap by aligning the two gold pins on the inside of the
tail cap with the corresponding holes on the flashlight body and rotate
clockwise.
Tips
Inserting batteries in a dark environment: Two of the four battery slots in
the EA8's battery compartment feature grooves indicating that batteries
should be inserted with the negative (-) ends facing forward, while the two
slots with no grooves require the batteries to be inserted with the positive
(+) ends facing forward. In this way, batteries can be inserted correctly
through tactile feedback alone.
After loading the batteries, the power indicator light will blink to indicate
the battery voltage. Please refer to the "Power Tips" section of this
manual for details.
WARNING
1. Insert batteries using the image on the inside of the battery
compartment as a reference.
2. Do not mix rechargeable and non-rechargeable batteries.
3. Do not mix batteries of different types/brands.
General Operation
The EA8 utilizes a 2-stage switch similar to a camera shutter button. The
light's numerous functions are selected according to the depth the switch
is pressed. The EA8 has two modes: Daily mode and Search / Turbo
mode.
Operating In Daily Mode
1. With the light turned off, press the switch partway down and release
within a second to enter daily mode.
2. Daily mode contains four brightness levels: ultra-low, low, medium, and
high. Pressing the switch partway down in quick succession will cycle
through these modes. Pressing the switch partway down and holding
for more than one second when in daily mode will enter into turbo
mode. See Turbo / Search mode instructions below.
3. The light is turned off (put into standby mode) by pressing the button
all the way down and releasing within a second. This will also
memorize the last daily mode used.
User Manual
