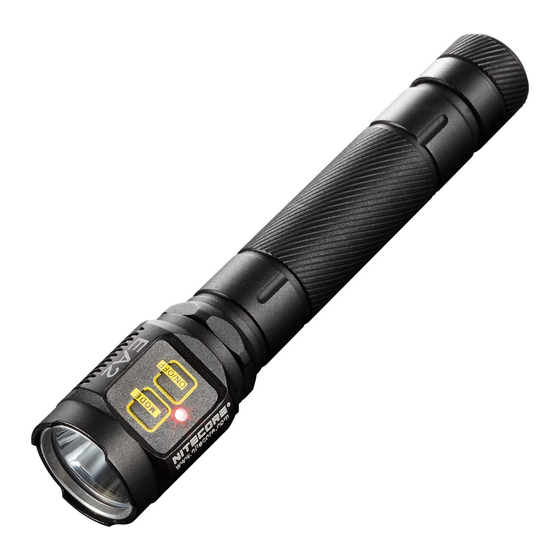

Nitecore EA2 User Manual

ALL-ROUND Flashlight Expert
Features
• CREE XP-G2 (R5) LED
• Maximum output of up to 320 lumens
• High efficiency constant current circuit enables maximum run time of up to
150 hours
• 5 brightness levels
• Momentary push-on strobe and SOS modes
• Dual electronic switches ensure very easy user interface
• Secondary red light mode (0.2 lumens)
• Power indicator light also serves as battery voltage indicator (accurate to
0.1V)
• Power indicator light serves as standby indicator light when powered down
• Toughened ultra-clear mineral glass with dual-side anti-reflective coating
• Elaborate alloy reflector is purpose-designed for exceptionally long throw
• Constructed from aero grade aluminum alloy
• HAIII military grade hard-anodized
• Stainless steel bezel retaining ring protects core components from damage
• Detachable two-way anti-rolling clip
• Waterproof in accordance with IPX-8 (2 meters submersible)
• Tail stand function
Dimensions
Length: 131mm (5.16")
Head Diameter: 25.4mm (1")
Tail Diameter: 19mm (0.75")
Weight: 64g (2.26oz)(without battery)
Accessories
Quality holster, lanyard, spare O-ring
Battery Options
Primary AA battery
Rechargeable AA battery
Primary AA Lithium battery
Primary FeLiPO4 battery
Rechargeable Li-ion battery
Brightness & Runtime
TURBO HIGH
320 220
LUMENS LUMENS
— 2
h
167m
7000cd
1.5m
IPX-8, 2m
NOTICE
The stated data has been measured in accordance with the international
flashlight testing standards ANSI/NEMA FL1, using high quality AA Ni-Mh
rechargeable batteries (1.2V, 2500mAH) under laboratory conditions. The
data may vary in real-world use due to different battery usage or
environmental conditions.
SIZE Nominal voltage Compatible
AA 1.5V Y (Recommended)
AA 1.2V Y (Recommended)
L91 1.5V Y (Recommended)
14500 3.2V N (Banned)
14500 3.7V N (Banned)
MID LOW MICRO
80 18 3
LUMENS LUMENS LUMENS
8 30 150
h h
(Beam Distance)
(Peak Beam Intensity)
(Impact Resistant)
(Waterproof AND Submersible)
Thanks for purchasing NITECORE!
®
EA2
Operation instructions
Battery installation
1. Unscrew (counterclockwise) and remove the tail cap.
2. Insert two AA batteries with the positive pole of the batteries pointing
toward the head.
3. Replace the tail cap and fasten tightly.
WARNING
Always ensure batteries are inserted with the positive (+) end pointing
toward the flashlight head. If incorrectly installed, the flashlight will not
work.
Switching ON/OFF
To switch ON: Press the "ON/OFF" button once to turn the light on.
To switch OFF: Press the "ON/OFF" button once again to turn the light
off.
Note: When EA2 is off, the power indicator (red light) will flash once
every 3 seconds to act as a locator. In this mode, the EA2 consumes a
very little amount of current (about 0.15mA) to maintain working of the
built-in MCU and power indicator. In this mode, two AA batteries will last
about 2 years.
Brightness Selection
h
With the flashlight switched on, each time you press the "MODE" button,
it will go through the different preset brightness levels as follows:
ultra-low mode→low mode→medium mode→high mode and repeat. In
these modes, the flashlight has memory function. It can memorize the
selected brightness after turning the light off, and the next time you turn
on the light, it will automatically resume the previously selected mode.
Entering Turbo Mode
With the flashlight switched on, press the "MODE" button for more than 1
Second. EA2 will enter Turbo mode. Press the MODE button again, and
the flashlight will retreat from turbo brightness and resume to previous
brightness. In Turbo mode the EA2 circuit will deliver maximum current to
make brightness as high as possible.
Note:
1. After 3 minutes working in Turbo mode, the flashlight will automatically
restore to the previously selected brightness level to safeguard against
overheating.
