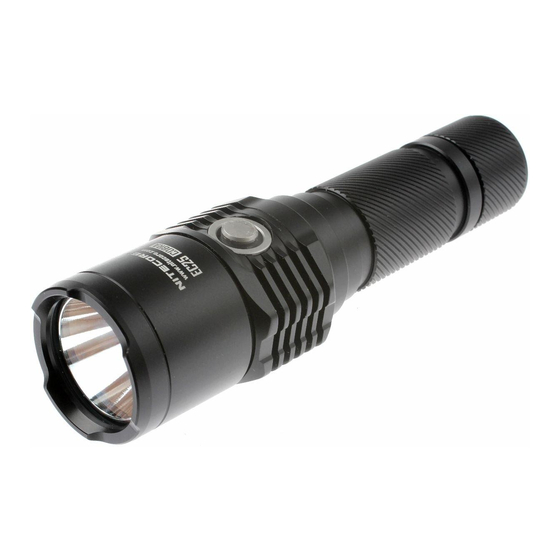

Nitecore EC25 User Manual

ALL-ROUND Flashlight Expert
Features
Utilizes a CREE XM-L U2 LED
·
Maximum output of up to 860 lumens
·
Radiator fins integrated into the head design provide better cooling for
·
exceptional overall performance
Integrated "Precision Digital Optics Technology" provides extreme
·
reflector performance
Boasts a peak beam intensity of 12,500cd and a throw distance of up
·
to 222 meters
Innovative single button two-stage switch offers a user-friendly
·
interface (patented)
Eight rapidly switchable brightness modes to select from
·
High efficiency circuit board provides up to 25 hours runtime
·
Integrated power indicator light displays remaining battery power
·
(patented)
Power indicator's secondary function displays battery voltage (accurate
·
to 0.1V)
Reverse polarity protection prevents damage due to incorrectly
·
inserted batteries
Stainless steel titanium-plated two-way clip
·
Toughened ultra-clear mineral glass with anti-reflective coating
·
Constructed from aero grade aluminum alloy
·
Sturdy HAIII military grade hard-anodized
·
Waterproof in accordance with IPX-8 (two meters submersible)
·
Impact resistant to 1.5 meters
·
Tail stand capability
·
Dimensions
Length: 128mm (5")
Head diameter: 34mm (1.34")
Tube diameter: 25.4mm (1")
Weight 122g (4.3oz)(without battery)
Accessories
Quality holster, removable clip, lanyard, spare O-ring
Battery Options
Primary Lithium battery
18650 Rechargeable Li-ion battery
Rechargeable Li-ion battery RCR123
Output & Runtime
TURBO HIGH
860 540
LUMENS LUMENS
1 30 4
2
h min h
1 30 1 45
h min h min
222m
12500cd
(Peak Beam Intensity)
1.5m
(Impact Resistant)
IPX-8, 2m
(Waterproof AND Submersible)
NOTICE
Stated data has been measured according to the international flashlight testing
standards ANSI/NEMA FL1 using a quality Nitecore 18650 (3.7V 2600mAh)
battery or two Nitecore CR123 (3V 1550mAh) batteries under laboratory
conditions. The data may vary due to individual usage habits and environmental
conditions.
NITECORE (SYSMAX) is a member of PLA
to develop the ANSI FL1 standard of measurement. Product testing data
is in accordance with these internationally recognized scientific
standards.
SIZE Nominal voltage Compatible
CR123 3V Y (Recommended)
18650 3.7V Y (Recommended)
3.7V Y
MID LOW LOWER
285 120 60
LUMENS LUMENS LUMENS
15 10 30
25
h min h min h
4 9 17 30
h h h min
(Beam Distance)
TO, participating in and helping
Thanks for purchasing NITECORE!
®
EC25

Battery installation

1. Unscrew the tail cap in a counter-clockwise direction.
2. Insert one 18650 battery or two CR123 batteries with the positive pole
pointing forward (toward the light head).
Note: After loading the batteries, the power indicator light will blink to
indicate the battery voltage. Please refer to the "Power Tips"
section of this manual for details.
WARNING
Ensure batteries are inserted with the positive (+) end pointing to the
head. The EC25 will not operate with incorrect installation.
General Operation
The EC25 utilizes a 2-stage switch similar to a camera shutter button.
The light's numerous functions are selected according to the depth the
switch is pressed. The EC25 has two modes: Daily mode and Search /
Turbo mode.
Operating In Daily Mode
1. With the light turned off, press the switch partway down and release
within a second to enter daily mode.
2. Daily mode contains four brightness levels: ultra-low, low, medium, and
high. Pressing the switch partway down in quick succession will cycle
through these modes. Pressing the switch partway down and holding
for more than one second when in daily mode will enter into turbo
mode. See Turbo / Search mode instructions below.
3. The light is turned off (put into standby mode) by pressing the button
all the way down and releasing within a second. This will also
memorize the last daily mode used.
4. Daily mode has a momentary function which allows the light to be
turned on only when the switch is held. With the light turned off, press
the switch partway down and hold to activate daily mode's momentary
function. The light will turn off the moment the switch is released.
Operating in Search / Turbo Mode
1. With the light turned off, press the switch all the way down and release
within one second to enter turbo mode. To cycle between high and
turbo modes press the button partway down while in turbo mode.
2. To turn the light off when in turbo mode, once again press the button all
the way down and release within one second.
3. Turbo / search mode has a momentary function which allows the light
to be turned on only when the switch is held. Pressing the switch all
the way down and holding will activate Turbo / Search mode's
momentary function. The light will turn off the moment the switch is
released.
NB: For user safety and to prevent overheating / failure, the EC25 will
automatically switch to high mode after three minutes of use in Turbo
mode. Half press and hold the switch to re-activate Turbo.
