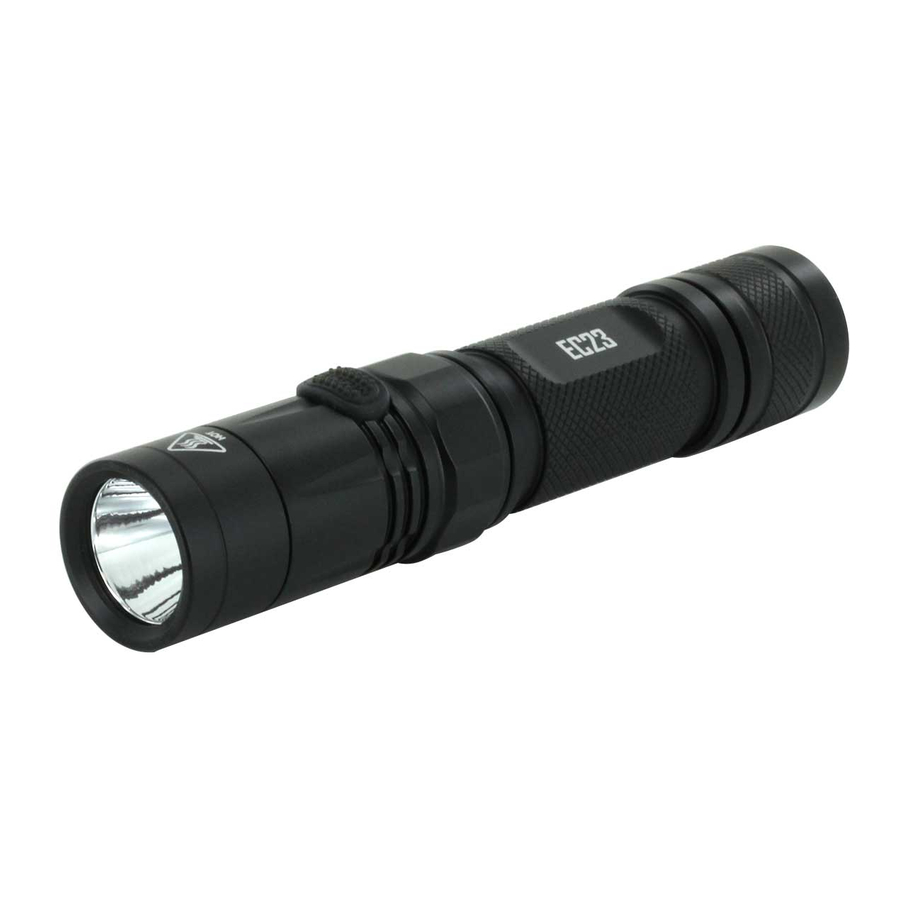

Nitecore EC23 - 1800 lumens Flashlight Manual

Features

• Utilizes a CREE XHP35 HD E2 LED
• Maximum output of up to 1800 lumens
• Integrated "Precision Digital Optics Technology" provides extreme reflector performance
• Boasts a peak beam intensity of 16,200cd and a throw distance of up to 255 meters
• Innovative single button offers access to 5 brightness levels and 3 modes.
• High efficiency constant current circuit board provides max runtime of 330 hours.
• Integrated power indicator light displays remaining battery power (Utility Model Patent, NO. ZL201220057767.4)
• Power indicator's secondary function displays battery voltage (accurate to 0.1V)
• Reverse polarity protection prevents damage from incorrectly inserted batteries
• Optics lens with anti-reflective coating
• Constructed from aero grade aluminum alloy with HAIII military grade hard-anodized finish
• Waterproof in accordance to IPX-8 (two meters submersible)
• Impact resistant to 1.5 meters
• Tail stand capability

Dimensions

Length: 128.7mm (5.07'')
Head diameter: 25.4mm (1")
Tube diameter: 25.4mm (1")
Weight: 78g (2.75oz) (without battery)

Accessories

Quality lanyard, spare O-ring

Battery options

Output & Runtime

FL1 STANDARD	Turbo	High	Mid	Low	Ultralow
	1800 lumens	980 lumens	300 lumens	55 lumens	1 lumen
1×IMR18650	*30min	*1h15min	4h15min	20h	300h
1×18650	*30min	*1h30min	4h45min	22h	330h
2×CR123	--	*1h	3h45min	16h	200h
	255m (Beam Distance)
	16200cd (Peak Beam Intensity)
	1.5m (Impact Resistant)
	IPX8, 2m (waterproof AND submersible)

NOTE: The above data has been measured in accordance with the international flashlight testing standards ANSI/NEMA FL1, using 1xIMR 18650 battery (3.6V, 3100mAh), 1x18650 battery (3.7V 3500mAh) or 2xCR123 batteries (3V, 1700mAh) under laboratory conditions. The data may vary in real-world use due to different battery use or environmental conditions.
* Runtime for Turbo or High Mode is calculated based on theoretical arithmetic.
* The Turbo 1800 lumens requires the use of rechargeable IMR18650 or 18650 Li-ion batteries with output current higher than 8A. The Turbo is not accessible with CR123A or RCR123A batteries.

Operating Instructions

Battery Installation
Insert battery with the positive poles pointing forward as illustrated in the diagram.
Note: After battery installation, the power indicator beneath the power switch will blink to indicate battery voltage. Please refer to the "Power Tips" section of this manual for details.

ON/OFF

Turn on: press the side switch to turn on the light.
Turn off: press the side switch again to turn off the light
Instant Ultralow: With the EC23 is switched off, press the switch for 0.5 second until the ultralow mode is displayed (1 lumen), release to maintain constant illumination.
Instant Turbo: With the EC23 switch off, press and hold the switch for 1.5 seconds until the Turbo mode is displayed (1800 lumens), release to maintain constant illumination. If one continuously holding down the switch, the EC23 will enter momentary Turbo.

Adjusting Brightness Levels

Within 3 seconds after the EC23 is switched on, press and hold the switch to cycle through brightness levels of Ultralow-Low-Medium-High-Turbo. To select a desired brightness level, simply release the switch when that level is displayed. This mode provides an intelligent memory function to ensure direct access to the previously used brightness level when the EC23 is reactivated.
Quick access to Turbo: Over 3 seconds after the EC23 being switched on, long press the switch to enter Turbo and release to return to the previously used brightness level.

Special Strobe / SOS mode and Location Beacon

Press the button for three times in quick succession in any state to enter Strobe mode. When in strobe mode, press the switch all the way down and hold for more than one second to cycle through SOS-Location Beacon-Strobe modes. To exit any of these special modes, simply press the button again. The EC23 does not have a memory function for special modes.

ATR(Advanced Temperature Regulation)

With Advanced Temperature Regulation module, the EC23 regulates its output and adapts to the ambient environment, maintaining optimal performance.
Note: When the EC23 is overheated, the Turbo cannot be turned on.

Power Tips

1. When the light is on, the blue power indicator beneath the switch will blink once every two seconds when power levels reach 50%.
2. When the light is on, the blue power indicator will blink quickly when power levels are low.
3. Each time batteries are inserted, the blue power indicator will blink in varying patterns to indicate battery voltage (accurate to ±0.1V). For example, when battery voltage is at a maximum charge of 4.2V, the power indicator will blink 4 times in quick succession, followed by a one second pause, and then two more blinks, thus indicating the battery voltage detected is 4.2V. Different voltages represent the corresponding remaining battery power levels:


NOTE: When using 2×CR123/RCR123 in series, the EC23 only reports the average voltage.

Replacing Batteries

Batteries should be replaced when any of the followings occurs: The power indicator blinks rapidly, output appears to be dim or the flashlight becomes unresponsive.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of siliconbased lubricant.

Warranty Service

All NITECORE ® products are warranted for quality. DOA/defective products can be exchanged for replacement through a local distributor/dealer within the 15 days of purchase. After 15 days, all defective / malfunctioning NITECORE charge for a period of 60 months from the date of purchase. After 60 months, a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts. The warranty is nullified in all of the following situations:

1. The product(s) is/are broken down, reconstructed and/or modified by unauthorized parties.
2. The product(s) is/are damaged through improper use.
3. The product(s) is/are damaged by leakage of batteries. For the latest information on NITECORE ® products and services, please contact your national

NITECORE ® distributor or send an email to service@nitecore.com ※ The Nitecore official website shall prevail in case of any product data changes.

SYSMAX Industry Co.,Ltd.
TEL: +86-20-83862000
FAX: +86-20-83882723
E-mail: info@nitecore.com
Web: www.nitecore.com
Address: Rm 2601-06, Central Tower, No.5 Xiancun Road, Tianhe District, Guangzhou, 510623, Guangdong, China
Manufacturer: SYSMAX Power Technology, LLC

Please find us on facebook
: NITECORE Flashlight
