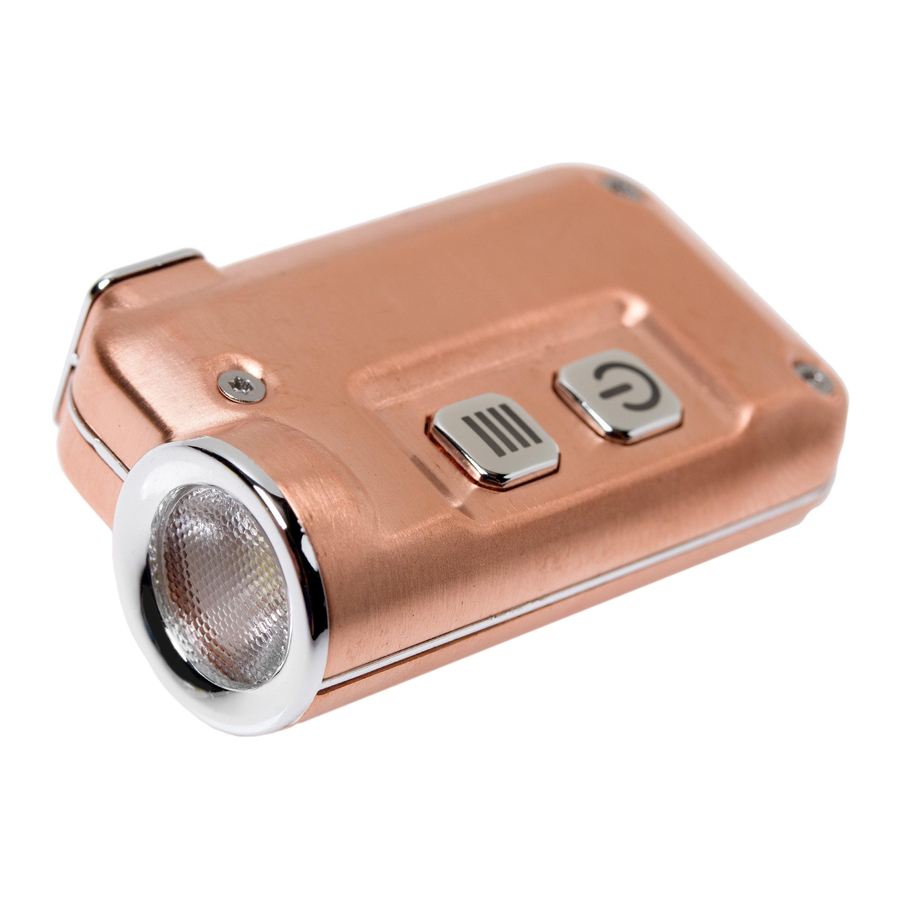

Nitecore TINI - 380 Lumens Flashlight Manual

Features

• Mini metallic keychain light
• Utilizes a CREE XP-G2 S3 LED to emit maximum 380 lumens
• Utilizes bead surface optic lens for uniform and soft light
• Built-in 280mAh Li-ion battery
• Intelligent Li-ion protective circuit supports Micro-USB charging
• Demo mode and daily mode selectable
• Dual switches for easy operation
• brightness levels selectable, with an instant access to turbo
• Intelligent memory function
• High efficient constant current circuit provides constant illumination
• Integrated ATR module
• Integrated power indicator light displays remaining battery power (Utility Model Patent, NO. ZL201220057767.4)
• Aero grade aluminum alloy
• 1.5 meters impact resistance

Specification

Accessory

Key Clasp

Optional accessory

USB Stand

Technical Parameter

FL1 STANDARD	Turbo	High	Mid	Low
	380 lumens	145 lumens	38 lumens	1 lumen
	*15min	1h	4h	60h
	64m	40m	19m	3.9m
	1020cd	400cd	95cd	3.8cd
	1.5m(Impact Resistance)
	IP54 rating

NOTE: Stated data has been measured in accordance with the international flashlight testing standards ANSI/NEMA FL1 using an integrated and fully charged 3.7V 280mAh rechargeable Li-ion battery under laboratory conditions. End-user results may vary due to individual usage habits and environmental conditions.
* The runtime for Turbo mode is the testing result before starting temperature regulation.

Operating Instruction

ON/OFF

Turn on: When the light is off, press and hold the power switch for 2 seconds to turn the light on.
Turn off: When the light is on, tap the power switch once to turn the light off.

Mode Introduction

The TINI has a demo mode and a daily mode. Demo mode: If no further operation for 30 seconds, the TINI will automatically turn off. Daily mode: In daily mode, the TINI needs to be turned off manually.
NOTE: For daily use, NITECORE recommends users to switch to the daily mode first.

Mode Switching

When the TINI is on/off, press and hold the power switch and mode switch simultaneously to alternate Demo and Daily mode. The light will flash to notify users the current mode: one flash represents "Demo Mode"; two flashes represent "Daily Mode".
NOTE: In Demo mode, the TINI will automatically turn off after 30 seconds interval. If turning it on again within 3 seconds of automatic turn off, the TINI will enter the daily mode temporarily.

Brightness Adjustment

When the light is turned on, tap the mode switch repeatedly to cycle through Low-Mid-High (The TINI has memory function, it will revert to the last setting where the TINI was turned off when turning it on again.)

Instant Access to Turbo

When it is on or off, press and hold the mode switch for 0.6 second to enter the Turbo mode, release to return to the previously used mode.

ATR

With incorporated Advanced Temperature Regulation module, the TINI regulates its outputs and adapts to the ambient environment, therefore maintaining optimal performance.

Power Tips

When the TINI is turned off, tap the function mode once, the blue indicator beneath the two switches will blink to report its remaining power:

1. 3 flashes represent battery level above 50%.
2. 2 flashes represent battery level below 50%.
3. 1 flash represents battery level below 10%.

Charging

1. Power on: As illustrated in diagram (1), plug one end to a power supply(such as adaptor, computer or other power supplies). It takes 1 hour and 45 minutes to fully charge the TINI. NITECORE recommends to use the TINI with the USB stand, which can be used as a stand for the TINI while charging as illustrated in diagram (2).


2. Charging tips: When it is charging in progress, the blue indicators will blink slowly to notify user; the indicators will keep on upon charging completion. After fully charged, the theoretical standby duration of TINI is about 1 year.

NOTE: When the power level is low, the blue indicators will blink once every 3 seconds to notify user and the light may be dim or unresponsive.

Cautions

1. Avoid direct eye exposure.
2. Charge the TINI before the first use.
3. For long term storage, recharge the light semi-annually.
4. This packaging contains small assembly parts. Keep away from children to avoid danger of choking or suffocation.
5. Do not disassemble or modify this product, as doing so voids the warranty.
