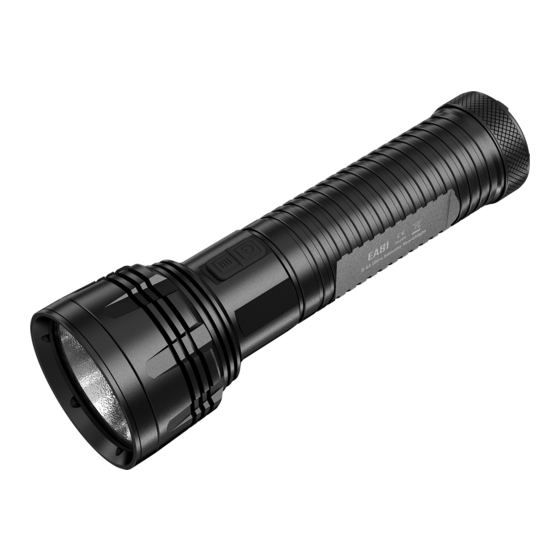

The All-Round Flashlight Expert
Features
Utilizes a CREE XHP50 LED
·
Maximum output up to 2150 lumens
·
High efficiency circuit board provides up to 810 hours runtime
·
· Boasts a peak beam intensity of 53,300cd and a throw distance up to 462
meters
· Five brightness levels and three special modes to select from
· A micro-textured reflector offers wide angle lighting
· Featuring Advanced Temperature Regulation (ATR) technology to
dynamically adjust output performance according to its internal temperature
· Direct access to ultralow and turbo modes
· Innovative dual switch offers user-friendly interface
· Integrated power indicator light displays remaining battery power ( Chinese
Patent:ZL201220057767.4)
· Reverse polarity protection prevents damage from incorrectly inserted
batteries
· Stainless steel retaining ring protects core components from damage
· Toughened ultra-clear mineral glass with anti-reflective coating
· Constructed from aerospace grade aluminum alloy
· Robust HAIII military grade hard-anodized
· Waterproof in accordance with IPX-8 (two-meter submersible)
· 1.5 meters impact resistance
· Tail stand capability
Dimensions
Length: 193mm (7.6")
Head diameter: 60mm (2.36")
Tube diameter: 41.8mm (1.65")
Weight: 282g (9.95oz)(without battery)
Battery Options
Primary AA battery
Rechargeable AA battery
Primary AA Lithium battery
Primary LiFePO4 battery
Rechargeable Li-ion battery
Output & Runtime
TURBO
HIGH
2150
1200
LUMENS
LUMENS
1
45
2
30
h
min
h
min
462m
53300cd
1.5m
IPX-8, 2m
NOTICE
The above data has been measured in accordance with the international
flashlight testing standards ANSI/NEMA FL1 using 8 x 1.2V 2450mAh AA
batteries under laboratory conditions. The data may vary slightly during
real-world use due to battery type, individual usage habits and
environmental factors.
Accessories
Quality holster, lanyard,
spare O-ring
TYPE
Nominal voltage
Compatible
AA
1.5V
Y (Recommended)
AA
1.2V
Y (Recommended)
L91
1.5V
Y
14500
3.2V
N (Banned)
14500
3.7V
N (Banned)
MID
LOW
ULTRALOW
460
80
1
LUMENS
LUMENS
LUMEN
7
32
810
h
h
h
(Beam Distance)
(Peak Beam Intensity)
(Impact Resistant)
(Waterproof and Submersible)
Thanks for purchasing NITECORE!
®
EA81
Operation Instructions

Battery Installation

1. Insert batteries with the positive (+) and negative (-) ends
corresponding to the diagram on the inside of the battery
compartment.
2. Tighten the tailcap by aligning the two gold pins on the inside of the
tailcap with the corresponding holes on the flashlight bottom and
rotating clockwise.
Tips
Inserting batteries in a dark environment: Two of the four battery slots in
the EA81's battery compartment feature grooves indicating that batteries
should be inserted with the negative (-) ends facing forward, while the two
slots with no grooves require the batteries to be inserted with the positive
(+) ends facing forward. In this way, batteries can be inserted correctly
through tactile feedback alone.
Upon loading the batteries, the power indicator light will blink to indicate
the battery power. Please refer to the "Power Tips" section of this manual
for details.
WARNING
1. Do not mix rechargeable with non-rechargeable batteries.
2. Do not mix batteries of different types/brands.
On/Off Operation
To turn on: press the on/off switch
To turn off: press the on/off switch
Standby Mode
With the light turned on, press and hold the on/off switch
one second to turn off the light and activate location beacon function. The
blue power indicator will flash once every three seconds to indicate the
location of the EA81. In this mode, the EA81 can keep running on 8 × AA
batteries for 1 year.
NOTE: With the power indicator off in standby mode, the EA81 can stay
in standby mode for 2 years with 8 × AA batteries.
Brightness Levels
With the light turned on, press the mode switch
brightness levels of ultralow, low, medium, high and turbo. The EA81 has
memory effect. When it is switched on, the EA81 will enter the brightness
User Manual
to turn the light on
again to turn the light off
for more than
to cycle through
