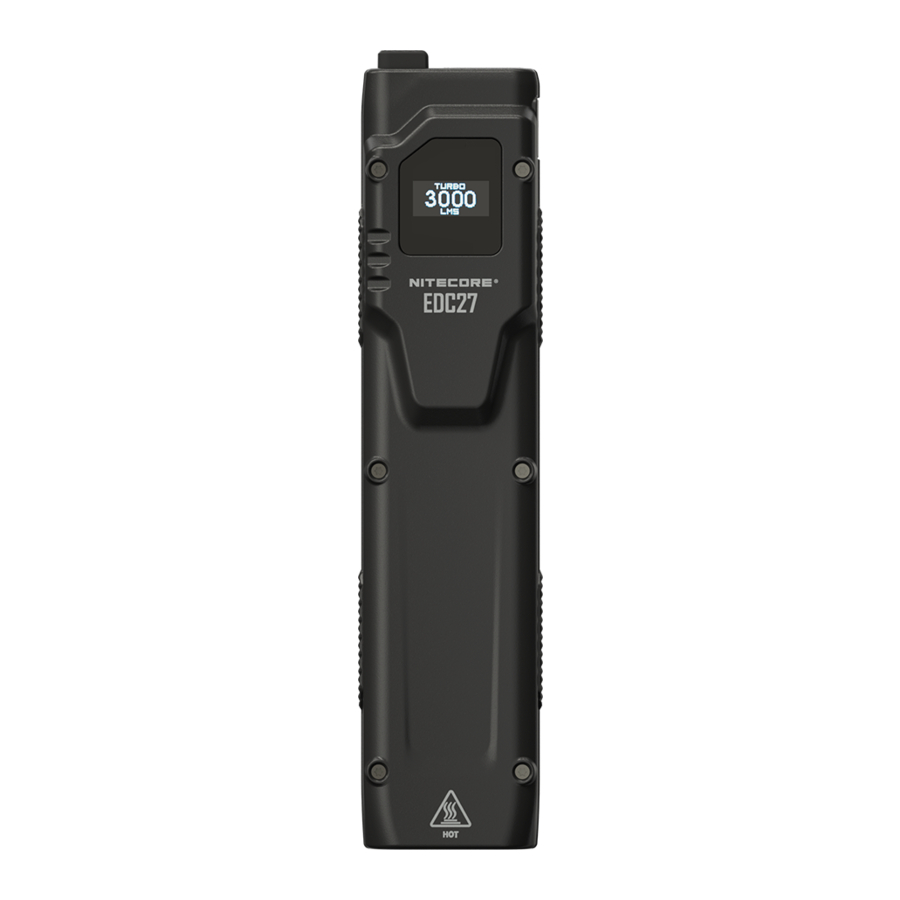

Nitecore EDC27 - Ultra Slim High Performance EDC Flashlight Manual

Features

• Utilizes 2 x Luminus SST40 LEDs with a max output of 3,000 lumens
• Utilizes a total reflective optic lens for uniform and soft light
• Max peak beam intensity of 12,200cd and max throw of 220 meters
• Multifunctional OLED real-time display for brightness, battery voltage and runtime, etc.
• Built-in 1,700mAh Li-ion battery
• Advanced Power Cut-Off (APC) technology for an ultra-low standby power consumption
• Highly efficient constant current circuit provides a stable output up to 37 hours
• Dual tail switches enable intuitive operations for tactical applications
• 5 brightness levels and 1 special mode available
• STROBE READY™ Technology to enable a quick access to STROBE Mode
  (Patent No. ZL201320545349.4)
• STROBE Mode uses randomly changing frequencies for stronger dizzying effects
• Built-in Li-ion battery charging circuit with a USB-C port
• Intelligent mode memory function
• 2 lockout modes available (Half Lockout Mode and Full Lockout Mode)
• Incorporated Advanced Temperature Regulation
  (ATR) module (Patent No. ZL201510534543.6)
• Optical lenses with double-sided scratch resistant coating
• Constructed from aero grade aluminum alloy
• HA III military grade hard-anodized finish
• Waterproof and dustproof rating in accordance with IP54
• Impact resistant to 1 meter

Specifications

Accessories

• Lanyard
• USB-C
• Charging Cable

Technical Data

Note:
The stated data is measured in accordance with the international flashlights testing standarts ANSI/FL 1-2019, using the built-in Li-ion battery (1,700mAh) under laboratory conditions. The data may vary in real world use due to different environmental conditions.

Charging Function

The EDC27 is equipped with an intelligent charging system. Please charge the battery before the first use.

Power Connection:
As illustrated, use the USB cable to connect an external power supply (e.g. a USB adapter, a power bank or other USB charging devices) to the USB port to begin the charging process. The charging time is approx. 1 hour 15 minutes. (Charged via the 5V/2A adapter)

Charging Indication:
During the charging process, the screen will show the battery charging status. When the battery is fully charged, the screen will display a full process bar.

Note:
The product will be automatically unlocked when charging in the Lockout Mode.

Multifunctional OLED Display

The EDC27 is equipped with a multifunctional OLED display. (Please remove the screen protector before the first use.) When the light is turned on, the screen will successively show the current info (Brightness Level & Lumens, Runtime Remaining) before it goes out. After the screen goes out, half pressing the Power Button can reactivate the screen.

On / Off

On: When the light is off, full press the Power Button to turn it on.
Off: When the light is on, full press the Power Button to turn it off.

Brightness Levels

When the light and the screen are on, half press the Power Button to cycle through "ULTRALOW – LOW – MID - HIGH". The flashlight will directly access the previously memorized brightness level when reactivated.

Note:
When the screen is off, half press the Power Button to activate the screen before adjusting the brightness levels.

Direct Access to ULTRALOW

When the light is off, half press and hold the Power Button to directly access ULTRALOW. Release to turn it off.

Direct Access to TURBO

When the light is on / off, half press and hold the MODE Button (STROBE READY™) to access TURBO (3,000 lumens). Release to return to the previous status or turn it off.

STROBE READY™

When the light is on / off, full press and hold the MODE Button (STROBE READY™) to access the STROBE Mode. Release to return to the previous status or turn it off.

Lockout / Unlock

The EDC27 has two lockout modes (Half Lockout Mode and Full Lockout Mode).

Half Lockout Mode (Lockout 1):

• When the light is on, press and hold the Power Button until the screen shows the Lockout 1 icon to access Half Lockout Mode.
• When in Half Lockout Mode, the Power Button is unavailable to activate the flashlight.
  Half pressing and holding the MODE Button (STROBE READY™) is still available for accessing TURBO while full pressing and holding the MODE Button (STROBE READY™) is available for accessing STROBE.

Full Lockout Mode (Lockout 2) (Default Setting):

• When the light is on, press and hold the Power Button even after accessing Half Lockout Mode, until the screen shows Lockout 2 icon to access Full Lockout Mode.
• When in Full Lockout Mode, both buttons are unavailable to activate the flashlight.

Unlock:
In either Lockout Mode, short press and then long press the Power Button, during which the screen will show an unlock icon and a progress bar, until the flashlight is activated to exit Lockout Mode. The light will access the previous memorized level.

ATR (Advanced Temperature Regulation)

The integrated ATR technology regulates the output of the EDC27 according to the working condition and ambient environment to maintain the optimal performance.

Safety Instructions

1. The TURBO Level (3,000 lumens) will produce massive heat rapidly during long-time activation. Use caution when operating the product on TURBO Level to avoid overheating and step down to a lower level if the product becomes too hot to handle.
2. When the product is kept in the backpack, please activate the Full Lockout Mode to prevent accidental activation.
3. DO NOT disassemble, modify or reconstruct the product, otherwise the warranty will be nullified, and the product might be damaged.
4.
   Possible dangerous radiation! Don't look into the light! May be dangerous for your eyes.
5. Please recharge the product every 3 months when left unused for a prolonged time.
6. Dispose of the device/batteries in accordance with applicable local laws and regulations.
