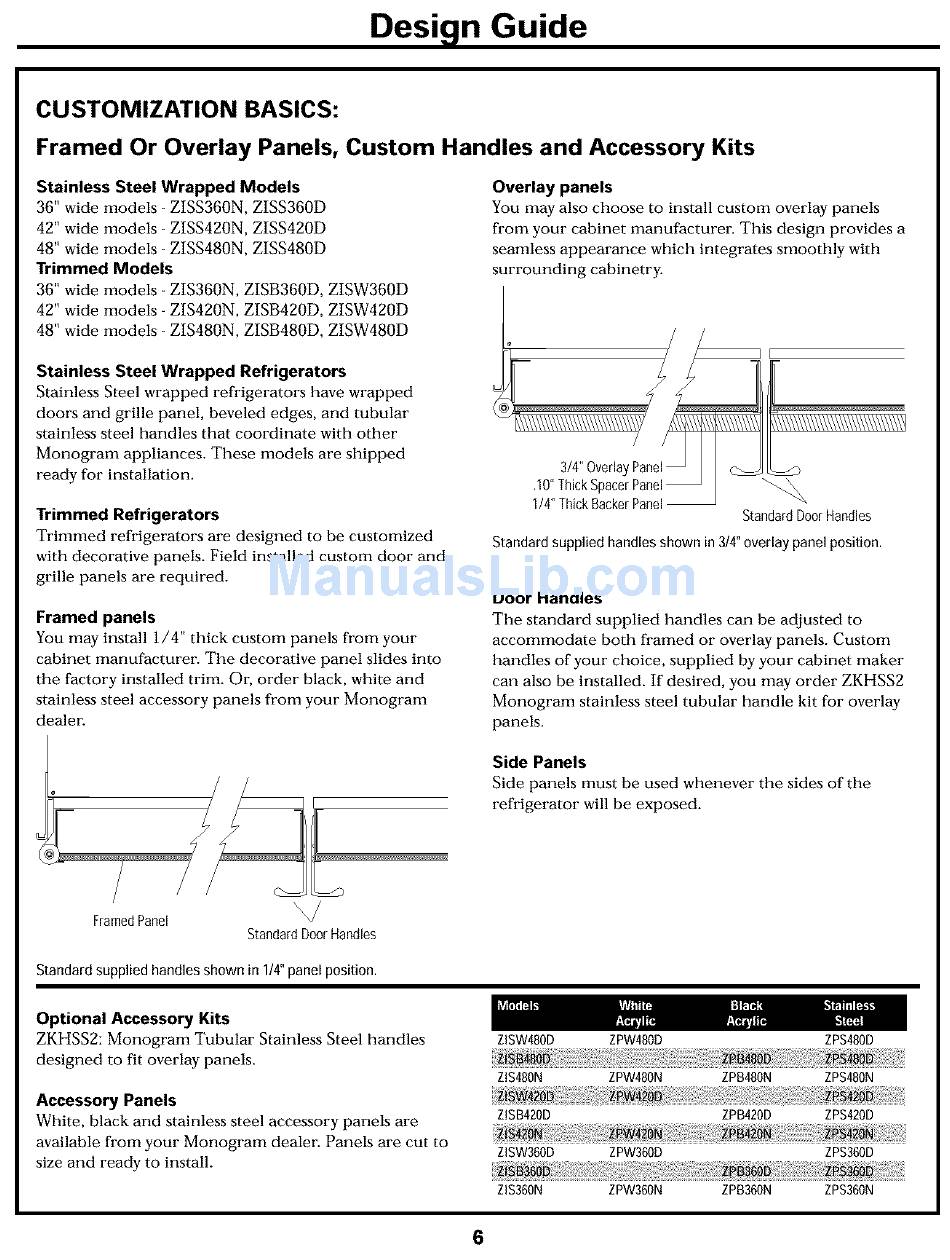

CUSTOMIZATION BASICS:
Framed Or Overlay Panels, Custom Handles and Accessory Kits
Stainless Steel Wrapped Models
36" wide models- ZISS360N, ZISS360D
42" wide models =ZISS420N, ZISS420D
48" wide models =ZISS480N, ZISS480D
Trimmed Models
36" wide models- ZIS360N, ZISB360D, ZISW360D
42" wide models- ZIS420N, ZISB420D, ZISW420D
48" wide models- ZIS480N, ZISB480D, ZISW480D
Stainless Steel Wrapped Refrigerators
Stainless Steel wrapped refrigerators have wrapped
doors and grille panel, beveled edges, and tubular
stainless steel handles that coordinate with other
Monogram appliances. These models are shipped
ready for installation.
Trimmed Refrigerators
Trimmed refrigerators are designed to be customized
with decorative panels. Field installed custom door and
grille panels are required.
Framed panels
You may install 1/4" thick custom panels from your
cabinet manufacturer. The decorative panel slides into
the factory installed trim. Or, order black, white and
stainless steel accessory panels from your Monogram
dealer.
Overlay panels
You may also choose to install custom overlay panels
from your cabinet manufacturer. This design provides a
seamless appearance which integrates smoothly with
surrounding cabinetry.
/
3/4" OverlayPanel
,10" ThickSpacerPanel
1/4" ThickBackerPanel
StandardDoorHandles
Standard supplied handles shown in 314"overlay panel position.
Door Handles
The standard supplied handles can be adjusted to
accommodate both framed or overlay panels. Custom
handles of your choice, supplied by your cabinet maker
can also be installed. If desired, you may order ZKHSS2
Monogram stainless steel tubular handle kit for overlay
panels.
Side Panels
Side panels must be used whenever the sides of the
refrigerator will be exposed.
/
FramedPanel
StandardDoorHandles
Standard supplied handles shown in I14" panel position.
Optional Accessory Kits
ZKHSS2: Monogram Tubular Stainless Steel handles
designed to fit overlay panels.
Accessory Panels
White, black and stainless steel accessory panels are
available from your Monogram dealer. Panels are cut to
size and ready to install.
ZISW480D ZPW480D ZPS480D
ZtS480N ZPW480N ZPB480N ZPS480N
ZlSB420D ZPB420D ZPS420D
ZlSW360D ZPW360D ZPS360D
ZIS360N ZPW360N ZPB360N ZPS360N
