Design Guide
DISPENSER MODELS:

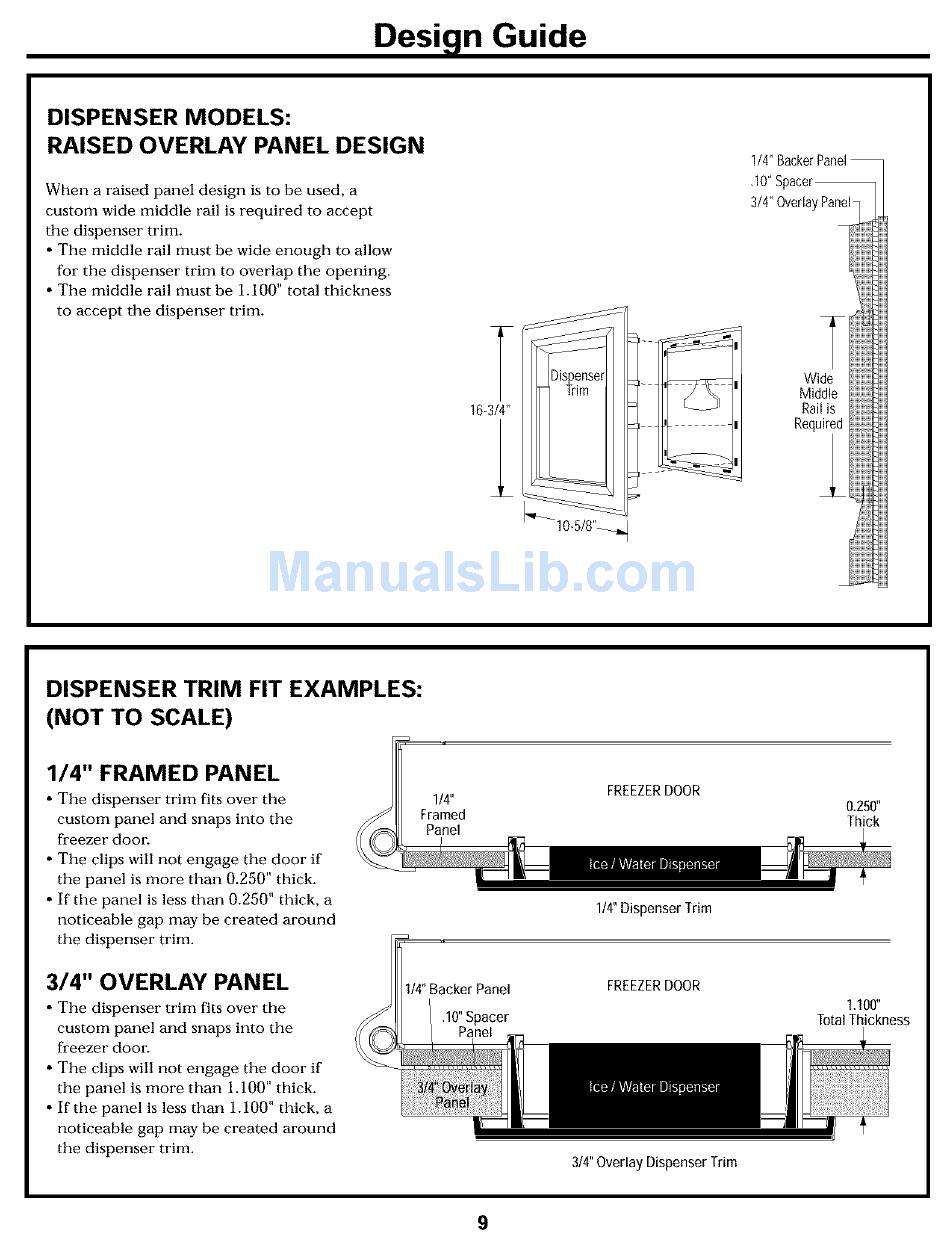

RAISED OVERLAY PANEL DESIGN
When a raised panel design is to be used, a
custom wide middle rail is required to accept
the dispenser trim.
* The middle rail must be wide enough to allow
for the dispenser trim to overlap the opening.
* The middle rail must be 1.100" total thickness
to accept the dispenser trim.
16-3/4"
J
Dispenser
Trim
_10-5/8'2_,
1/4"BackerPanel
,10" Spacer
DISPENSER TRIM FIT EXAMPLES:
(NOT TO SCALE)
1/4" FRAMED PANEL
, The dispenser
trim fits over the
custom panel and snaps into the
freezer door.
* The clips will not engage the door if
the panel is more than 0.250" thick.
* If the panel is less than 0.250" thick, a
noticeable gap may be created around
the dispenser trim.
3/4" OVERLAY PANEL
, The dispenser trim fits over the
custom panel and snaps into the
freezer door.
* The clips will not engage the door if
the panel is more than 1.100" thick.
* If the panel is less than 1.100" thick, a
noticeable gap may be created around
the dispenser trim.
1/4"
Framed
1/4"Backer Panel
FREEZER DOOR
1/4"Dispenser Trim
FREEZER DOOR
314"Overlay Dispenser Trim
0.250"
Thick
1.100"
Total Thickness
9
