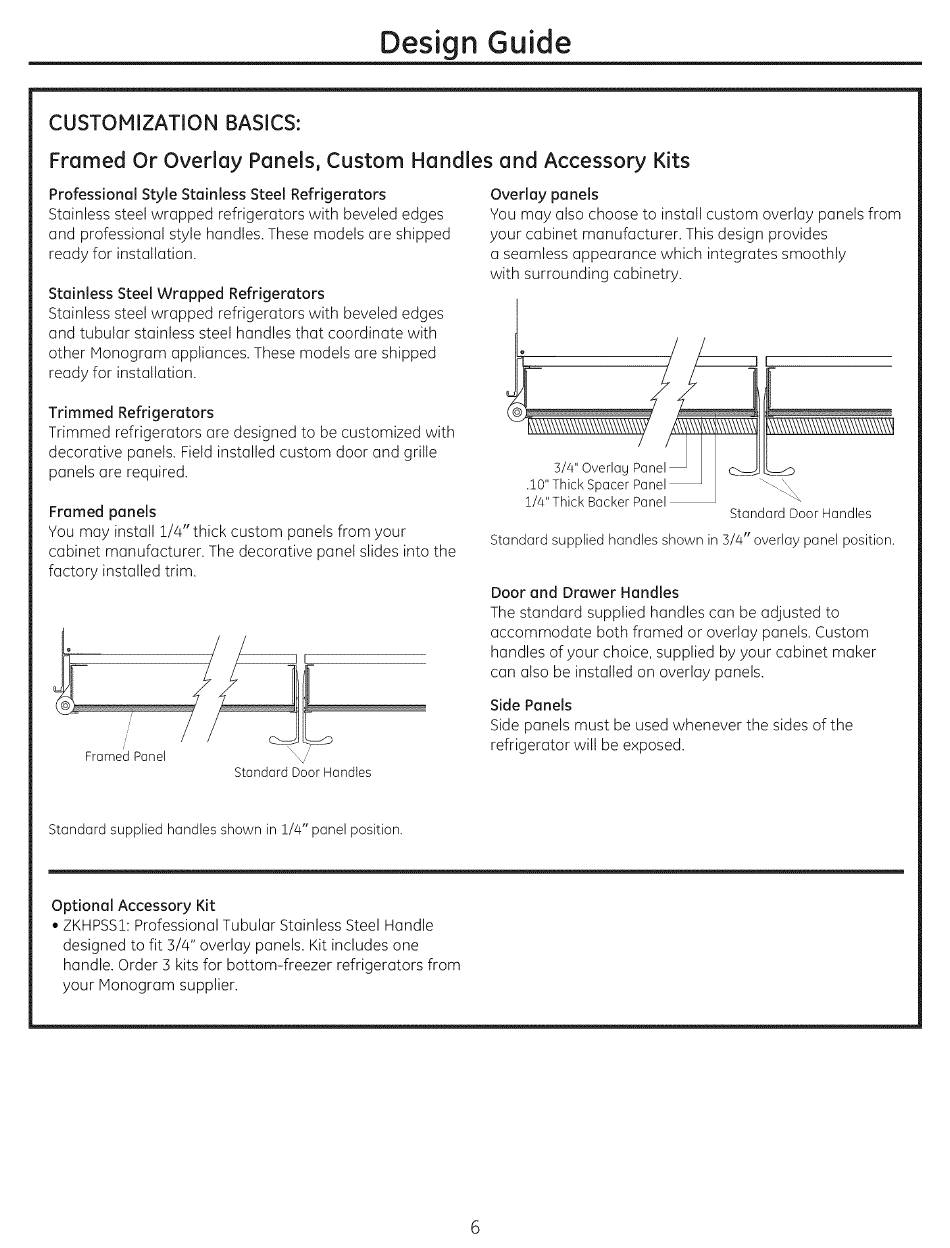

CUSTOMIZATION BASICS:
Framed Or Overlay Panels, Custom Handles and Accessory Kits
Professional Style Stainless Steel Refrigerators
Stainless steel wrapped refrigerators with beveled edges
and professional style handles. These models are shipped
ready for installation.
Stainless Steel Wrapped Refrigerators
Stainless steel wrapped refrigerators with beveled edges
and tubular stainless steel handles that coordinate with
other Monogram appliances. These models are shipped
ready for installation.
Trimmed Refrigerators
Trimmed refrigerators are designed to be customized with
decorative panels. Field installed custom door and grille
panels are required.
Framed panels
You may install 1/4" thick custom panels from your
cabinet manufacturer. The decorative panel slides into the
factory installed trirn.
Framed Panel
Standard Door Handles
Standard supplied handles shown in 1/4" panel position.
Overlay panels
You may also choose to install custom overlay panels from
your cabinet manufacturer. This design provides
a seamless appearance which integrates smoothly
with surrounding cabinetry.
a
3/4" Overlay Panel edhe
.10" Thick Spacer Panel SS
1/4" Thick Backer Panel ~
Standard Door Handles
Standard supplied handles shown in 3/4" overlay panel position.
Door and Drawer Handles
The standard supplied handles can be adjusted to
accommodate both framed or overlay panels. Custom
handles of your choice, supplied by your cabinet maker
can also be installed on overlay panels.
Side Panels
Side panels must be used whenever the sides of the
refrigerator will be exposed.
Optional Accessory Kit
¢ ZKHPSS1: Professional Tubular Stainless Steel Handle
designed to fit 3/4" overlay panels. Kit includes one
handle. Order 3 kits for bottorn-freezer refrigerators from
your Monogram supplier.
