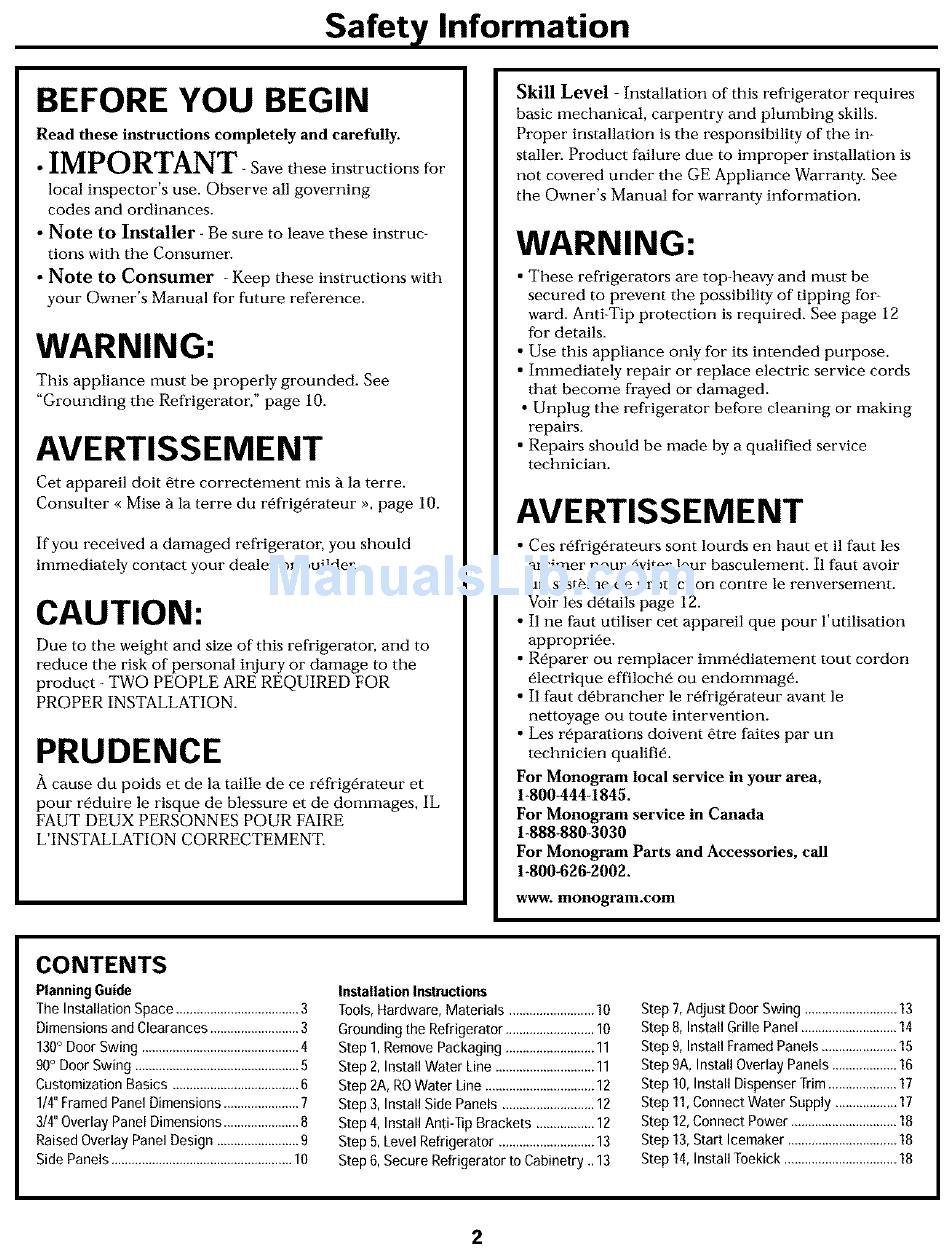

Safety Information
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•
IMPORTANT
Save these instructions for
local inspector's use. Observe all governing
codes and ordinances.
• Note to Installer- Be sure to leave these instruc-
tions
with the Consumer.
• Note to Consumer - Keep these instructions with
your Owner's Manual for future reference.
WARNING:
This appliance must be properly grounded. See
"Grounding the Refrigerator," page 10.
AVERTISSEMENT
Cet appareil dolt 6tre correctement mis _ la terre.
Consulter << Mise a la terre du r0frigdrateur >_, p age 10.
If you received a damaged refrigerator, you should
immediately contact your dealer or builder.
CAUTION:
Due to the weight and size of this refrigerator, and to
reduce the risk of personal injury or damage to the
product- TWO PEOPLE ARE REQUIRED FOR
PROPER INSTALLATION.
PRUDENCE
tk cause du poids et de la taille de ce rdfrigdrateur et
pour r0duire le risque de blessure et de dommages, IL
FAUT DEUX PERSONNES POUR FAIRE
L'INSTALLATION CORRECTEMENT.
Skill Level
- Installation of this refrigerator requires
basic mechanical, carpentry and plumbing skills.
Proper installation is the responsibility of the in-
staller. Product failure due to improper installation is
not covered under the GE Appliance Warranty. See
the Owner's Manual for warranty information.
WARNING:
• These refrigerators are top-heavy and must be
secured to prevent the possibility of tipping for-
ward. Anti-Tip protection is required. See page 12
for details.
• Use this appliance only for its intended purpose.
• Immediately repair or replace electric service cords
that become frayed or damaged.
• Unplug the refrigerator before cleaning or making
repairs.
• Repairs should be made by a qualified service
technician.
AVERTISSEMENT
• Ces rdfrigdrateurs sont lourds en haut et il faut les
arrimer pour dviter leur basculement. II faut avoir
un syst_me de protection contre le renversement.
Voir les ddtails page 12.
• Iine faut utiliser cet appareil que pour l'utilisation
appropri0e.
• R0parer ou remplacer imm0diatement tout cordon
01ectrique effilochd ou endommagd.
• Ii faut d0brancher le rdfligdrateur avant le
nettoyage ou toute intervention.
• tes r0parations doivent 6ire faites par un
technicien qualifi0.
For Monogram local service ill your area,
1-800-444-1845.
For Monogram service in Canada
1-888-880-3030
For Monogram Parts and Accessories, call
1-800-626-2002.
www. monogram.com
CONTENTS
PlanningGuide
The Installation Space .................................... 3
Dimensions and Clearances .......................... 3
130 ° Door Swing .............................................. 4
90° Door Swing ................................................ 5
Customization Basics ..................................... 6
1/4"Framed Panel Dimensions ...................... 7
314"Overlay Pane[ Dimensions ...................... 8
Raised Overlay Panel Design ........................ 9
Side Panels ..................................................... 10
Installation Instmoti0ns
Tools, Hardware, Materials ......................... 10
Grounding the Refrigerator .......................... 10
Step 1, Remove Packaging .......................... 11
Step 2, Install Water Line ............................. 11
Step 2A, ROWater Line ................................ 12
Step 3, Install Side Panels ........................... 12
Step 4, Install Anti-lip Brackets ................. 1 2
Step 5, Level Refrigerator ............................ 13
Step 6, Secure Refrigerator to Cabinetry .. 13
Step 7, Adjust Door Swing ........................... 13
Step 8, Install Grille Panel ............................ 14
Step 9, Install Framed Panels ...................... 15
Step 9A, Install Overlay Panels ................... 16
Step 10, Install Dispenser Trim .................... 17
Step 11, Connect Water Supply .................. 1 7
Step 12, Connect Power ............................... 18
Step 13, Start Icemaker ................................ 18
Step 14, Install Toekick ................................. 18
2
