Design Guide

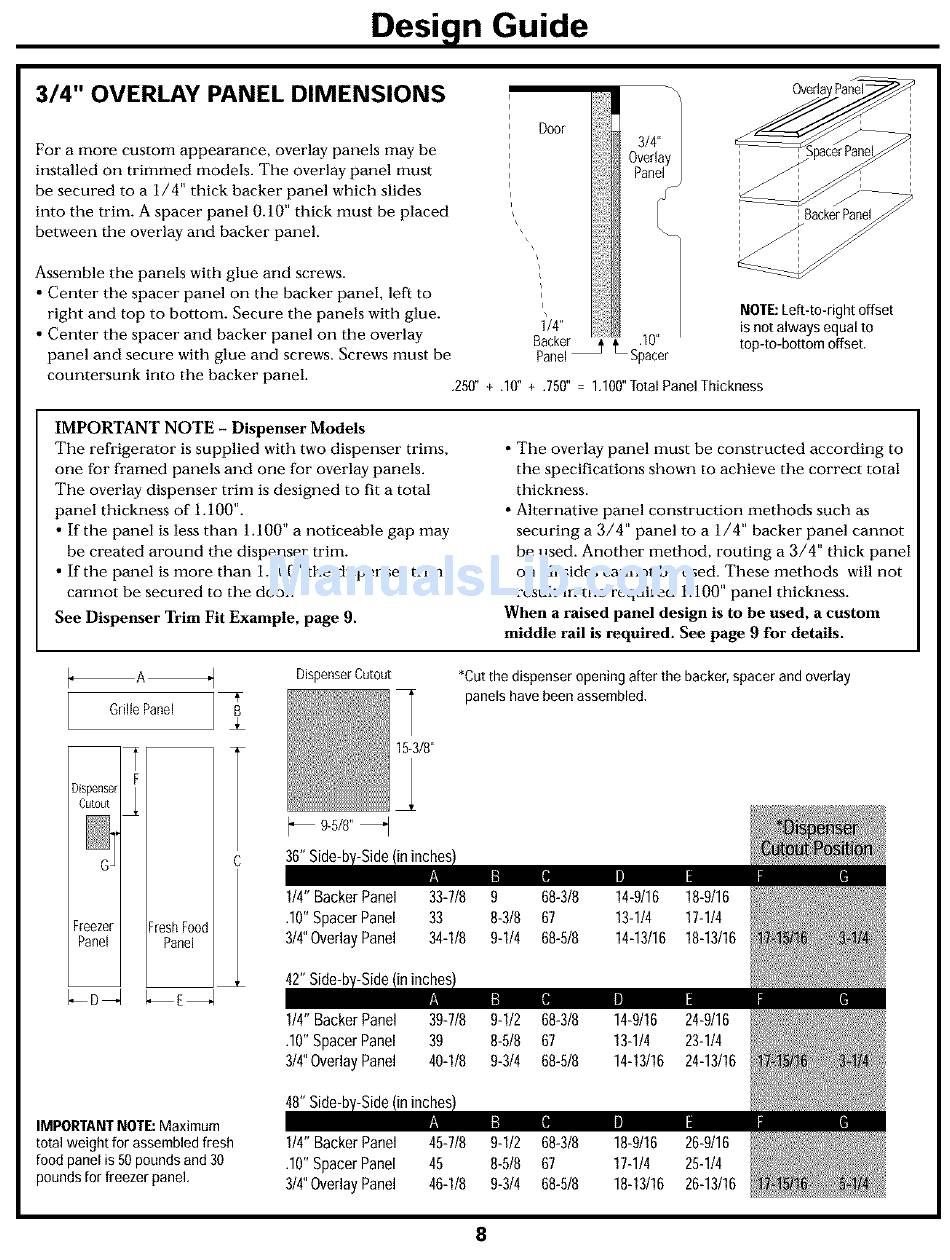

3/4" OVERLAY PANEL DIMENSIONS
For a more custom appearance, overlay panels may be
installed on trimmed models. The overlay panel must
be secured to a 1/4" thick backer panel which slides
into the trim. A spacer panel 0.10" thick must be placed
between the overlay and backer panel.
Assemble the panels with glue and screws.
• Center the spacer panel on the backer panel, left to
right and top to bottom. Secure the panels with glue.
• Center the spacer and backer panel on the overlay
panel and secure with glue and screws. Screws must be
countersunk into the backer panel.
Door
114"
Backer_
Panel
Ov
P,
S }acer
NOTE:Left-to-right offset
is not always equal to
top-to-bottom offset.
.250" + .10" + .750" = 1.100"Total Panel Thickness
IMPORTANT NOTE - Dispenser Models
The refrigerator is supplied with two dispenser trims,
one for framed panels and one for overlay panels.
The overlay dispenser trim is designed to fit a total
panel thickness of 1.100".
• If the panel is less than 1.100" a noticeable gap may
be created around the dispenser trim.
• If the panel is more than 1.100" the dispenser trim
cannot be secured to the doog
See Dispenser Trim Fit Example, page 9.
• The overlay panel must be constructed
according to
the specifications shown to achieve the correct total
thickness.
• Alternative panel construction methods such as
securing a 3/4" panel to a 1/4" backer panel cannot
be used. Another method, routing a 3/4" thick panel
on all sides cannot be used. These methods will not
result in the required 1.100" panel thickness.
When a raised panel design is to be used, a custom
middle rail is required. See page 9 for details.
GrillePanel
F
Dispense_
CuLout
B
L
Dispenser Cutout
*Cut the dispenser opening after the backer, spacer and overlay
panels have been assembled.
C
/
Freezer :reshFood1
Panel Panel
!
IMPORTANTNOTE:Maximum
total weight for assembled fresh
food panel is 50 pounds and 30
pounds for freezer panel.
36"!
1/4"BackerPanel
.10" SpacerPanel
314" O verlayPanel
42"!
1/4"BackerPanel
.10" SpacerPanel
314" O verlayPanel
48"!
1/4"BackerPanel
.10" SpacerPanel
3/4"OverlayPanel
33-7/8 9 68-3/8 14-9/16 18-9/16
33 8-3/8 67 13-1/4 17-1/4
34-1/8 9-1/4 68-5/8 14-13/16 18-13/16
39-7/8 9-1/2 68-3/8 14-9/16 24-9/16
39 8-5/8 67 13-1/4 23-1/4
40-1/8 9-3/4 68-5/8 14-13/16 24-13/16
45-7/8 9-1/2 68-3/8 18-9/16 26-9/16
45 8-5/8 67 17-1/4 25-114
46-1/8 9-3/4 68-5/8 18-13/16 26-13/16
8
