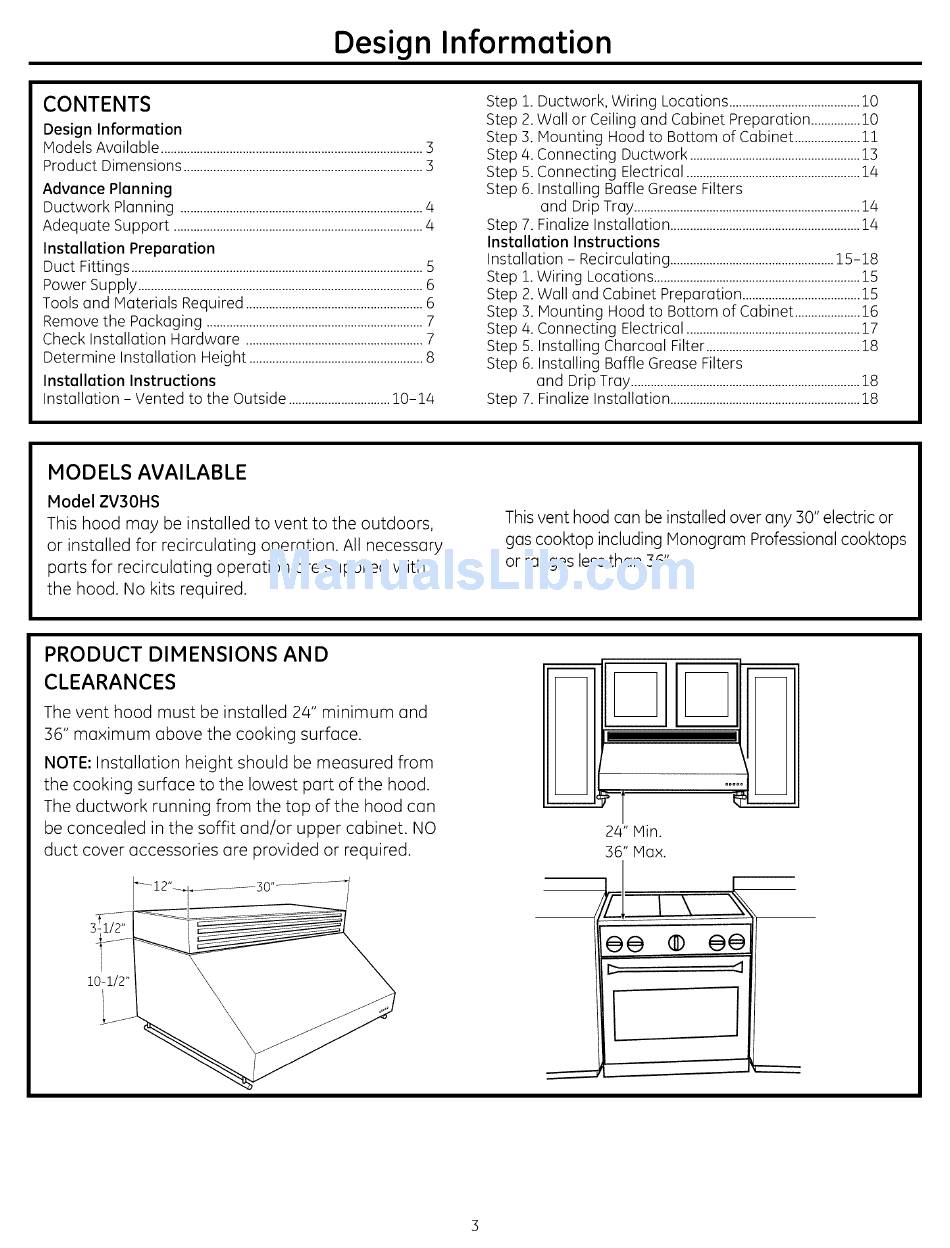

Design Information
CONTENTS
Design Information
Models Available ................................................................................ 3
Product Dimensions ......................................................................... 3
Advance Planning
Ductwork Planning .......................................................................... 4
Adequate Support ............................................................................ 4
Installation Preparation
Duct Fittings ......................................................................................... 5
Power Supply ....................................................................................... 6
Tools and Materials Required ...................................................... 6
Remove the Packaging .................................................................. 7
Check Installation Hardware ...................................................... 7
Determine Installation Height ..................................................... 8
Installation Instructions
Installation - Vented to the Outside ............................... 10-14
Step 1. Ductwork, Wiring Locations ........................................ l0
Step 2. Wall or Ceiling and Cabinet Preparation ............... l0
Step 3. Hounting Hood to Bottom of Cabinet .................... 11
Step 4. Connecting Ductwork .................................................... 13
Step 5. Connecting Electrical ..................................................... 14
Step 6. Installing Baffle Grease Filters
and Drip Tray ..................................................................... 14
Step 7. Finalize Installation .......................................................... 14
Installation Instructions
Installation - Redrculating .................................................. 15-18
Step 1. Wiring Locations ............................................................... 15
Step 2. Wall and Cabinet Preparation .................................... 15
Step 3. Mounting Hood to Bottom of Cabinet .................... 16
Step 4. Connecting Electrical ..................................................... 17
Step 5. Installing Charcoal Filter ............................................... 18
Step 6. Installing Baffle Grease Filters
and Drip Tray ...................................................................... 18
Step 7. Finalize Installation .......................................................... 18
MODELS AVAILABLE
Model ZV3OHS
This hood may be installed to vent to the outdoors,
or installed for recirculating operation. All necessary
parts for recirculating operation are supplied with
the hood. No kits required.
This vent hood can be installed over any 30" electric or
gas cooktop including Honogram Professional cooktops
or ranges less than 36".
PRODUCT DIMENSIONS AND
CLEARANCES
The vent hood must be installed 24" minimum and
36" maximum above the cooking surface.
NOTE: Installation height should be measured from
the cooking surface to the lowest part of the hood.
The ductwork running from the top of the hood can
be concealed in the soffit and/or upper cabinet. NO
duct cover accessories are provided or required.
10-1/2"
24" Min.
s6" max.
O0 ® O0
