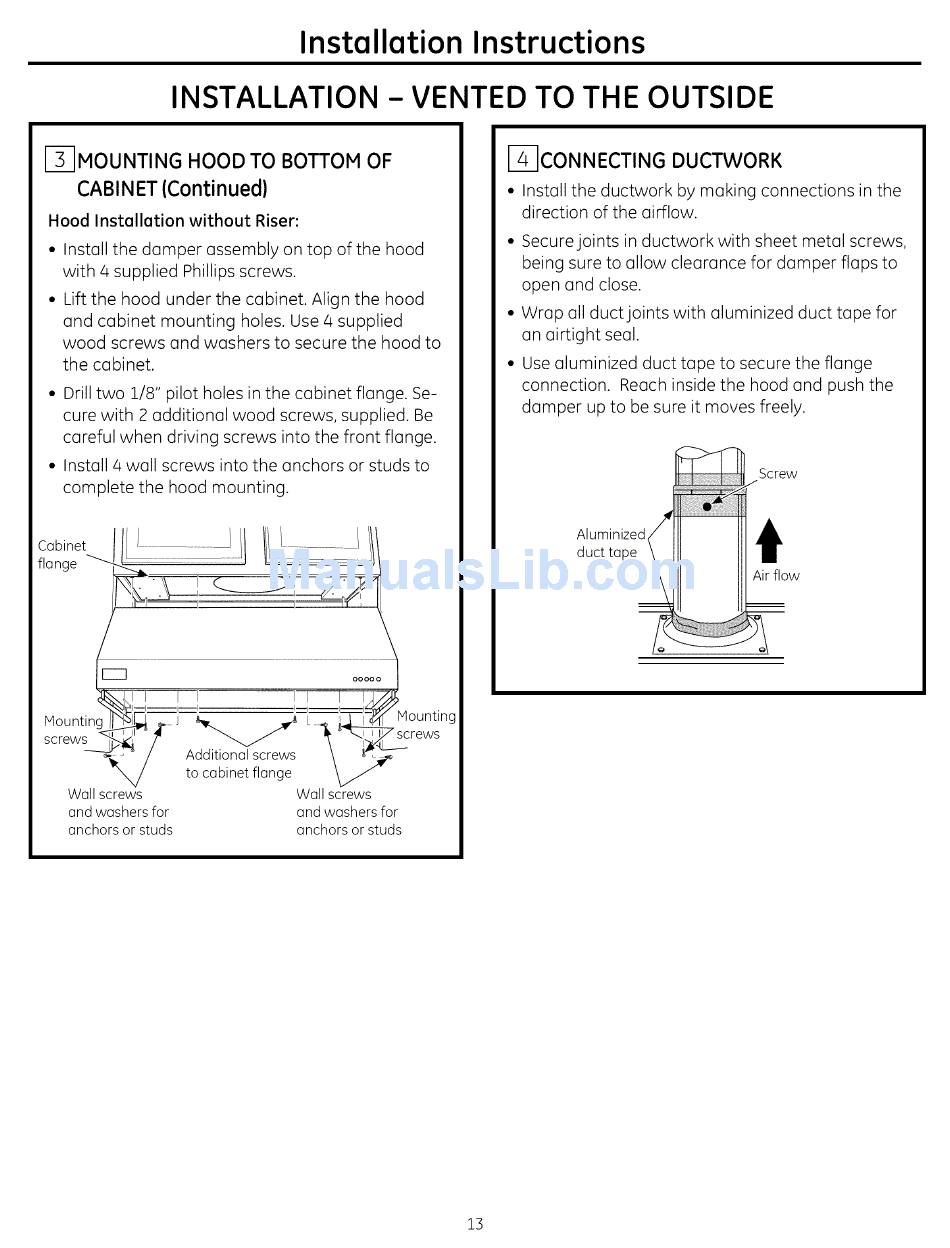

Installation Instructions
INSTALLATION - VENTED TO THE OUTSIDE
I-3-1MOUNTING HOOD TO BOTTOM OF
CABINET (Continued)
Hood Installation without Riser:
Install the damper assembly on top of the hood
with 4 supplied Phillips screws.
Lift the hood under the cabinet. Align the hood
and cabinet mounting holes. Use 4 supplied
wood screws and washers to secure the hood to
the cabinet.
• Drill two 1/8" pilot holes in the cabinet flange. Se-
cure with 2 additional wood screws, supplied. Be
careful when driving screws into the front flange.
• Install 4 wall screws into the anchors or studs to
complete the hood mounting.
Cabinet I /................................ _ /i_! ..................... / ///
flange
z, , ,z_. Y-4
Mounting _-7-7'... ___ Mounting
screws _' J' _ _ "_i_ rews
° / Additional screws \ _ "_
_// to cabinet flange
Wall screws Wall screws
and washers for and washers for
anchors or studs anchors or studs
[4-ICONNECTING DUCTWORK
• Install the ductwork by making connections in the
direction of the airflow.
• Secure joints in ductwork with sheet metal screws,
being sure to allow clearance for damper flaps to
open and close.
• Wrap all duct joints with aluminized duct tape for
an airtight seal.
• Use aluminized duct tape to secure the flange
connection. Reach inside the hood and push the
damper up to be sure it moves freely.
Aluminized('
duct tape \
Screw
/"
L*
i flow
