Instollotion
Instructions

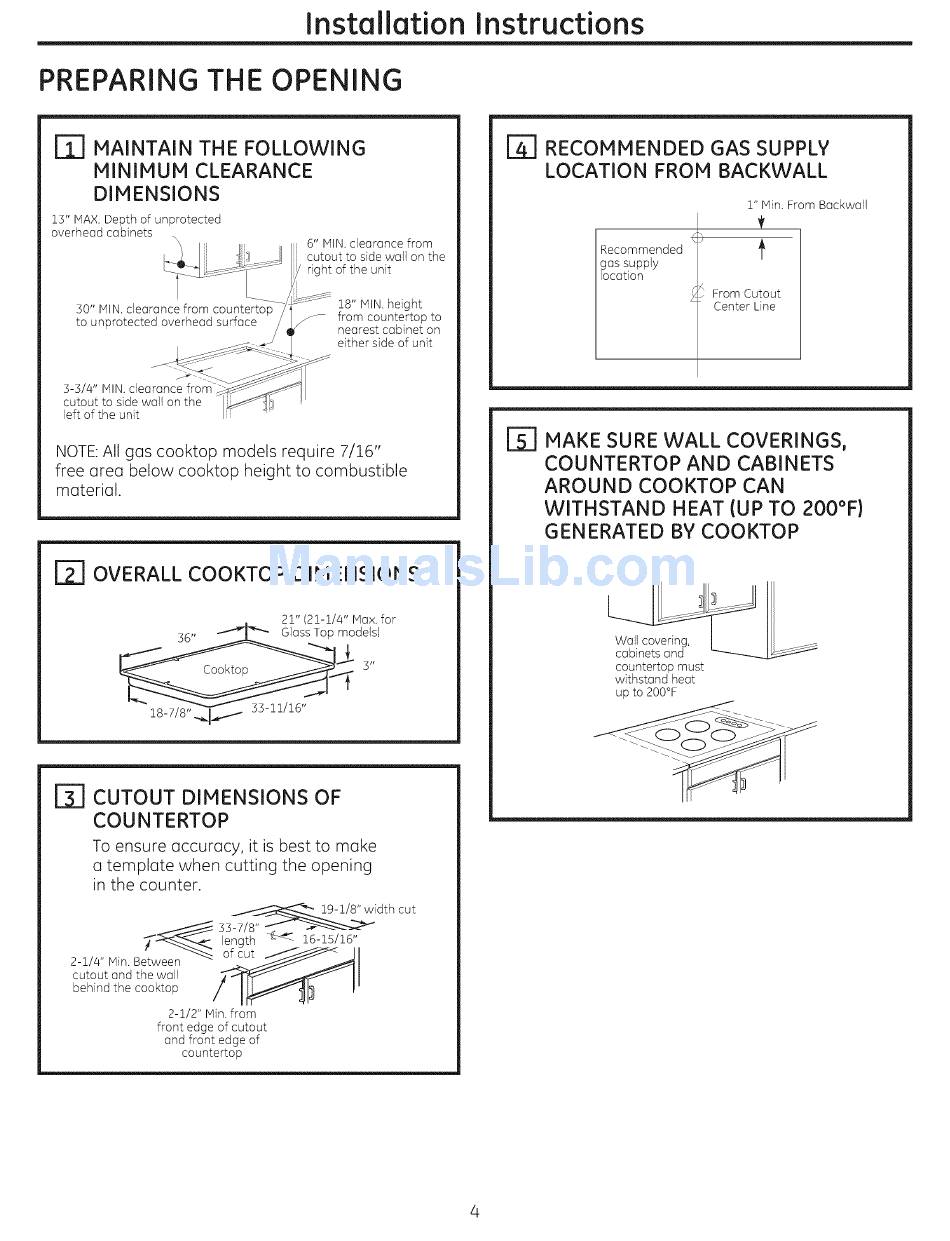

PREPARING THE OPENING
MAINTAIN
THE FOLLOWING
MINIMUM
CLEARANCE
DIMENSIONS
13" IVlAX. Depth of unprotected
overhead
cabinets
\\
B" MIN. clearance from
cutout to side wall on the
right of the unit
30" MIN. clearance
from countertop
to unprotected
overhead
surface
18" MIN. height
from countertop to
nearest cabinet on
either side of unit
3-3/4"
IVllN. clearance
from
cutout
to side wall on the
left of the unit
NOTE:All gas cooktop
models require 7/16"
free area below cooktop
height to combustible
material.
OVERALL COOKTOP DIMENSIONS
.
21" (21-1/4" Max. for
18-7/8" ._I
-_
CUTOUT DIMENSIONS
OF
COUNTERTOP
To ensure accuracy,
it is best to make
o template
when cutting the opening
in the counter.
_-1/_
width cut
?._
ss-7/8"_-c"_ >-_--_e _
length
_
16-15/16"
2-1/4" Min. Between
_ of cut
cutout and the wall
behind the cooktop
2-1/2" Min. from
front edge of cutout
and front edge of
countertop
|
RECOMMENDED
GAS SUPPLY
LOCATION FROM BACKWALL
Recommended
gas supply
location
1" Min. From Backwall
tr
From Cutout
Center Line
[_]
MAKE SURE WALL COVERINGS,
COUNTERTOP AND CABINETS
AROUND COOKTOP CAN
WITHSTAND
HEAT {UP TO 200°F)
GENERATED BY COOKTOP
Wall covering,
cabinets and
countertop must
withstand heat
up to 200°F
