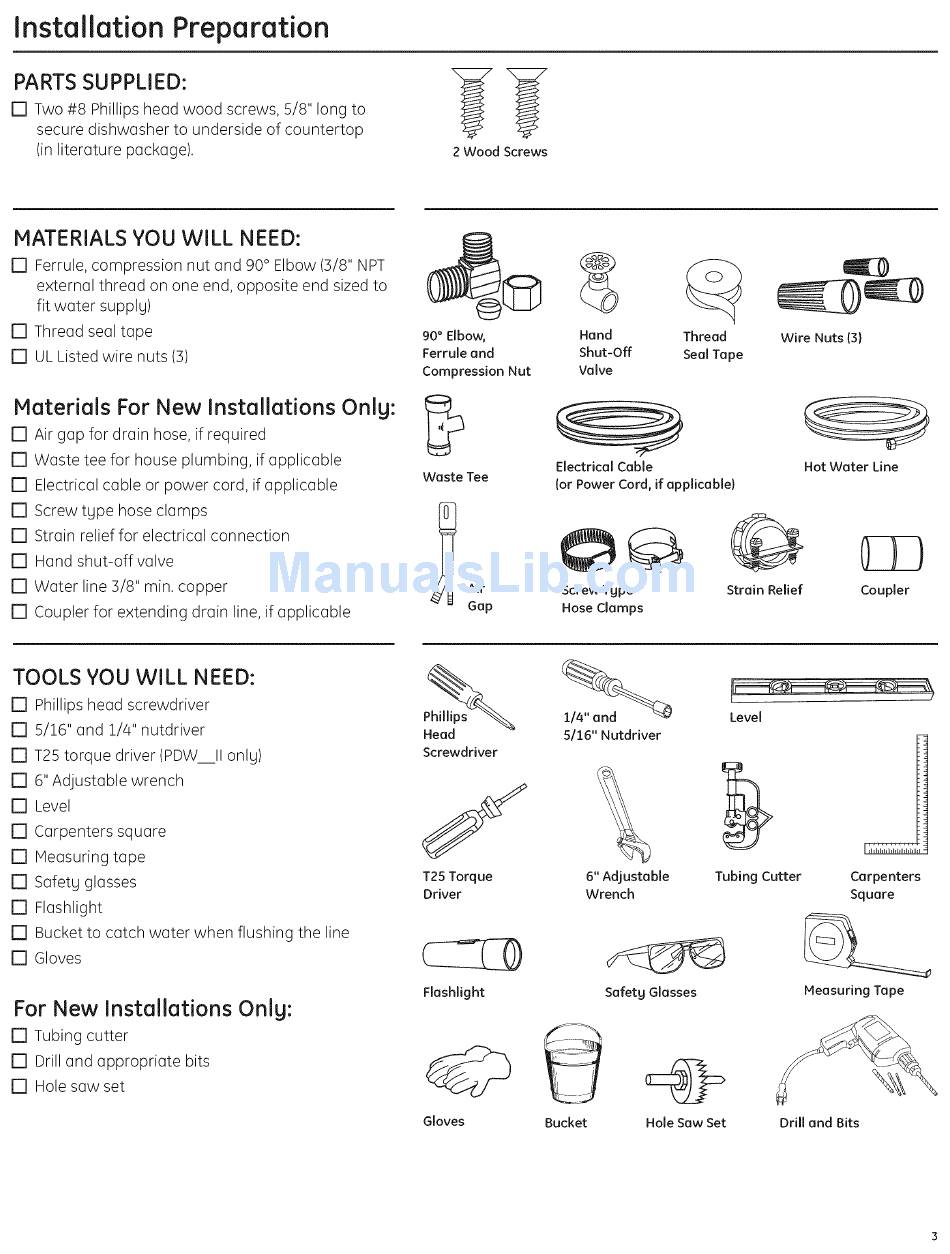

installation Preparation
PARTS SUPPLIED:
[] Two #8 Phillips head wood screws, 5/8" long to
secure dishwasher to underside of countertop
(in literature package).
2 Wood Screws
MATERIALS YOU WILL NEED:
[]
Ferrule, compression nut and 90 ° Elbow (3/8" NPT
external thread on one end, opposite end sized to
fit water supplg)
[] Thread seal tape
[]
UL Listed wire nuts (3)
Materials For New Installations
Only:
[] Air gap for drain hose, if required
[] Waste tee for house plumbing, if applicable
[]
Electrical cable or power cord, if applicable
[] Screw type hose clamps
[] Strain relief for electrical connection
[]
Hand shut-off valve
[] Water line 3/8" min. copper
[] Coupler for extending drain line, if applicable
90° Elbow,
Hand
Thread
Wire Nuts {3)
Ferrule and
Shut-Off
Seal Tape
Compression
Nut
Valve
Waste Tee
Air
Gap
Electrical
Cable
{or Power Cord, if applicable)
Hot Water Line
Screw Tgpe
Strain Relief
Coupler
Hose Clamps
TOOLS YOU WILL NEED:
[]
Phillips head screwdriver
[] 5/!6" and !/4" nutdriver
[] T25 torque driver (PDW Ilonlg)
[] 6" Adjustable wrench
[]
Level
[] Carpenters square
[]
Measuring tape
[] Safetg glasses
[]
Flashlight
[]
Bucket to catch water when flushing the line
[] Gloves
For New Installations
Only:
[] Tubing cutter
[]
Drill and appropriate bits
[]
Hole saw set
Phillips
Head
Screwdriver
f
T25 Torque
Driver
Flashlight
Gloves
5/16" Nutdriver
Level
6" Adjustable
Tubing Cutter
Carpenters
Wrench
Square
Safetg Glasses
Measuring Tape
Bucket
Hole Saw Set
Drill and Bits
