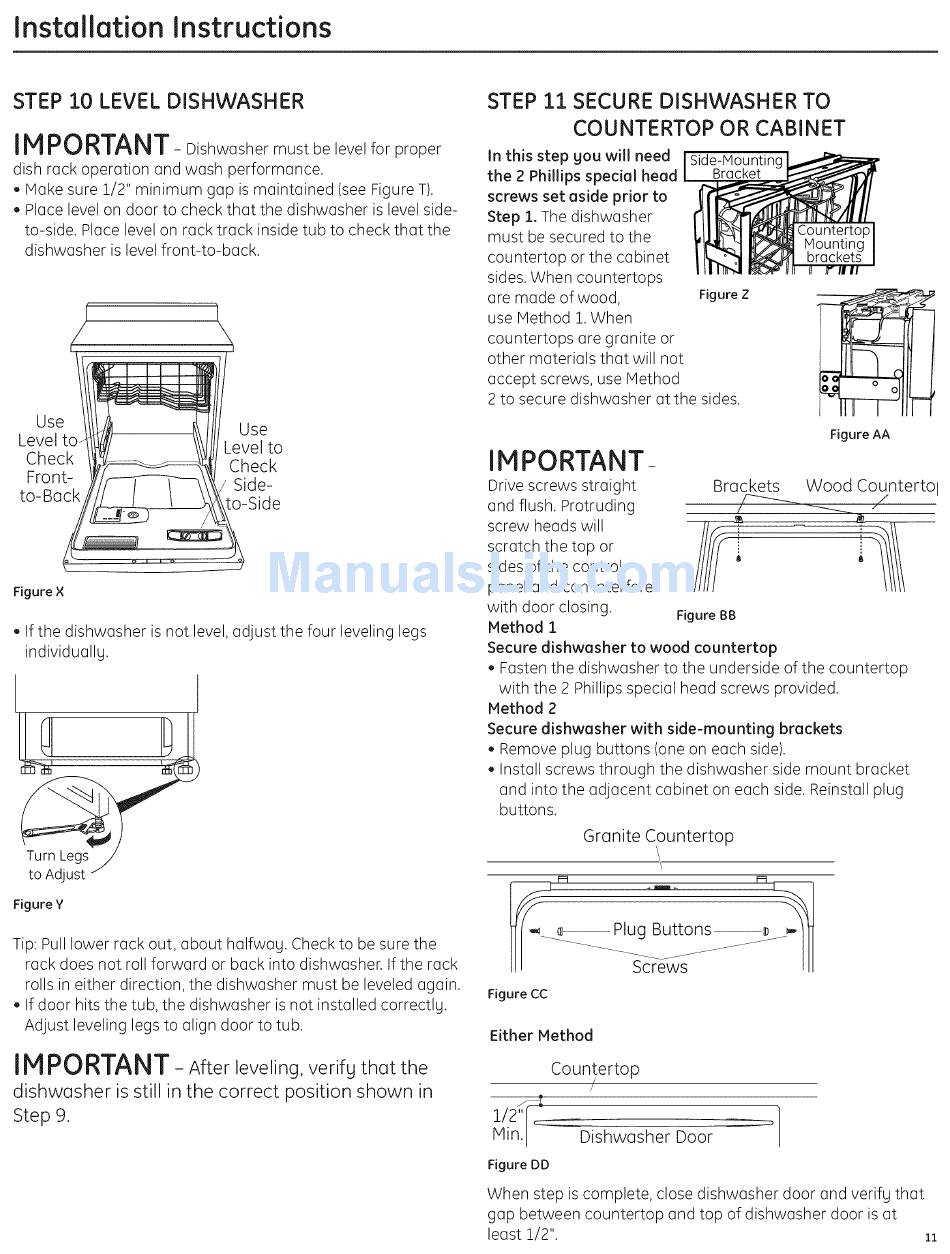

Installation Instructions
STEP 10 LEVEL DISHWASHER
IN PORTANT-
Dishwasher must be level for proper
dish rack operation and wash performance.
• Make sure 1/2" minimum gap is maintained (see Figure T).
Place level on door to check that the dishwasher is level side-
to-side. Place level on rack track inside tub to check that the
dishwasher is level front-to-back.
Use Use
Level to Level to
Check Check
Front- Side
to-Back
Figure X
If the dishwasher is not level, adjust the four leveling legs
individuallg.
Figure V
Tip: Pull lower rack out, about halfwag. Check to be sure the
rack does not roll forward or back into dishwasher. If the rack
rolls in either direction, the dishwasher must be leveled again.
If door hits the tub, the dishwasher is not installed correctlg.
Adjust leveling legs to align door to tub.
IM PORTANT-
After leveling, verifg that the
dishwasher is still in the correct position shown in
Step 9.
STEP 11 SECURE DISHWASHER
TO
COUNTERTOP OR CABINET
In this step gou will need
the 2 Phillips special head
screws set aside prior to
Step 1. The dishwasher
must be secured to the
countertop or the cabinet
sides. When countertops
are made of wood, FigureZ
use Method 1. When
countertops are granite or
other materials that will not
accept screws, use Method
2 to secure dishwasher at the sides.
Side-Mounting
Bracket
IMPORTANT-
Drive screws straight
and flush. Protruding
screw heads will
scratch the top or
sides of the control
panel and can interfere
with door closing. Figure
BB
Method 1
Secure dishwesher to wood countertop
Figure AA
Brackets Wood Counterto I
Fasten the dishwasher to the underside of the countertop
with the 2 Phillips special head screws provided.
Method 2
Secure dishwasher with side-mounting brackets
Remove plug buttons (one on each side).
Install screws through the dishwasher side mount bracket
and into the adjacent cabinet on each side. Reinstall plug
buttons.
Granite Countertop
\
/\
Plug Buttons--_
Screws
Figure CC
Either Method
Countertop
/
1/2"___
Min. I Dishwasher Door
Figure DD
When step is complete, close dishwasher door and verifg that
gap between countertop and top of dishwasher door is at
least 1/2".
