Williams Sound PPA R1600 Specification Sheet

FM Remote Speaker •
Description:
The FM Remote Speaker, model PPA R1600, allows a group of people to listen to the FM broadcast in
a cry room, nursery, office area, or any location where a remote speaker is needed and wiring is diffi-
cult to run. The R1600 features 16 selectable channels on 72-76 MHz, mic and line-level inputs, and
will operate up to 1000 ft (304.8 m) when used with the Williams Sound T35 transmitter
Applications:
Houses of Worship • Conferences • Auditoriums • Music Applications
PPA R1600 Remote Speaker:
Dimensions:
Color:
Weight:
Rated Power:
Frequency Response:
Max SPL @ rated output:
Woofer:
Tweeter:
Crossover:
Tone Control:
Wireless inputs
Wired inputs/output
Mic:
Line:
Line-Out:
AC Power Requirements:
Approvals:
Included w/speaker:
*DISCLAIMER: FCC RULES LIMIT USE OF THIS EQUIPMENT TO AUDITORY ASSISTANCE
FOR THE HANDICAPPED.
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
©2007, Williams Sound Corp. MCAT 060C
Model PPA R1600
12.4"H x 7.1"W x 7.5"D (315mm x 180mm x 190mm)
Black with white legends
9.4lb (4.3kg) approx. with SLD 072 receiver
20 watts continuous
65Hz – 7kHz
101dB @ 1 meter
5.25" (133.35mm) high efficiency magnetically shielded
1" (25mm) dome
1st order passive @ 8kHz
-6dB/octave sliding lowpass (3kHz to 8kHz)
CHANNEL A: SLD 072 FM Receiver, 72-76 MHz*
Operating Freq: 72.1, 72.3, 72.6, 72.8, 74.7, 75.4, 75.7, 75.9, 72.5,
72.2, 72.4, 72.7, 72.9, 75.3, 75.6, 75.8 MHz.
Intermediate Freq: 10.7 MHz
FM Deviation: ± 75 kHz max
Sensitivity: 2 uV at 12 dB SINAD with squelch defeated
Input Overload: 20 mV
Frequency Response: 65 Hz to 7 kHz ± 3 dB
Signal to Noise ratio: 60 dB at 100 uV
Antenna connector: Thread mount for ANT 028 telescoping
antenna. 75 ohms.
CHANNEL B: Empty slot for additional receiver sled
-81dBV (0.089mVRMS) for 1 watt 100KΩ unbalanced, 1/4 " phone
jack, variable
-40dBV (10mVRMS) for 1 watt 10KΩ unbalanced, RCA jack, variable
+15dBV max - RCA jack
User switchable
110-125 / 210-240VAC - 50Hz / 60Hz
UL, C-UL, FCC, RoHS, WEEE
Removable wall-mount bracket with 2 screws and rubber anti-
rotate pads, removable right-angle AC cord, 4 self-adhesive anti-
skid pads, 4 module screws, 1 noise-canceling circuit boards per
receiver sled installed
1

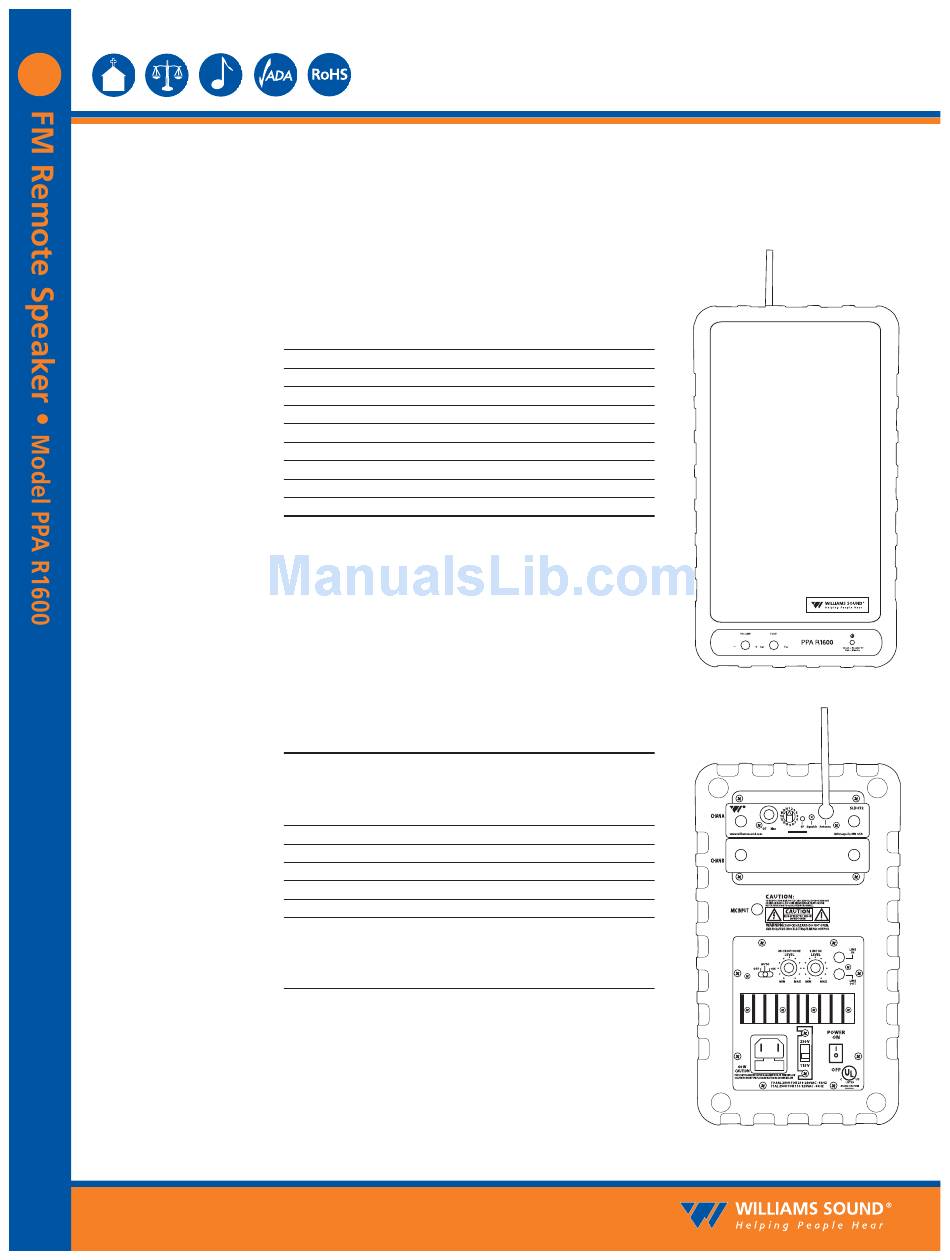

PPA R1600 Front View
PPA R1600 Back View
