Williams Sound PPA R1600 Installation & User Manual

Williams Sound PPA R1600 Installation & User Manual

Fm remote speaker
Hide thumbs Also See for PPA R1600:

Advertisement

I
G
&
NSTALLATION
UIDE
U
M
SER
ANUAL
FM Remote Speaker
Model PPA R1600
RoHS
MAN 135E

Advertisement

loading
Need help?

Need help?

Do you have a question about the PPA R1600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Williams Sound PPA R1600

  • Page 1 & NSTALLATION UIDE ANUAL FM Remote Speaker Model PPA R1600 RoHS MAN 135E...
  • Page 2: Table Of Contents

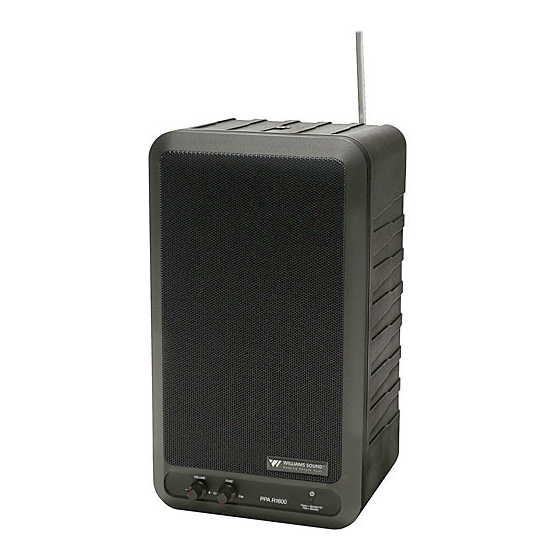

    (2) this device must accept any interference, including interference that may cause undesired operation of the device. YSTEM VERVIEW Thank you for purchasing the PPA R1600 remote speaker from Williams Sound. The PPA R1600 FM remote speaker is designed for use with Williams Sound PERSONAL PA ™ (PPA) Wide-band FM Transmitters, 72-76 MHz.
  • Page 3: Cautions & Safety Instructions

    AUTIONS AND AFETY NSTRUCTIONS CAUTION: CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT THIS PRODUCT IS DESIGNED TO AMPLIFY SOUNDS TO A HIGH REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS VOLUME LEVEL. TO PROTECT YOUR HEARING AND THE INSIDE.
  • Page 4: Features And Controls

    4. CHAN A slot - 72-76 MHz wireless FM receiver sled, model SLD 072. Use with an FM transmitter operating on 72-76 MHz. Williams Sound compatible transmitter models: T35, T27 or T32. A. ON/OFF/AUDIO LEVEL control - this knob turns the receiver power ON or OFF. Turn knob clockwise to increase audio input level;...
  • Page 5 FIG. A1: PPA R1600 R FIG. A2: PPA R1600 F RONT...
  • Page 6: Using The R1600 Speaker

    R1600 R SING THE EMOTE PEAKER ELECT A OCATION The R1600 can be placed on a table top, shelf or other flat surface in the listening area; or it can be threaded on to a microphone stand or mounted on a wall or ceiling (see mounting options, page 8).
  • Page 7 Turn on Power: Turn the rotary AUDIO LEVEL CONTROL (see FIG. B) FIG. C: clockwise to turn the SLD 072 FM receiver ON (you will hear a ‘click’ when the REQUENCY knob is turned from the OFF position). The “RF” LED indicator will illuminate ELECTION HART RED when an RF signal is present.
  • Page 8: Mounting The R1600 Speaker

    Help Williams Sound protect the environment! Please take the time to dispose of your equipment properly. Product Recycling Instructions: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to an electronics recycling center; OR return the product to the factory for proper disposal.
  • Page 9: Warranty

    Williams Sound products are engineered, designed, and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams Sound warrants the PPA R1600 against defects in materials and workmanship for FIVE (5) years. During the first five years from the purchase date, we will promptly repair or replace the PPA R1600.
  • Page 10: Specifications

    PPA R1600 S PECIFICATIONS Dimensions: 12.4"H x 7.1"W x 7.5"D (315mm x 180mm x 190mm) Color: Black with white legends Weight: 9.4lb (4.3kg) approx. with SLD 072 receiver Rated Power: 20 watts continuous Frequency Response: 65Hz – 7kHz Max SPL @ rated output:...
  • Page 12 © 2007, Williams Sound Corp. MAN 135E...
