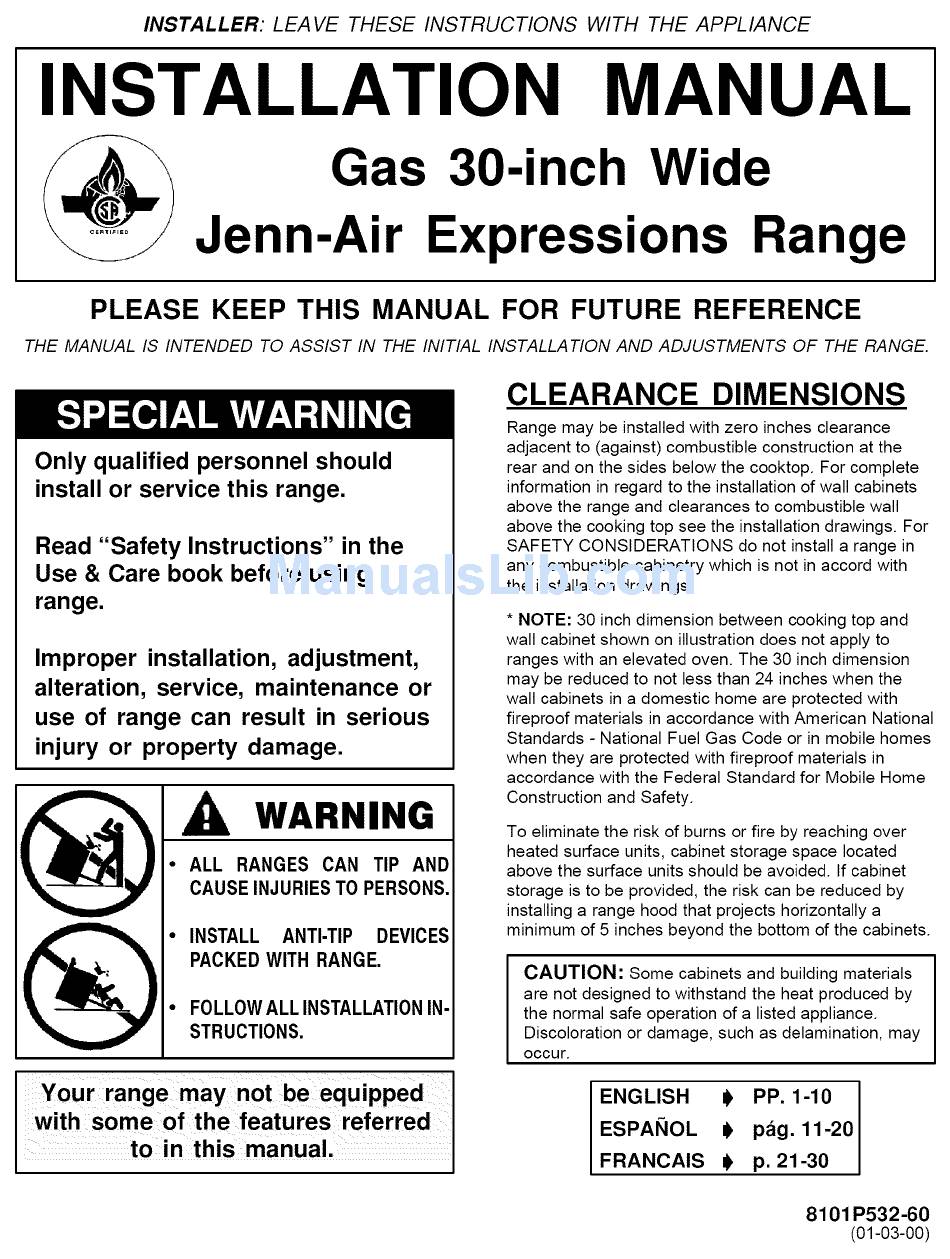

INSTALLER:
LEAVE
THESE
INSTRUCTIONS
WITH THE APPLIANCE
INSTALLATION
MANUAL
Gas 30-inch Wide
Jenn-Air Expressions
Range
PLEASE
KEEP THIS MANUAL
FOR FUTURE REFERENCE
THE MANUAL IS INTENDED
TO ASSIST IN THE INITIAL INSTALLA TION AND ADJUSTMENTS
OF THE RANGE.
Only qualified personnel should
install or service this range.
Read "Safety
Instructions"
in the
Use & Care book before using
range.
Improper
installation,
adjustment,
alteration,
service,
maintenance
or
use of range can result in serious
injury or property damage.
WARNING
ALL RANGES CAN TIP AND
CAUSE INJURIES TO PERSONS.
• INSTALL
ANTI-TIP
DEVICES
PACKED WITH RANGE.
• FOLLOWALLINSTALLATION IN-
STRUCTIONS.
CLEARANCE
DIMENSIONS
Range may be installed with zero inches clearance
adjacent to (against) combustible construction at the
rear and on the sides below the cooktop. For complete
information in regard to the installation of wall cabinets
above the range and clearances to combustible wall
above the cooking top see the installation drawings. For
SAFETY CONSIDERATIONS
do not install a range in
any combustible cabinetry which is not in accord with
the installation drawings.
* NOTE: 30 inch dimension between cooking top and
wall cabinet shown on illustration does not apply to
ranges with an elevated oven. The 30 inch dimension
may be reduced to not less than 24 inches when the
wall cabinets in a domestic home are protected with
fireproof materials in accordance with American National
Standards - National Fuel Gas Code or in mobile homes
when they are protected with fireproof materials in
accordance with the Federal Standard for Mobile Home
Construction and Safety.
To eliminate the risk of burns or fire by reaching over
heated surface units, cabinet storage space located
above the surface units should be avoided. If cabinet
storage is to be provided, the risk can be reduced by
installing a range hood that projects horizontally a
minimum of 5 inches beyond the bottom of the cabinets.
CAUTION:
Some cabinets and building materials
are not designed to withstand the heat produced by
the normal safe operation of a listed appliance.
Discoloration or damage, such as delamination, may
occur.
ENGLISH
0
PP. 1-10
ESPANOL
0
p_lg. 11-20
FRANCAIS
0
p. 21-30
8101 P532-60
(01-03-00)
