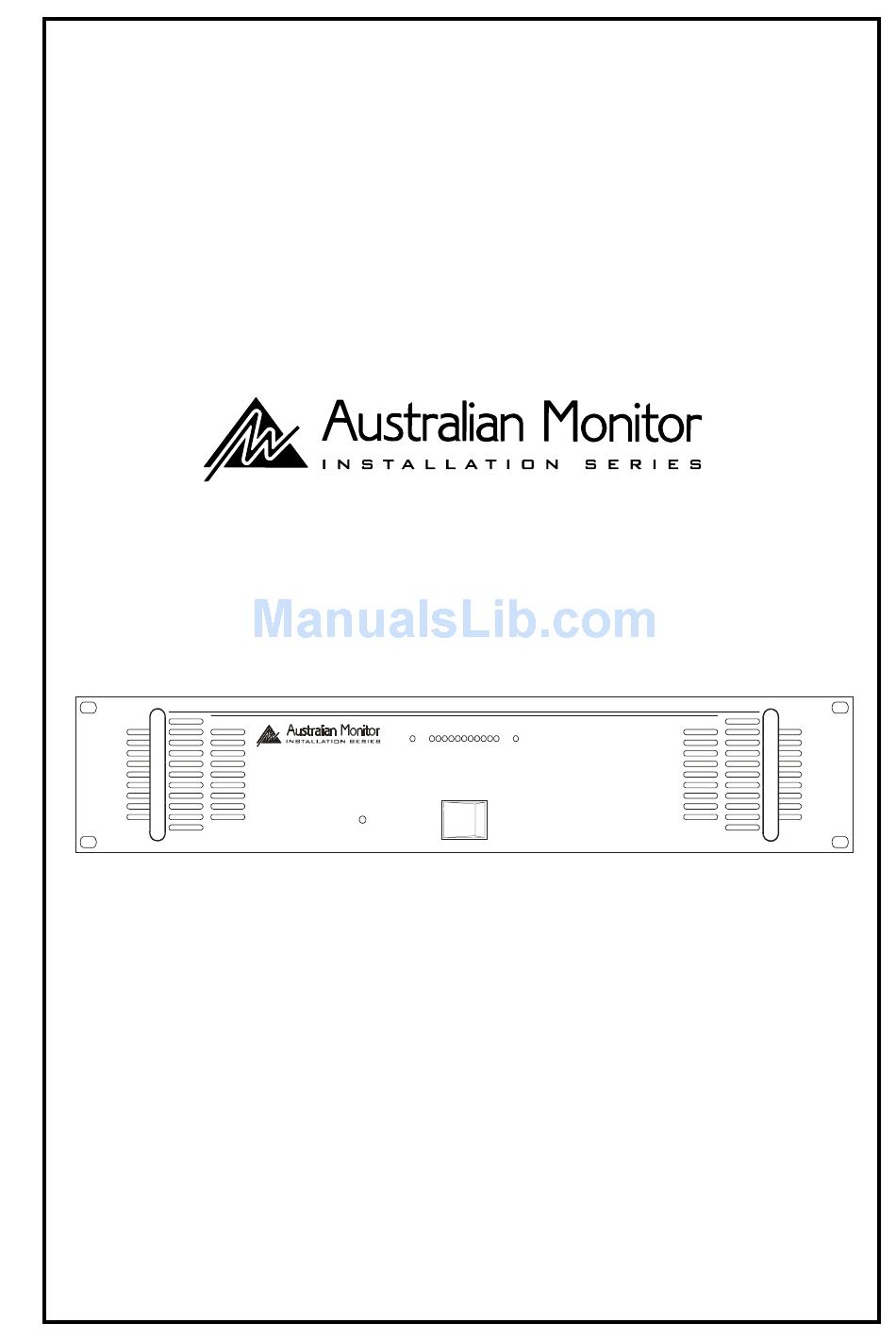

- Page 1 DCM500 500w Power Amplifier D C M 5 0 0 M A IN S T EM P O N 2 4 2 1 1 8 1 5 1 2 9 FA IL Operating Manual...
-
Page 2: Product Description

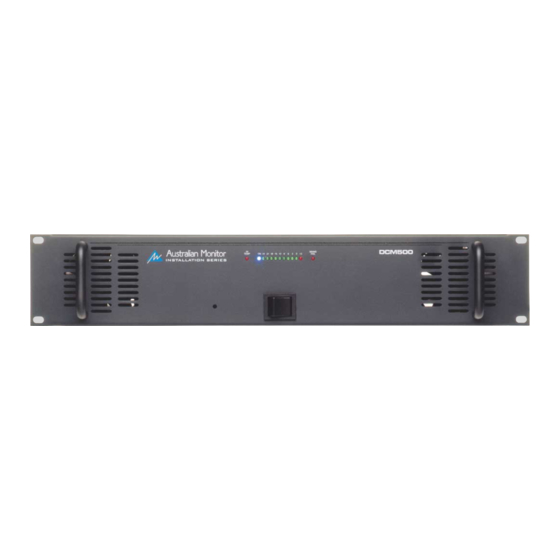

DCM500, 500 Watt Power Amplifier Product Description The DCM500 is a 500 watt power amplifier designed for commercial installations. It can be used for either low impedance (4 ohm) or 70v/100v line speaker systems. The amplifier can be mounted in a standard 19” equipment rack or it can be used on a shelf or table. -
Page 3: Rear Panel Features
Mains Failure: The LED glows red if there is a failure in the AC mains power supply. However, this LED will only glow if there is a DC supply voltage present. If no DC supply voltage is present then this LED will not glow. Output Level VU Meter: A 10 segment LED VU meter is provided to give an indication of the output signal level of the amplifier from -25 to +3 dB. - Page 4 XLR Audio Input and Parallel Output The input to the DCM500 is transformer balanced @ 10K ohms. When signal is connected to one XLR, the other XLR becomes a line level output allowing the input signal to be distributed (split) to other amplifiers. In some projects, the same input may be looped through to multiple amplifiers using this method.
-
Page 5: Important Safety Information
Important Safety Information 13. Do not block fan intake or exhaust ports. Do not 1. Save the carton and packing material even if the equip- operate equipment on a surface or in an environment ment has arrived in good condition. Should you ever which may impede the normal flow of air around the need to ship the unit, use only the original factory pack- ing. - Page 6 Engineered by Audio Telex Communications Pty Ltd, Sydney, Australia A.B.N. 78 001 345 482 Inc in NSW www.audiotelex.com.au Export Sales & Corporate Head Office Private Bag 149, Silverwater NSW 1811 149 Beaconsfield Street, Silverwater NSW 2128 Australia Ph: 61-2- 9647 1411 Fax: 61-2-9748 2537 E-mail: ho@audiotelex.com.au Sydney (NSW &...
