Summary of Contents for Newcon Optik LRB 6000CI

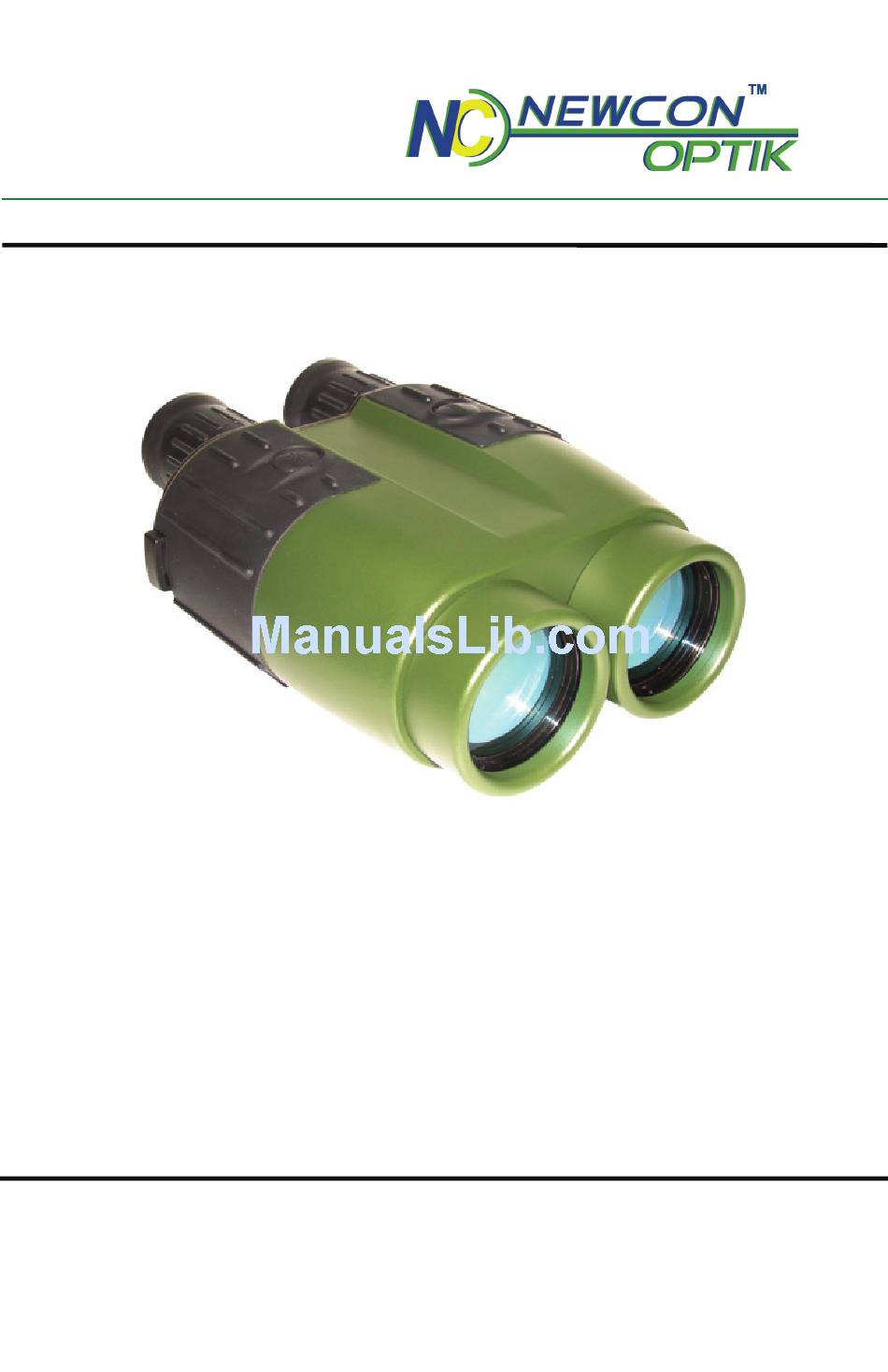

- Page 1 Operation Manual LRB 6000CI LASER RANGE FINDER BINOCULARS 105 Sparks Ave., Toronto, ON M2H 2S5, Canada...
-
Page 3: Important Information
IMPORTANT INFORMATION Read prior to activation You have just purchased a sophisticated electro-optical device that emits invisible laser radiation. To operate it properly, please read this manual carefully. • NEVER direct laser beam at the eyes of people or animals •... -
Page 4: Table Of Contents
TABLE OF CONTENTS 1. BRIEF DESCRIPTION..........2 2. DEVICE APPEARANCE ........3 3. DELIVERY SET............4 4. SPECIFICATIONS ..........5 5. OPERATION INSTRUCTIONS ......6 Installing the battery..........6 Using the Device ............7 Factors affecting measuring distance ....... 7 Target selection logic .......... -
Page 5: Brief Description

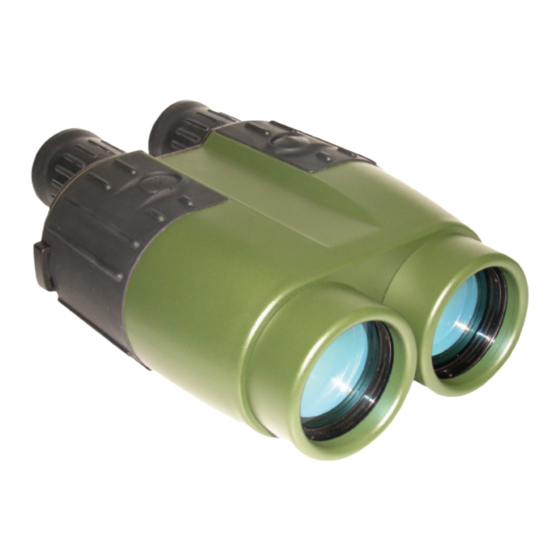

FAILURE TO OBEY THE INSTRUCTIONS WILL VOID THE WARRANTY AND MAY CAUSE INJURY! 1. BRIEF DESCRIPTION LRB 6000CI Laser Rangefinder Binoculars (System) is an advanced laser range finder system that enables instant distance, speed, vertical and horizontal angular measurements. An outstanding optics provides a sharp, clear image under any observation conditions. -
Page 6: Device Appearance
2. DEVICE APPEARANCE Fig. 1. Front view 1 – Eyepieces 2 – Objective / receiving lens 3 – Objective / emitting lens 4 – Dioptric adjustment rings 5 – Mode button 6 – Action button 7 – Body of the device 8 –... -
Page 7: Delivery Set
4 – Measurement result 5 – Gating indicator 6 – Laser active indicator 7 – Ready mode indicator 8 – Setup mode indicator 3. DELIVERY SET Standard delivery set for LRB 6000CI includes: LRB 6000CI 1 pc. Carrying case 1 pc. Neck strap 1 pc. -
Page 8: Specifications
Optional items Remote control module GPS cable Exact delivery set depends on details of a contract or purchase order. 4. SPECIFICATIONS Optics Magnification Objective lens diameter 50 mm Exit pupil diameter 7.1 mm Field of view 7° Type of coating Fully multi-coated optics Interpupillary distance 58-72 mm... -
Page 9: Operation Instructions
Note: Battery in metal casing will diminish compass accuracy. Non- magnetic batteries should be used for the utmost compass performance. LRB 6000CI is equipped with battery monitoring sensor. If display shows “LOW BATTERY” warning when battery voltage falls below... -
Page 10: Using The Device
Using the Device The LRB 6000CI operational procedures are design to allow the user to use most applicable options in the fastest time possible. To activate it, press and hold Action button (6, Fig.1) for one second. At start the unit comes into Ready to Measure mode indicated by the word ‘READY’... -
Page 11: Target Selection Logic
Target selection logic On its way towards the target the laser beam may be reflected from various objects, thus decreasing ranging accuracy. The smaller, the farther, and the less reflective is the target – the higher is the possibility of obtaining an incorrect measurement. To improve accuracy the unit has a built-in target selection logic that allows user the option of choosing which target to range: the nearest (‘first’), the farthest (‘last’), or the most reflective (‘auto’). -
Page 12: Compass Calibration
Std – allows the user to select single action measurements: o Distance only o Compass Only o Elevation Only o Speed Only o Height Only o Speed + Distance o Distance +Compass + Elevation Unit – allows the user to select units of desired measurements, o Distance from M to Y o Compass &... -
Page 13: Setting Interface Format
Keeping the unit horizontally, perform one full rotation around vertical axis within half a minute and then one full rotation around vertical axis with device upside down during half a minute. If one rotation does not restore calibration – perform two rotations. The normal compass functioning will be restored. -
Page 14: Data Recall Mode
Data Recall mode In Data Recall mode results of the last 10 measurements can be displayed. Measurement results are saved in on-board memory in sets depending on the parameters set for measuring, for instance, if only distance is measured - the set will consist of one number, if distance and azimuth are measured –... -
Page 15: Gps Interconnectivity
GPS interconnectivity LRB 6000CI can transmit the acquired data to a GPS receiver using DB15 connector and PLGR/DAGR protocol. An optional cable is required. To work with GPS, perform the following steps: Switch the rangefinder to PLGr mode; Choose dFLt measuring mode;... -
Page 16: Best Measuring Technique
6. BEST MEASURING TECHNIQUE Laser range finder measures distance by catching laser beam reflected from the target. Everything that improves reflection increases the measurement reliability and maximum range. 1. Use tripod when ranging remote targets. The longer is the distance, the greater is the beam shift due to hand tremor. -
Page 17: Troubleshooting
• Do not touch optical surfaces. Doing so may damage the anti- reflection coating. • Clean optical surfaces only with professional camera lens cleaning supplies. • Clean the exterior of the unit with a soft clean cloth. • Keep the unit away from heating appliances and central heating. •... -
Page 18: Customer Support
Postage, insurance, and shipping costs incurred while presenting your NEWCON product for warranty service are your responsibility. If shipping from North America please include a cheque or money order payable to NEWCON OPTIK for the amount of US$15.00 to cover handling and return shipping. 10. CUSTOMER SUPPORT Should you experience any difficulties with your NEWCON OPTIK product, consult the enclosed manual. -
Page 19: Quality Certificate
11. QUALITY CERTIFICATE Serial number _____________________________ The unit indicated above has passed the quality inspection. Production date Quality Inspector Purchase date... - Page 20 NEWCON OPTIK™ 2010...
