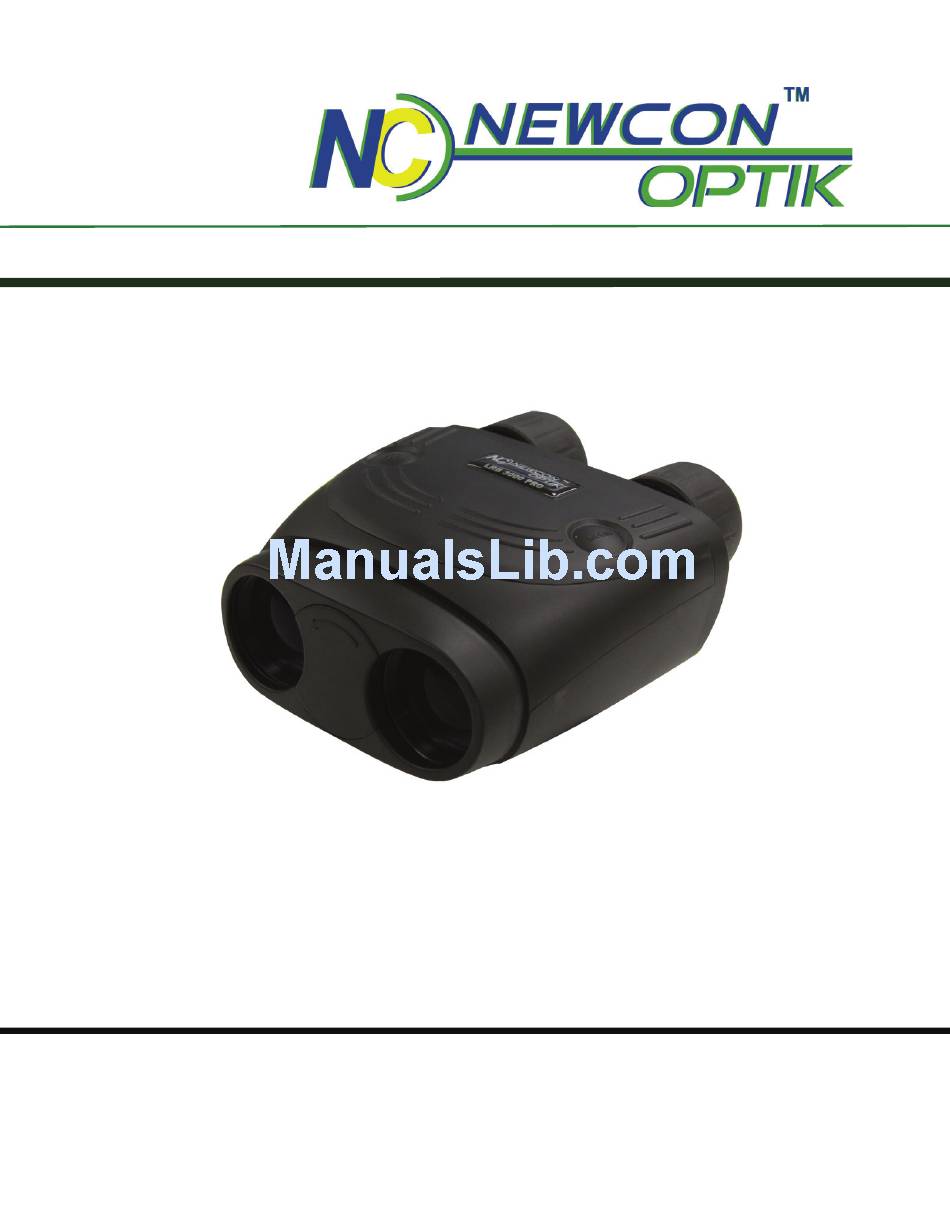

- Page 1 Operation Manual LRB 3000PRO LASER RANGE FINDER BINOCULARS NSN: 1240-20-004-5448 105 Sparks Ave., Toronto, ON M2H 2S5, Canada...
-
Page 3: Important Information
IMPORTANT INFORMATION Read prior to activation You have just purchased a sophisticated electro-optical device that emits invisible laser radiation. To operate it properly, please, read this manual carefully. NEVER direct laser beam at the eyes of people or animals ... - Page 4 Never aim the unit at highly reflective objects like mirrors and retroreflective surfaces, which are in close proximity to the laser rangefinder. This can lead to the permanent damage of the photoreceiver incorporated into the device.
-
Page 5: Table Of Contents
TABLE OF CONTENTS BRIEF DESCRIPTION ........2 Principle of operation ..........2 Key Features ............... 3 DEVICE APPEARANCE ........4 DELIVERY SET ..........7 Standard delivery set ........... 7 Optional accessories ............ 7 ... -
Page 6: Brief Description

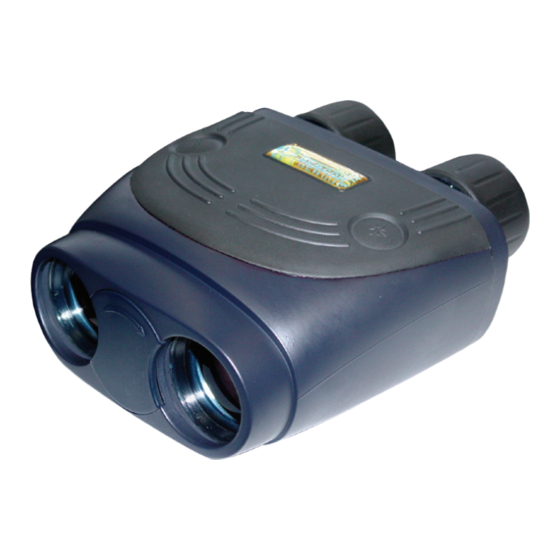

CAREFULLY READ ALL THE INSTRUCTIONS BEFORE USING! FAILURE TO OBEY THE INSTRUCTIONS WILL VOID THE WARRANTY 1. BRIEF DESCRIPTION The LRB 3000PRO Laser Rangefinder Binoculars (System) is an advanced laser range finder that enables instant distance, speed, elevation and azimuth measurements. The unit complies with CFR 21, Part 1040.10 and Part 1040.11. -
Page 7: Key Features
A built-in digital inclinometer measures the elevation simultaneously with ranging, in its turn elevation measurement allows height calculation. The unit also provides azimuth readings. Key Features Modern digital circuitry allows targeting through most types of glass Speed detector ... -
Page 8: Device Appearance
2. DEVICE APPEARANCE Fig. 1. Front view 1 – Eyepieces 2 – Objective lens 3 – Mode button 4 – Action button 5 – Battery compartment cover 6 – Rubber grip... - Page 9 Fig. 2. Rear view 1 – Eyepieces; 7 – Interpupillary distance adjustment lever; 8 – Identification and certification label (located at the bottom):...
- Page 10 Fig. 3 Display 2 – Reticle (either -¦- or ) 1 – Low battery indicator 3 – Units of measurement 4 – Measurement result 5 – Laser active indicator 6 – Ready mode indicator 7 – Setup mode indicator...
-
Page 11: Delivery Set
3. DELIVERY SET Standard delivery set LRB is supplied in the following assembly: LRB 3000PRO Carrying case Neck strap Cleaning cloth Operation manual 9V non-magnetic Lithium battery Warranty card Optional accessories Hard case 4. SPECIFICATIONS Optics Magnification Objective lens diameter 40 mm Exit pupil diameter 5.7 mm... - Page 12 Range Finder Laser Class 1, eye safe, 905 nm Measuring range 10 – 3,000 m 1 m Accuracy First, last and auto target selection Meters/Yards display Last 10 readings recall Reticle -¦- or Inclinometer Measuring elevation range ±80 Accuracy ±1 Speed measurement...
-
Page 13: Operation Instructions
Environmental Operational temperature range -25 / +50 C (-13 / +122 Storage temperature range -25 / +65 C (-49 / +149 Mechanics Tripod thread ¼” x 20 TPI Weight without battery 970 g Dimensions 158x145x69 mm *stated accuracy is shown as RMS data 5. -
Page 14: Measurement Procedure
Standard 9V battery may be used as a short term solution. It will last for about 30-45 minutes of continuous operation. A 9V Lithium non-magnetic battery guarantees over 5,000 shots at room temperature. It is recommended for the field usage. In addition, this battery does not influence the internal compass. -
Page 15: Factors Affecting Measuring Distance
by user. For full list of Mode options please refer to Operation and Service modes Factors affecting measuring distance Though maximum measurement distance depends on target reflectivity, weather conditions and other conditions, for most targets the unit will provide accurate ranging for up to 3,000 meters. -
Page 16: Target Selection Logic
Target selection logic On its way towards the target laser beam may reflect from various objects, thus decreasing ranging accuracy. The smaller, the farther, and the less reflective is the target – the higher is the possibility of obtaining an incorrect measurement. -
Page 17: Operation And Service Modes
To activate the Scanning regime press and hold the A button in the Ready mode. The unit will work in the Scanning regime while the A button is pressed. The Scanning or Individual Measurement regimes are available for any selected mode of measurement. When two parameters are measured in the Scanning regime though both will be quickly displayed, the second one may be difficult to register by eye. - Page 18 Height Only (H) Speed + Distance (Sd) Distance +Elevation (dE) Unit – allows user to select units of measurements, Distance from M to Y Compass from Mils to Degrees Speed from KMH to MPH** rEc – allows data recall of the last 10 measurement results, CLr –...
-
Page 19: Accuracy Correction
Accuracy correction If the System produces any measurement errors that lie beyond unit specification, it may be an indication that unit requires calibration similar to one conducted at production level. To do accuracy correction, please select Corr from CAL menu. Perform correction according to required measurement parameters by pressing Action button, see table below: Active mode of... -
Page 20: Compass Calibration
3 – Unit shall be well levelled with deviation from 0 not more than ±0.75 degrees. Horizontal direction shall be to Magnetic North (not True North). If devices detects large installation errors (unit is not well levelled or not aimed to the North), then LCD will show result “444”... -
Page 21: Data Recall Mode
Data Recall mode In Data Recall mode results of the last 10 measurements can be displayed. Measurement results are saved in on-board memory in sets depending on the parameters set for measuring, for instance, if only distance is measured - the set will consist of one number, if distance and azimuth are measured –... -
Page 22: Best Measuring Technique
6. BEST MEASURING TECHNIQUE Laser range finder measures distance by catching laser beam reflected from the target. Everything that improves reflection increases the measurement reliability and maximum range. 1. Use tripod when ranging remote targets. The longer is the distance, the greater is the beam shift due to hand tremor. 2. -
Page 23: Storage And Maintenance
7. STORAGE AND MAINTENANCE The unit is a sophisticated precision optical instrument equipped with laser and electronics. Therefore, it should be handled with due care. Keep it away from direct sunlight. Avoid impacts, jolts, dust, moisture, and sharp changes of temperature. -
Page 24: Troubleshooting
8. TROUBLESHOOTING Ranging does not work. The display is transparent. Check the charge of the battery. Replace it if it is weak. The ranging mode does not work. The display shows results of the last measurement or is transparent. Wait for 16 seconds, and press the Action button again. Compass shows zero at any direction. -
Page 25: Warranty
Service. Postage, insurance, and shipping costs incurred while presenting your NEWCON product for warranty service are your responsibility. If shipping from North America please include a cheque or money order payable to NEWCON OPTIK for the amount of US$15.00 to cover handling and return shipping. -
Page 26: Customer Support
9am-5pm, Monday - Friday, Eastern Standard Time. At no time should equipment be sent back to Newcon without following the instructions of our technical support department. NEWCON OPTIK accepts no responsibility for unauthorized returns. To locate NEWCON Authorized Dealer call: Tel: (416) 663-6963 Fax: (416) 663-9065 Email: newconsales@newcon-optik.com... -
Page 27: Quality Certificate
QUALITY CERTIFICATE Serial number _____________________________ The unit has passed the quality inspection. Production date Quality Inspector Purchase date... - Page 28 NEWCON OPTIK Printed in Canada...
