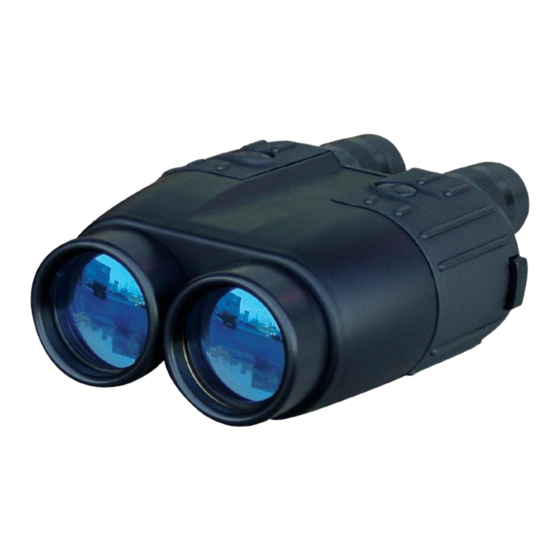

Newcon Optik LRB 7x50 Operation Manual
Laser range finder binocular
Hide thumbs
Also See for LRB 7x50:
- Operation manual (10 pages) ,
- Operation manual (28 pages) ,
- Operation manual (10 pages)
Related Manuals for Newcon Optik LRB 7x50
Summary of Contents for Newcon Optik LRB 7x50
- Page 1 Operation Manual LRB 7x50 LASER RANGE FINDER BINOCULAR In USA: 3310 Prospect Ave. Cleveland, OH 44115 In Canada: 1183 Finch Ave. W., Suite 302, Toronto, ON M3J 2G2 Canada NEWCON 2001© Printed in Canada...
-
Page 2: Important Information
• Caution - the use of optical instruments with this product will increase eye hazard 10. QUALITY CERTIFICATE The LRB 7X50 is suited for usage. Production date _____________________________ Serial number ______________________________ Quality Inspector signature _____________________ Purchase date ______________________________... -
Page 3: Table Of Contents
In Canada: 1183 Finch Ave. W., Suite 302, Toronto, ON M3J 2G2 From international: 1183 Finch Ave. W., Suite 302, Toronto, ON M3J 2G2, CANADA Features of the LRB 7X50 Laser Range Finder Binocular • Latest digital circuitry allows targeting through most types of glass •... -
Page 4: Warranty
Simultaneously, the user can measure the distance to an object without loosing sight of the target. Therefore, the LRB 7X50 substitutes a need for two separate devices (binocular and range finder) combining both requirements in a single device. -
Page 5: Troubleshooting
7. TROUBLE SHOOTING The range-measuring mode does not work. Press the Action Button again. Check that the batteries are installed properly. Check the charge of the batteries. Replace if they are weak. Do not use old batteries with new ones. How can I clear last reading before making next measurement? Direct the unit’s LCD reticule at the new target, press the Action button. -
Page 6: Supplied Accessories
1 – Eyepieces; 9 – Interpupillary distance adjustment lever 10- Identification Label (Located on the Bottom) Fig. 2 3. SUPPLIED ACCESSORIES LRB 7X50 is supplied in the following assembly: - Device - Carrying Case - Neck Strap - User’s manual... -
Page 7: Technical Characteristics
• TARGET REFLECTION MED - when the number of steady received reflected signals is in medium range and enough to make positive conclusion about the measured distance; • TARGET REFLECTION HIGH - when the number of steady received reflected signals is qualified to be enough to make reliable conclusion about the measured distance. - Page 8 2 . R a n g e F i n d e r Type Class 1 eye safe, 905nm Measuring Range, m Accuracy, m ±1 ± 0.1% Resolution, m Measurement time, sec Meters/Yards display Last 10 readings recall Reticule shape ( + or □) Target quality indicator Scan Mode Speed Finder...
-
Page 9: Operation Instructions
5. OPERATION INSTRUCTIONS b. Mode selection state Pressing MODE button (5) (fig. 1) when the System is in Liquid Crystal Display (LCD) READY mode brings the System to the Mode selecting state. Pressing the Mode button can sequentially scan the Modes. The Mode under selection is being indicated on the Display by flashing of the selectable feature. -
Page 10: Preparing The Device For Operation
5.1. Preparing the Device for Operation • Unbolt a screw and open battery compartment cover at the bottom of the device. • Insert one 9V battery (sold separately) into the battery compartment observing correct polarity. • Close up the battery compartment cover, tighten the screw. After changing the battery, it is recommended to run the CL (CLEAR) mode (refer mode selection procedure).
