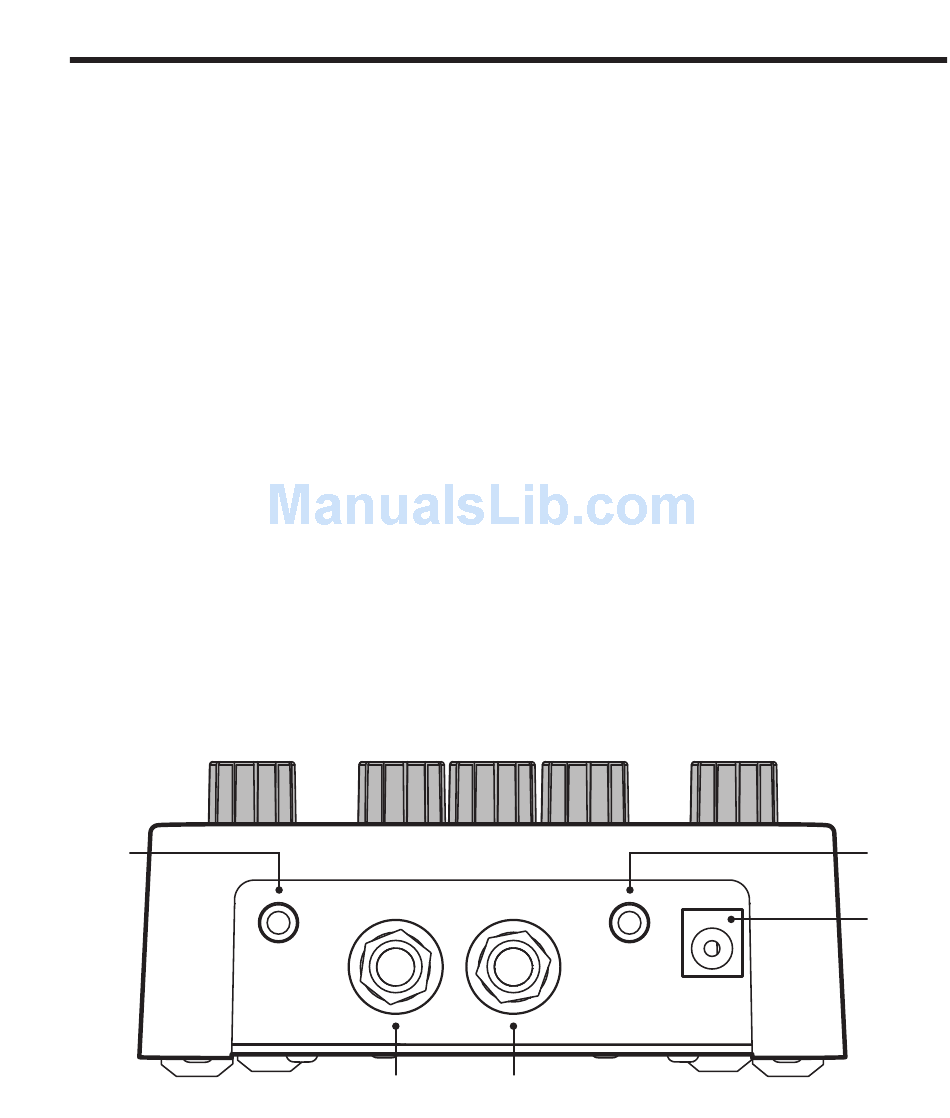

CONNECTIONS
GUITAR IN (A): Connect your guitar or other instrument here using a
standard mono ¼" cable.
GUITAR OUT (B): Connect this to your amp, pedal, or other audio device.
MULTI-FUNCTION IN (C) (optional): The multi-function input is a flex-
ible control input for use with external controllers. It can accept digital
or analog signals, which allow the OFD to interface with the following
accessories:
SA110/SA115 Hot Hand Wireless Adapter
•
SA111 Hot Hand Wired Sensor
•
SA161 Source Audio Dual Expression Pedal
•
Source Audio Soundblox 2 MIDI Adapter
•
MULTI-FUNCTION OUT (D) (optional): Use a Source Audio daisy-chain
cable to connect this jack to the sensor input of another Soundblox pedal
providing simultaneous control of all your Source Audio pedals.
9V DC (E): Connect the included 9 Volt DC power supply here. Use of a
non-Source Audio power supply may cause damage.
C
FUNCTION
6 | Connections
GUITAR IN
MULTI-
IN
A
GUITAR OUT
MULTI-
FUNCTION
OUT
B
9V DC
D
E
