These buttons are located at the cable right next to
the BNC and DC power connectors.
Packing List:
‐ 1 Arlen Screwdriver
‐ 2 SDI‐BNC Connectors
‐ 1 kit with screws and anchors
User's Manual

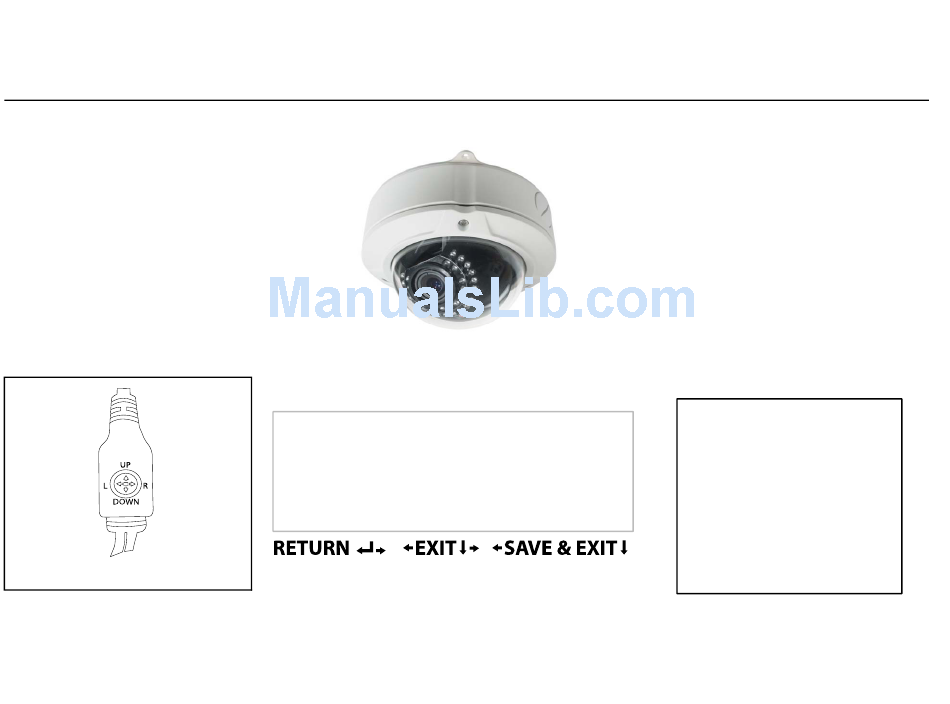

CD259HD‐SDI
Press the center Button to Enter the OSD Menu.
Move Up or Down to move thru the menu options and left or right to
change values on the menu,
Press the center button again to get into sub menus.
Always remember to save before you exit.
When you Highlight the Return Option, press the right button to either exit ,
save and exit or just return.
‐ 1 Specification Sheet
‐ 1 mini flat screwdrive
‐ 1 DC connector
MENU
LENS
EXPOSURE
WHITE BALANCE
DAY&NIGHT
SPECIAL
COMMUNICATIONS
SYSTEM
EXIT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for COP-USA CD259HD?SDI
Summary of Contents for COP-USA CD259HD?SDI
- Page 1 User's Manual CD259HD‐SDI MENU Press the center Button to Enter the OSD Menu. LENS Move Up or Down to move thru the menu options and left or right to EXPOSURE change values on the menu, Press the center button again to get into sub menus. WHITE BALANCE Always remember to save before you exit. DAY&NIGHT When you Highlight the Return Option, press the right button to either exit , save and exit or just return. IMAGE SPECIAL COMMUNICATIONS SYSTEM These buttons are located at the cable right next to EXIT the BNC and DC power connectors. Packing List: ‐ 1 Arlen Screwdriver ‐ 1 Specification Sheet ‐ 2 SDI‐BNC Connectors ‐ 1 mini flat screwdrive ‐ 1 kit with screws and anchors ‐ 1 DC connector ...
- Page 2 1. LENS MANUAL BRIGHT (0‐50) BRIGHT (0‐50) MANUAL Select Manual Lens DC Select Auto Iris Lens 2. EXPOSURE 1. SHUTTER Auto, (1/30s),(1/60s),(1/120s),(1/200s),(1/400s),(1/1000s),(1/1500s),(1/3000s),(1/6000s) 2.AGC HIGH / LOW 3. SENSE‐UP OFF / ON 4.DEFOG OFF / ON (0~8) 5.COLOR GAIN 0~11 6.RETURN SHUTTER Select the shutter speed AGC Increases Brightness , the higher the setting the more noise will get on the video SENSE‐UP This provides higher sensitivity in low light conditions and may eliminate the need for artifical light. DEFOG This function works as a defogger, it clears and give more contrast to the image 3. WHITE BALANCE NORMAL OUTDOOR INDOOR AUTO EXIT This Function adjusts the White Balance of the camera according to the environment where the camera is located...
- Page 3 4. DAY&NIGHT AUTO 1.C2B_TH: 0~99 ( Color to Black and white: Adjust the brightness of the lighting where the mode switch occurs 2.C2B_DEL 0~11 ( color to Black and white: trigger delay) 3.B2C_TH: 0~99 (Black and white to Color: Adjust the brightness of the lighting where the mode switch occurs 4.B2C_DEL 0~11 (Black and white to color: trigger delay) EX T EXT_DELAY 0~11 (External Day&Night Delay ) COLOR (always Color) B&W (always B&W) RETURN 5. IMAGE 1.FREEZE OFF/ON 2.H.MIRROR OFF/ON 3.V.MIRROR OFF/ON 4.D.ZOOM OFF ON 1.ZN(0‐230) 2.MOVE NO/YES 5.SHARP(0~29) OFF/ON 6 PRIVACY ZONE 6.PRIVACY ZONE 1 ZONE 1.ZONE...
- Page 4 6. SPECIAL 1.SIMPLE WDR OFF/LOW/MID/HIGH 2.ADVANCE WDR ON/OFF 1.LEV(255) 0~255 2.COLOR SEL 3.WDR GSEL 4.WDR AREA SX(0‐240) WIDTH‐LEFT EX(0‐240) WIDTH‐RIGHT SY(0‐135) HEIGHT‐TOP EY(0‐135) HEIGHT‐BOTTOM 5.BRIGHT 3.BLC 1.LEVEL LOW/MID/HIGH/ULTRA 2.AREA SX(0‐116) WIDTH‐LEFT EX(0‐116) WIDTH‐RIGHT SY(0‐64) HEIGHT‐TOP EY(0‐64) HEIGHT‐BOTTOM 4.3D_NR OFF / ON_L / ON_M / ON_H/ AUTO_L / AUTO_M / AUTO_H 5.MOTION 5.MOTION OFF OFF 1.SENSITIVITY(0~99) 2.AREA SX(0‐9) WIDTH‐LEFT EX(0‐9) WIDTH‐RIGHT...
- Page 5 7. COMMUNICATIONS 1.CAMM TITLE ON/OFF 2.CAM ID 0~255 3.RS‐485 PELCO‐D/P 4.BAUDRATE 2400/9600/4800 5.DISP CAM ID ON/OFF RETURN 8. SYSTEM 1.LANGUAGE ENGLISH / CHINESE 2.FORMAT 1080P30 / 1080P25 3.IRIS OFFSET ‐9 ~ +9 4.SW_VER 5.FACTORY ORG 6.RETURN...
