COP-USA CM25-H User Manual

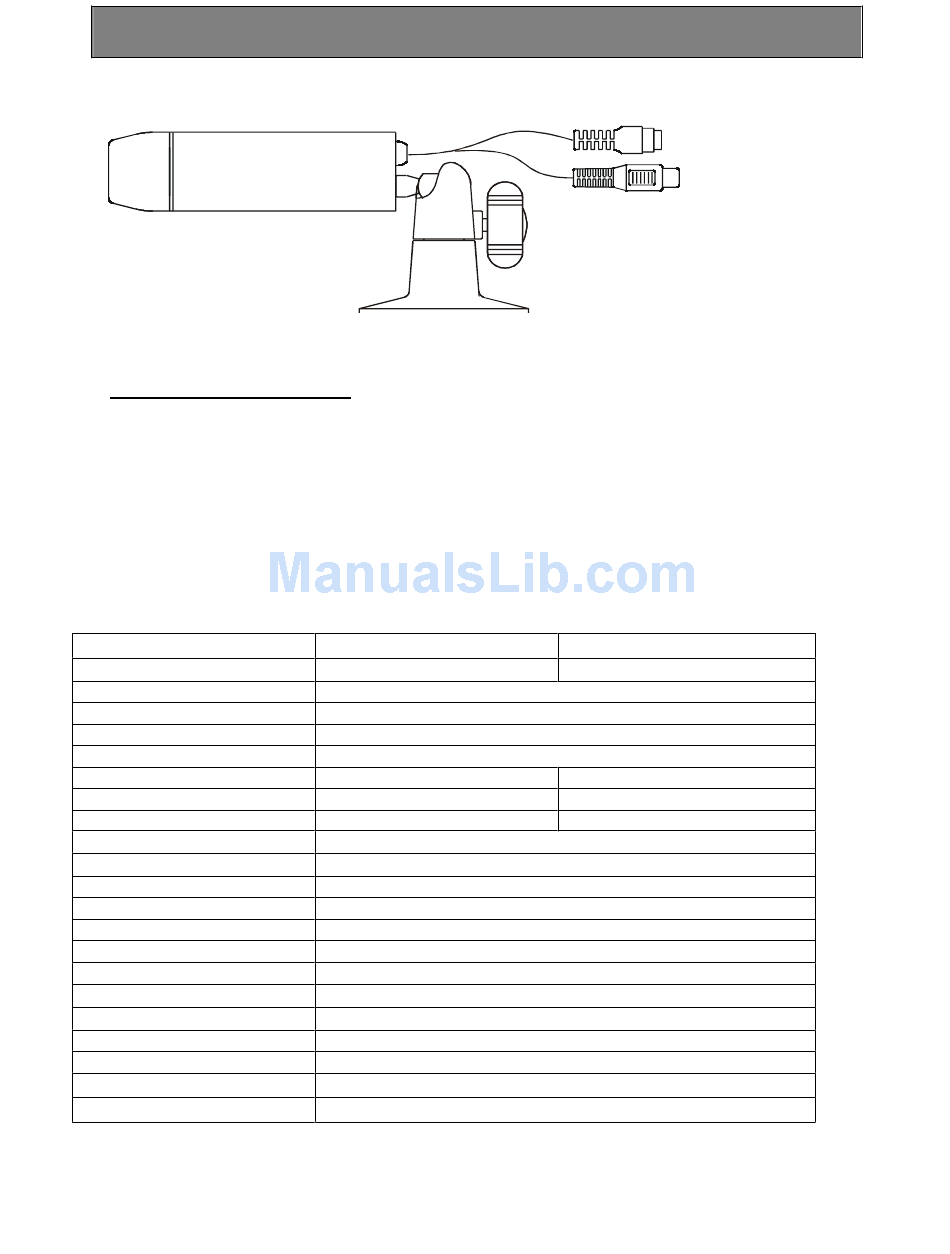

High Resolution CM25-H Finger Style Water Proof Color CCD Camera
Caution for Installation
*
1. PLEASE USE ONLY 12V REGULATED POWER SUPPLIES!
2. Avoid places where there is direct sunlight.
3. Do not directly touch the CCD element. If necessary, use a soft cloth moistened with alcohol to
wipe off the dust.
4. Avoid places where temperatures exceed 50
5. Avoid places where there are frequent vibrations or shocks.
6. When any abnormalities occur, make sure to unplug the unit and contact your local dealer
Specification
*
ITEMS
TV SYSTEM
PICK UP DEVICE
PICTURE ELEMENTS
HORIZONTAL RESOLUTION
MINI ILLUMINATION
HORIZ. SYNC.FREQUENCY
VERTICAL FREQUENCY
CLOCK FREQUENCY
SCANNING SYSTEM
WHITE BALANCE
SIGNAL TO NOISE RATIO
ELECTRONIC SHUTTER
LENS
VIDEO OUTPUT
GAMMA. CORRECTION
DIMENSIONS D×L ?
WEIGHT g.
POWER SUPPLY
POWER CONSUMPTION
STORAGE TEMPERATURE
OPERATING TEMPERATURE
Remark:
This camera can only be operated with a REGULATED 12V DC Power Supply.
Non-regulated adapters may damage the camera, voiding its warranty.

User Manual

o
C or more.
CM25-H
NTSC
1/3" SONY COLOR CCD IMAGE SENSOR
768 H x 494 V
480 Lines
0.1 Lux
15.734 KHz -
60 Hz
19.0699 MHz
2:1 INTERLACE
Auto Trace Mode
48 dB (AGC Off) Over
1/60~1/100,000 sec.
3.6 mm / F 2.0
1 V p-p, 75 Ohms
0.45
F 26×89
170
12VDC (+/-0.5)
150mA
– 30 to +60?
– 20 to +55?
DC JACK
DC 12V INPUT
VIDEO OUTPUT
RCA
CM25-H-W (White)
NTSC
15.734 KHz
60 Hz
19.0699 MHz
