COP-USA CD259IP-9533R User Manual

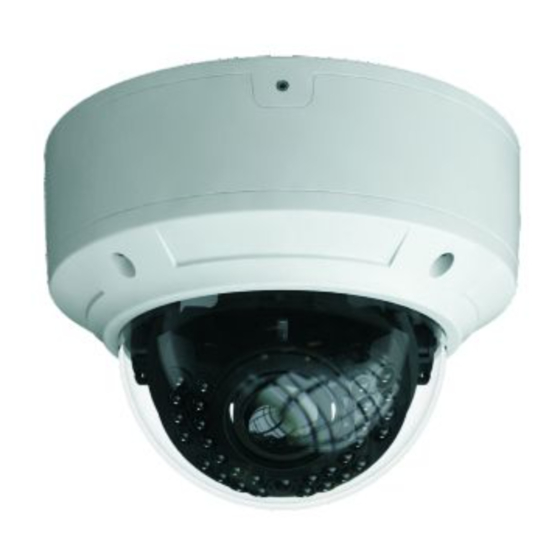

Water-proof network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Water-Proof Network Camera
U
s
e
r
M
a
n
u
a
l
U
s
e
r
M
a
n
u
a
l
Please read this manual carefully for correct use of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD259IP-9533R and is the answer not in the manual?

Questions and answers

Related Manuals for COP-USA CD259IP-9533R

Summary of Contents for COP-USA CD259IP-9533R

  • Page 1 Water-Proof Network Camera Please read this manual carefully for correct use of the product.
  • Page 2 Notes  Please use the specified power supply to connect.  Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove screws or covers.  There are no user-serviceable parts inside. Please contact the nearest service center as soon as possible if there is any failure.

  • Page 3: Table Of Contents

    3 Megapixel IP Camera User Manual Table of Contents Introduction ......................1 IE Remote Access ....................2 LAN ........................2 2.1.1 Access through IP-Tool ................2 2.1.2 Directly Access through IE ............... 3 WAN ........................4 Remote Preview ....................6 The Remote Preview Interface ................
  • Page 4 3 Megapixel IP Camera User Manual Video Search ...................... 25 Q & A ........................ 27 Specification ...................... 29...

  • Page 5: Introduction

    3 Megapixel IP Camera User Manual Page 1 1 Introduction This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It adopts state of the art video processing chips. It utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure this system more stable and reliable.

  • Page 6: Ie Remote Access

    3 Megapixel IP Camera User Manual Page 2 2 IE Remote Access IP-CAM can be connected through LAN or WAN. Here only take IE browser (6.0) for example. The details are as follows: 2.1 LAN In LAN, there are two ways to access IP-CAM: 1. Access through IP-Tool; 2. Directly access through IE browser.

  • Page 7: Directly Access Through Ie

    3 Megapixel IP Camera User Manual Page 3 shall be changed to 192.168.13.X. After modification, please input the password of the administrator and click “Modify” button to modify the setting.  The default password of the administrator is “123456”. ④ Double click the IP address and then the system will pop up the IE browser to connect IP-CAM.

  • Page 8: Wan

    3 Megapixel IP Camera User Manual Page 4 Select “Properties” and then select internet protocol according to the actual situation (for example: IPV4). Next, click “Properties” button to set the network of the PC. ② Open the IE browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatically.
  • Page 9 3 Megapixel IP Camera User Manual Page 5   go to the Config Network Config Port menu to set up the port number. ② Go to Config   Network Config IP Address menu to modify the IP address. ③...

  • Page 10: Remote Preview

    3 Megapixel IP Camera User Manual Page 6 3 Remote Preview 3.1 The Remote Preview Interface Remote Preview People icon Zoom in Start recording Fix size Zoom out Playback Actual size Full screen Snap  When motion detection alarm is triggered, the people icon turns red. Right click to pop up a pull-down list as shown below: Stream: Three streams are optional.

  • Page 11: Snap Pictures

    3 Megapixel IP Camera User Manual Page 7 Play Next frame Zoom out Pause The previous file Full screen Stop The next file Path Forward Zoom in Volume 3.3 Snap Pictures Select the picture number and then click “Snap” icon as shown below. Single Snap You can capture multiple pictures.
  • Page 12 3 Megapixel IP Camera User Manual Page 8 Multi-picture Snap Click “Browse” to set saving path. Click “Save” to save pictures to HDD on the computer; click “Printer setup” to set the printer and print the snap pictures; drag the scroll bar to view all snapped pictures.

  • Page 13: Remote Live Surveillance

    3 Megapixel IP Camera User Manual Page 9 4 Remote Live Surveillance Functions of remote configurations include: System Configuration, Video Configuration, Alarm Configuration, Network Configuration and Advanced Configuration. you should first select the menu on the left and then set the relative parameters. 4.1 System Configuration The “System configuration”...

  • Page 14: Sd Card

    3 Megapixel IP Camera User Manual Page 10 4.1.3 SD Card 1. Go to “System Configuration” “SD Card” as shown below: The first time you used the SD card, you should click “Format SD card”. Click “Eject card” to stop writing data to SD card. Then the SD card can be ejected safely. ...

  • Page 15: Video Stream

    3 Megapixel IP Camera User Manual Page 11 3. Select white balance mode. 4. Wide dynamic, sharpen and denoise are adjustable. 5. You can also set day-night mode and enable the image mirror and image overturn function. 6. Press the “Save” button to save the settings. 4.2.2 Video Stream Go to “Video configuration”...

  • Page 16: Video Mask

    3 Megapixel IP Camera User Manual Page 12 4.2.4 Video Mask You can set 4 mask areas at most. To set up video mask 1. Enable video mask and select mask color. 2. Click “Draw” button and then drag the mouse to draw the video mask area. 3.

  • Page 17: Roi Configuration

    3 Megapixel IP Camera User Manual Page 13 Clear the video mask: Go to video mask menu and then click “Clear” button to delete the current video mask area. 4.2.5 ROI Configuration To set up ROI 1. Go to ConfigROI Config menu. 2.

  • Page 18: Alarm Configuration

    3 Megapixel IP Camera User Manual Page 14 4.3 Alarm Configuration Alarm configuration includes three submenus: Motion Detection Area, Motion Detection Trigger and Motion Detection Schedule. 4.3.1 Motion Detection Area 1. Go to “Alarm configuration”  “Motion Detection Area” to see an interface as shown below.

  • Page 19: Motion Detection Schedule

    3 Megapixel IP Camera User Manual Page 15 2. Check “Enable alarm” check box. Then motion based alarm is activated. 3. Set alarm holding time. 4. Set alarm trigger options. Trigger Snap: If selected, the system will snap images on an alarm and save them in SD card. Trigger Email: If the email and attach picture checkbox is checked (Email address shall be set first in the Mail config interface), the triggered snap pictures and event will be sent into those address.

  • Page 20: Network Configuration

    3 Megapixel IP Camera User Manual Page 16 4.4 Network Configuration Network configuration includes eight submenus: Port, IP Address, Server Configuration, IP Notify, DDNS Config, RTSP, UPnP, Mail Setting and FTP. 4.4.1 Port 1. Go to “Network config” “Port” to see the interface as shown below. 2.

  • Page 21: Server Configuration

    3 Megapixel IP Camera User Manual Page 17 4. PPPoE: User needs to manual input the user name and password for dial-up internet. Firstly, log in IE clients and then enter user name and password of PPPoE, save the setting and exit.

  • Page 22: Ddns Configuration

    3 Megapixel IP Camera User Manual Page 18 4.4.5 DDNS Configuration 1. Go to “Network Configuration” “DDNS Configuration” tab as shown below. 2. Apply for a domain name. Take www. dvrdydns.com for example. in the IE address bar to visit its website. Then click “Registration” Input www.dvrdydns.com button to register as shown below.

  • Page 23: Rtsp

    3 Megapixel IP Camera User Manual Page 19 3. Select the server type and then input the username, password and domain name you apply for in the DDNS configuration interface. 4. Click “Save” button to save the settings. 4.4.6 RTSP Go to “Network Configuration”...

  • Page 24: Mail Setting

    3 Megapixel IP Camera User Manual Page 20 4.4.8 Mail Setting Go to “Network Configuration”  “Mail Setting” interface. 1. From Email: Sender’s e-mail address. 2. User name and password: Sender’s user name and password. 3. Server address: SMTP name of sender. 4.

  • Page 25: Advanced Configuration

    3 Megapixel IP Camera User Manual Page 21 Please refer to the following table for parameters and instructions of FTP configuration. Please refer to the following table for parameters and instructions of FTP configuration. Parameter Meaning Server name The name of the FTP server Server address The address of the FTP server The port number of the FTP server...

  • Page 26: Security Configuration

    3 Megapixel IP Camera User Manual Page 22 2. Clicking “Modify” button will pop up “Modify user” dialog box as shown below. Modify User 3. Input original password of this user in the “Password” text box. 4. Input new password in the “New password” and “Confirmation” text box. 5.

  • Page 27: Configure Backup & Restore

    3 Megapixel IP Camera User Manual Page 23 same as that of “Deny the following IP address”. 5. Select the MAC address you want to delete from the MAC address list box and click “Delete” button to delete that MAC address. 6.

  • Page 28: Upgrade

    3 Megapixel IP Camera User Manual Page 24 4.5.5 Upgrade Go to Advanced Configuration—Upgrade interface as shown below. 1. Click “Browse” button to select the save path of the upgrade file. 2. Click “Upgrade server firmware” button to start upgrading the application program. 3.
  • Page 29 3 Megapixel IP Camera User Manual Page 25 5 Video Search Click “Picture” icon and search the images saved in the SD card. Set time: Select date in the “Calendar” and choose the start and end time. Choose event “Motion” or “Sensor”. Click “Search”...
  • Page 30 3 Megapixel IP Camera User Manual Page 26 Item Buttons Explanations Close: Select certain picture and click this button to close this picture. Close all: Click this button to close all pictures viewing. Save: Click this button to select the save path of the picture file on the PC for saving the current picture.
  • Page 31 3 Megapixel IP Camera User Manual Page 27 6 Q & A Q: How to find my password if I forget it? A：Reset the device to the default factory settings by IP-Tool. Default IP: 192.168.226.201 User name: admin Password: 123456 Q：Fail to connect devices through IE browser, why? A: Network is not well connected.
  • Page 32 3 Megapixel IP Camera User Manual Page 28 ④ Then click OK to finish setup. b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them. Q：No sound can be heard, why? A：Audio input device is not connected. Please connect and try again. B: Audio function is not enabled at the corresponding channel.
  • Page 33 3 Megapixel IP Camera User Manual Page 29 7 Specification Model 3 Megapixel Water-proof Network Camera Image Sensor 1/3＂CMOS Image Size 2048 × 1536 Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris Camera Min. Illumination 0 Lux (IR ON) Lens 6mm (3.6mm, 8mm, 2.8mm~12mm optional) Day-Night Switch ICR auto switch Digital WDR...
