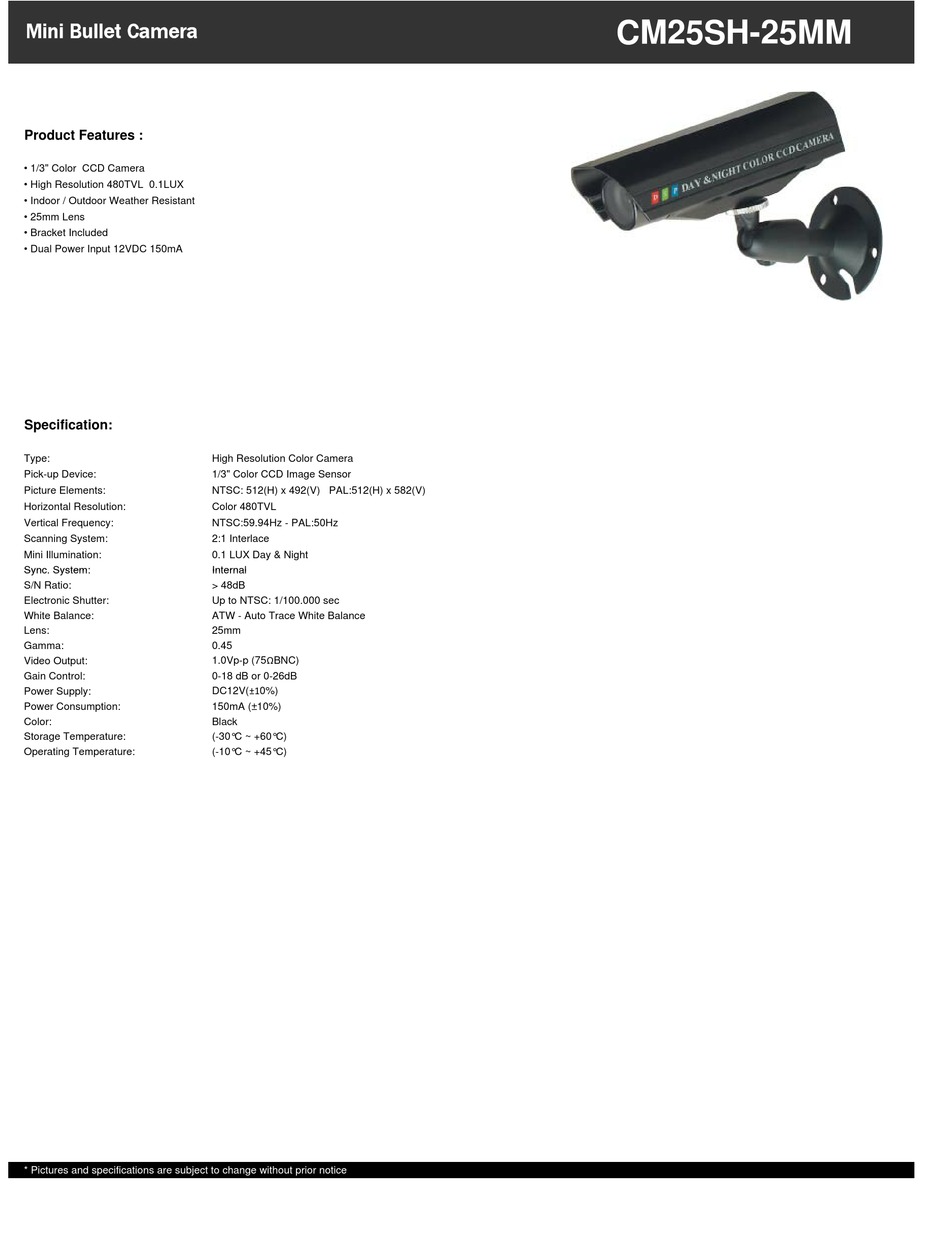

COP-USA CM25SH-25MM Specifications

Mini Bullet Camera
Product Features :
• 1/3" Color CCD Camera
• High Resolution 480TVL 0.1LUX
• Indoor / Outdoor Weather Resistant
• 25mm Lens
• Bracket Included
• Dual Power Input 12VDC 150mA
Specification:
Type:
Pick-up Device:
Picture Elements:
Horizontal Resolution:
Vertical Frequency:
Scanning System:
Mini Illumination:
Sync System: Sync. System:
S/N Ratio:
Electronic Shutter:
White Balance:
Lens:
Gamma:
Video Output:
Gain Control:
Power Supply:
Power Consumption:
Color:
Storage Temperature:
Operating Temperature:
* Pictures and specifications are subject to change without prior notice
High Resolution Color Camera
1/3" Color CCD Image Sensor
NTSC: 512(H) x 492(V) PAL:512(H) x 582(V)
Color 480TVL
NTSC:59.94Hz - PAL:50Hz
2:1 Interlace
0.1 LUX Day & Night
Internal Internal
> 48dB
Up to NTSC: 1/100.000 sec
ATW - Auto Trace White Balance
25mm
0.45
1.0Vp-p (75ΩBNC)
0-18 dB or 0-26dB
DC12V(±10%)
150mA (±10%)
Black
(-30°C ~ +60°C)
(-10°C ~ +45°C)
CM25SH-25MM
