COP-USA CD45IRIP-9531 User Manual

Water-proof
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

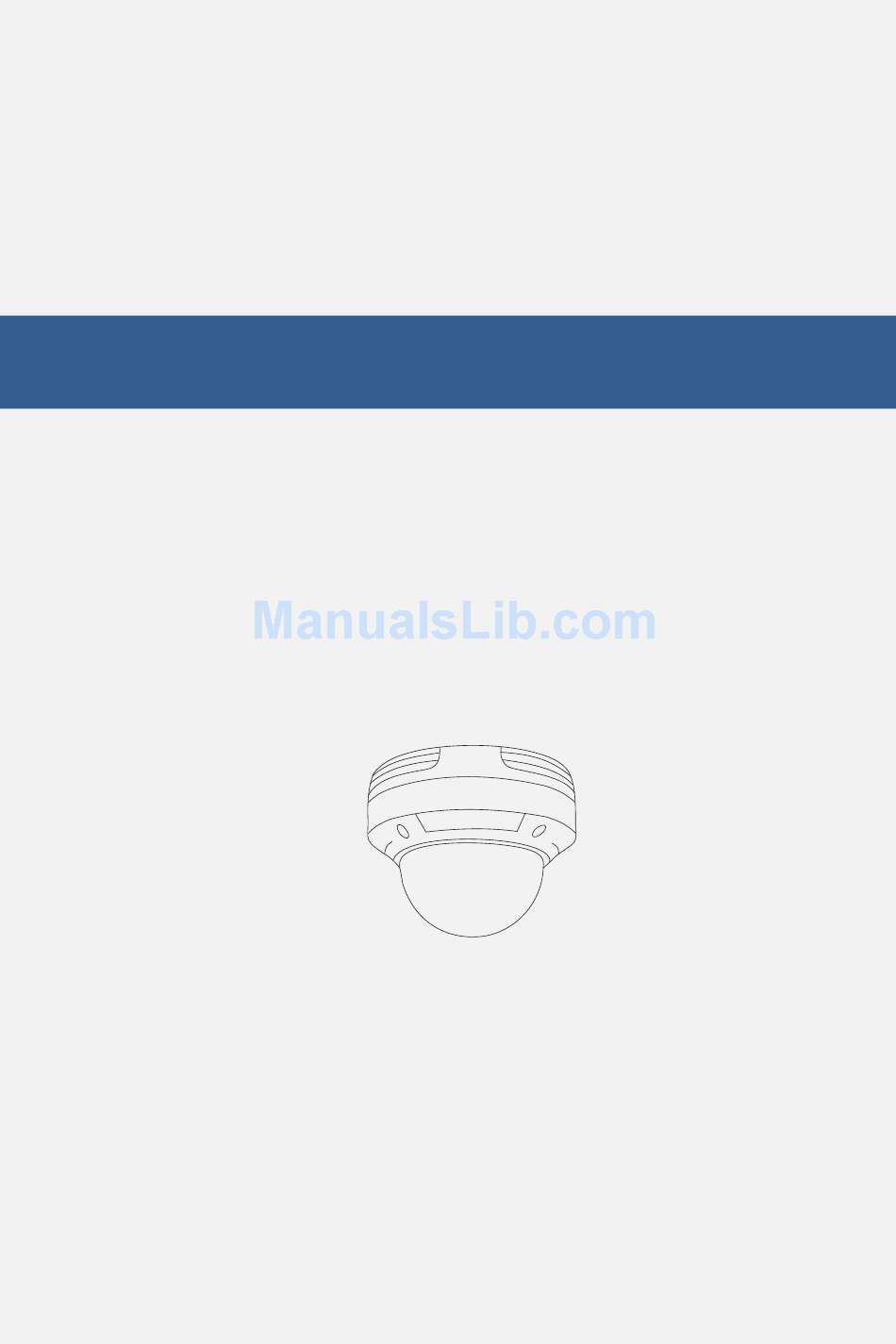

Water-Proof Network Camera
U
s
e
r
M
a
n
u
a
l
U
s
e
r
M
a
n
u
a
l
Please read this manual carefully for correct use of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD45IRIP-9531 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for COP-USA CD45IRIP-9531

Summary of Contents for COP-USA CD45IRIP-9531

  • Page 1 Water-Proof Network Camera Please read this manual carefully for correct use of the product.
  • Page 2 Notes  Please use the specified power supply to connect.  Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove screws or covers.  There are no user-serviceable parts inside. Please contact the nearest service center as soon as possible if there is any failure.

  • Page 3: Table Of Contents

    3 Megapixel IP Camera User Manual Table of Contents Introduction ........................1 IE Remote Access ......................2 LAN ........................2 2.1.1 Access through IP-Tool ..................2 2.1.2 Directly Access through IE ................3 WAN ........................4 Remote Preview ......................6 The Remote Preview Interface ................

  • Page 4: Introduction

    3 Megapixel IP Camera User Manual Page 1 1 Introduction This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It adopts state of the art video processing chips. It utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure this system more stable and reliable.

  • Page 5: Ie Remote Access

    3 Megapixel IP Camera User Manual Page 2 2 IE Remote Access IP-CAM can be connected through LAN or WAN. Here only take IE browser (6.0) for example. The details are as follows: 2.1 LAN In LAN, there are two ways to access IP-CAM: 1. Access through IP-Tool; 2. Directly access through IE browser.

  • Page 6: Directly Access Through Ie

    3 Megapixel IP Camera User Manual Page 3 shall be changed to 192.168.13.X. After modification, please input the password of the administrator and click “Modify” button to modify the setting.  The default password of the administrator is “123456”. ④ Double click the IP address and then the system will pop up the IE browser to connect IP-CAM.

  • Page 7: Wan

    3 Megapixel IP Camera User Manual Page 4 Select “Property” and then select internet protocol according to the actual situation (for example: IPV4). Next, click “Property” button to set the network of the PC. ② Open the IE browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatically.
  • Page 8 3 Megapixel IP Camera User Manual Page 5   go to the Config Network Config Port menu to set up the port number. ② Go to Config   Network Config IP Address menu to modify the IP address. ③...

  • Page 9: Remote Preview

    3 Megapixel IP Camera User Manual Page 6 3 Remote Preview 3.1 The Remote Preview Interface Remote Preview People icon Zoom in Start recording Fix size Zoom out Playback Actual size Full screen Snap  When motion detection alarm is triggered, the people icon turns red. Right click to pop up a pull-down list as shown below: Stream: Three streams are optional.

  • Page 10: Snap Pictures

    3 Megapixel IP Camera User Manual Page 7 Play Next frame Zoom out Pause The previous file Full screen Stop The next file Path Forward Zoom in Volume 3.3 Snap Pictures Select the picture number and then click “Snap” icon as shown below. Single Snap User can snap multiple pictures.
  • Page 11 3 Megapixel IP Camera User Manual Page 8 Multi-picture Snap Click “Browse” to set saving path. Click “Save” to save pictures to HDD on the computer; Click “Printer setup” to set the printer and print the snap pictures; drag the scroll bar to view all snapped pictures.

  • Page 12: Remote Live Surveillance

    3 Megapixel IP Camera User Manual Page 9 4 Remote Live Surveillance Functions of remote configurations include: System Configuration, Video Configuration, Alarm Configuration, Network Configuration and Advanced Configuration. User should firstly select the menu on the left, and then set the relative parameters. 4.1 System Configuration The “System configuration”...

  • Page 13: Video Configuration

    3 Megapixel IP Camera User Manual Page 10 3. Enable DST mode as required. 4. Set time. You may set time manually or enable NTP. 4.2 Video Configuration Camera Configuration includes five submenus: Camera Configuration, Video Stream, OSD Config, Video Mask and ROI Config. 4.2.1 Camera Configuration Setting steps: 1.

  • Page 14: Osd Configuration

    3 Megapixel IP Camera User Manual Page 11 Resolution: The higher the resolution is, the clearer the image is. Frame rate: The higher the frame rate is, the more fluency the video is. However, more storage room will be taken up. Bitrate type: Including CBR and VBR.

  • Page 15: Video Mask

    3 Megapixel IP Camera User Manual Page 12 4.2.4 Video Mask You can set 4 mask areas at most. To set up video mask 1. Enable video mask and select mask color. 2. Click “Draw” button and then drag the mouse to draw the video mask area. 3.

  • Page 16: Alarm Configuration

    3 Megapixel IP Camera User Manual Page 13 2. Check “Enable” and then click “Draw” button. 3. Drag the mouse to set the ROI area. 4. Set the level. 5. Click “Save” button to save the settings. Now, you will see the selected ROI area is clearer than other areas especially in low bitrate condition.

  • Page 17: Motion Detection Trigger

    3 Megapixel IP Camera User Manual Page 14 4. Press the “Save” button to save the settings. 4.3.2 Motion Detection Trigger 1. Go to “Alarm Configuration”  “Motion Detection Trigger” to display an interface as shown below. 2. Check “Enable alarm” check box. Then all functions under this interface will be activated. 3.

  • Page 18: Motion Detection Schedule

    3 Megapixel IP Camera User Manual Page 15 6. Press the “Save” button to save the settings. 4.3.3 Motion Detection Schedule Go to “Alarm configuration”  “Motion Detection schedule” interface as shown below. Week schedule User could set the alarm time from Monday to Sunday for alarm everyday in one week. Note: The lengthwise means one day of a week;...

  • Page 19: Ip Address

    3 Megapixel IP Camera User Manual Page 16 2. Input port number for IE access in the “HTTP Port” textbox. 3. Input the port number for audio & video transmission in the “Data Port” textbox. 4.4.2 IP Address 1. Go to “Network Configuration” “IP Address”...

  • Page 20: Ip Notify

    3 Megapixel IP Camera User Manual Page 17 1. Check “Do you want IP Camera to connect Server”. 2. Check the IP address and port of the transfer media server in the CMS/NVMS. Then enable the auto report in the CMS/NVMS when adding a new device. Next, self-define the device ID and input the remaining information of the device in the CMS/NVMS.

  • Page 21: Rtsp

    3 Megapixel IP Camera User Manual Page 18 in the IE address bar to visit its website. Then click “Registration” Input www.dvrdydns.com button to register as shown below. Create domain name. After you successfully request your domain name, you will see your domain in the list. 3.

  • Page 22: Upnp

    3 Megapixel IP Camera User Manual Page 19 1. Select “Enable RTSP server”. 2. RTSP Port: Access Port of the streaming media. The default number is 554. 3. RTSP Address: The RTSP address you need to input in the media player. 4.

  • Page 23: Ftp

    3 Megapixel IP Camera User Manual Page 20 2. User name and password: Sender’s user name and password. 3. Server address: SMTP name of sender. 4. Select the secure connection type at the Secure Connection pull down list according to user’ actual needs.

  • Page 24: User Configuration

    3 Megapixel IP Camera User Manual Page 21 4.5.1 User Configuration Go to “User Configuration” interface. Add user: 1. Clicking “Add” button pops up “Add User” dialog box. User Configuration Add User Note: After binding physical address to the IP-CAM, you can access the device on this PC only.

  • Page 25: Security Configuration

    3 Megapixel IP Camera User Manual Page 22 Delete user: 1. Select the user you want to delete in the user configuration list box. 2. Click “Delete” button to pop up a confirm dialog box. Then click “OK” to delete the user. Note: The default super administrator cannot be deleted.

  • Page 26: Configure Backup & Restore

    3 Megapixel IP Camera User Manual Page 23 4.5.3 Configure Backup & Restore Go to Advanced configurationConfigure Backup & Restore Interface.  Import & Export Configuration: 1. Click “Browse” to select save path for import or export information on PC. 2.
  • Page 27 3 Megapixel IP Camera User Manual Page 24 5 Q & A Q: How to find my password if I forget it? A：Reset the device to the default factory settings by IP-Tool. Default IP: 192.168.226.201 User name: admin Password: 123456 Q：Fail to connect devices through IE browser, why? A: Network is not well connected.
  • Page 28 3 Megapixel IP Camera User Manual Page 25 ④ Then click OK to finish setup. b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them. Q：No sound can be heard, why? A：Audio input device is not connected. Please connect and try again. B: Audio function is not enabled at the corresponding channel.

  • Page 29: Specification

    3 Megapixel IP Camera User Manual Page 26 6 Specification Model 3 Megapixel Water-proof Network Dome Camera Image Sensor 1/3＂CMOS Image Size 2048 × 1536 Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris Camera Min. Illumination 0 Lux (IR ON) Lens 3.6mm (6mm, 8mm optional) Day-Night Switch ICR auto switch...
