SDI 1080P Shuttle & License Plate Camera
CHLP120IR-SDI
• 1/2.8" COLOR SDI High Definition
• 1080P Full HD, 0 Lux, ICR, IR cut Filter.
• Slow Shutter (Sense Speed 32X)
• 224 High Power Intensity LED, 300 Feet.
• 10-120mm Auto Iris 2.0 Megapixels IR Lens
• Dual CDS, front CDS is High Resolution camera,
back CDS is License Plate Camera
• 10 dipswitch control, Bracket included
• Dual Power DC12V 4A /AC24V 60VA
Warning
ON
SDI High Definition Camera
OFF License Plate Camera
ON
OFF
1 2 3 4 5 6 7 8 9 10
MENU
LENS AUTO
EXP AIS
* Specifications are subject to change without notice
Serial Digital Interface
Shu tt er speed select
The DIP Switch
License Plate
NO.10
0
OFF
20 Miles 30 KM
1
A.FLK
40 Miles
2
1/160sec.
50 Miles 80 KM
3
1/250sec.
65
Miles
4
1/500sec.
80 Miles 130 KM
5
1/700sec.
90
Miles
6
1/1000sec.
110 Miles 180 KM
7
1/1600sec.
120
Miles
8
1/2500sec.
140 Miles 230 KM
SHUTTER
60 KM
100 KM
160 KM
200 KM
"IR On" Effective Distance
"IR On" Effective Distance
IR On
300Feet
300
200Feet
Feet
Normal Camera
100Feet
100
50Feet
Feet
** Designed in U.S.A.
0Feet
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for COP-USA CHLP120IR-SDI
Summary of Contents for COP-USA CHLP120IR-SDI

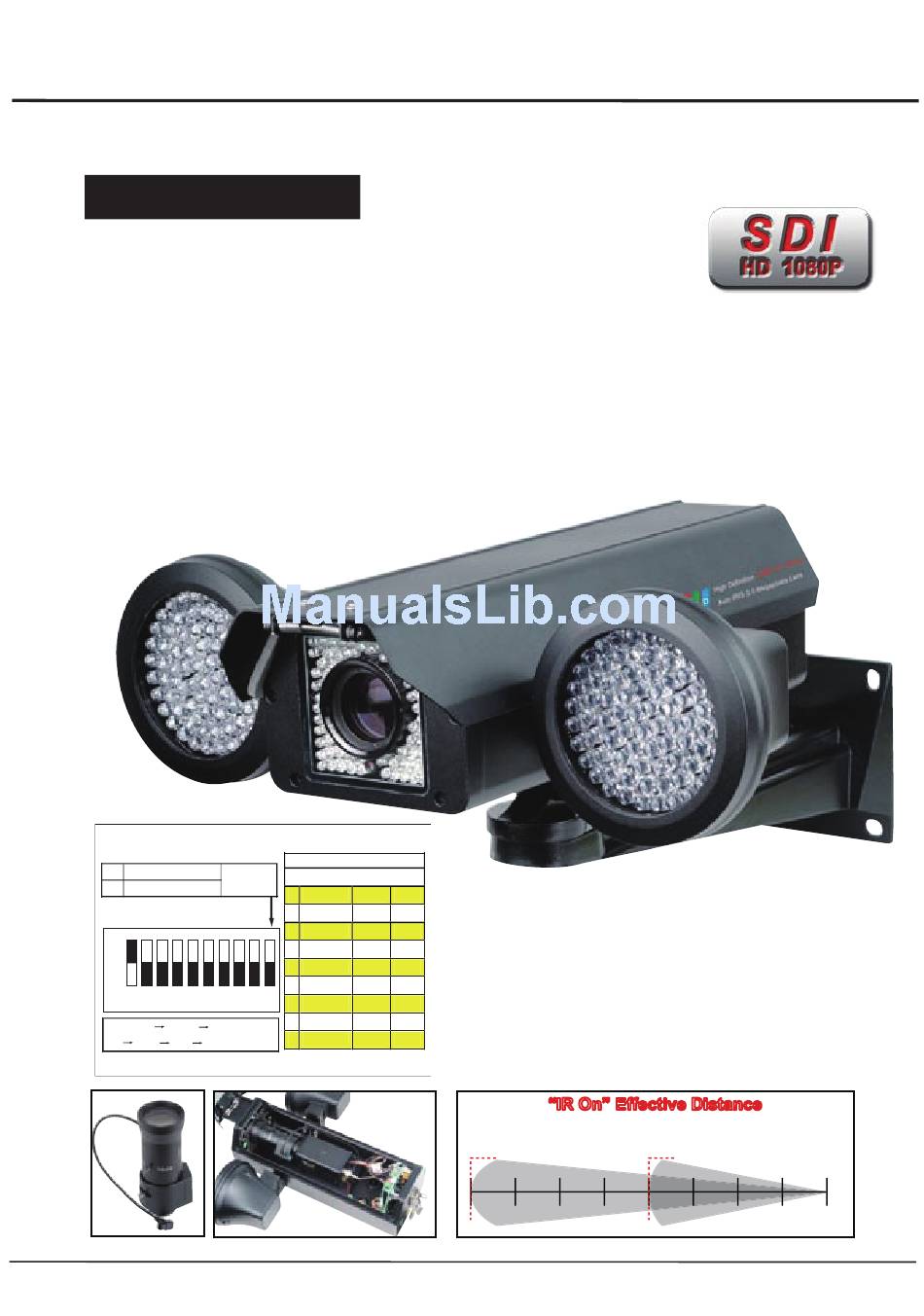

- Page 1 SDI 1080P Shuttle & License Plate Camera Serial Digital Interface CHLP120IR-SDI • 1/2.8” COLOR SDI High Definition • 1080P Full HD, 0 Lux, ICR, IR cut Filter. • Slow Shutter (Sense Speed 32X) • 224 High Power Intensity LED, 300 Feet.
- Page 2 RS485 Housing Control (Box camera) User's Manual...
- Page 3 Notice To reduce the risk of electric shock, please do not disassemble by yourself, it should be repaired by a qualified technician. The lightning arrow symbol reminds users that there is dangerous voltage nearby, enough for a body to produce an electric shock and cause bodily harm.
- Page 4 Important Safety Precautions 1、Before installation, please read the manual, and keep this guide for future reference. 2、Please comply with all warnings on the device and follow the instructions carefully. 3、 Please wipe or clean the device before connecting the device to power, and please do not use liquid/spray cleaning agents.
- Page 5 issues: 10.1 Wrong power supply or voltage. 10.2 Damaged housing unit. 10.3 Abnormal behavior with device performance. 10.4 After consulting the user manual and it still does not operate. 11、When part replacement is needed, please contact your dealer so we can provide approved parts to maintain the same performance.
-
Page 6: Table Of Contents
I Summary ..........6 II Features ..........6 III Product Size Chart ......... 8 IV Socket Function ........9 1.Camera control board layout ...... 9 2.Power board socket diagram ....... 10 V Connecting different camera models ....12 1、Color box camera with DC12V ....12 2、Color box camera with AC24V ..... -
Page 7: I Summary
I. Summary The integrated shell uses an all-metal construction, the compatible color camera is protected and is for outdoor and indoor equipped with light compensation at night。The unit has a waterproof grade of IP66, uses EIA/RS-485 connections for remote control, has internal and external infrared compensation light for both near and far distances. - Page 8 infrared radiation; 8、All-metal construction is strong and durable, with IP66 Grade. 9、Unit can use RS485 control, 120Ω Resistor; 10 、IR Lights are optically triggered by camera 11、Preset positions up to 32; 12、Has automatic on/off Infrared Control; 13、Manual Settings to open or close;...
-
Page 9: Iii Product Size Chart
III. Product Size Chart... -
Page 10: Iv Socket Function
IV. Socket Function 、Camera control board layout 1.1 BK1：DIP switch 1.1.1 1—8 address code，binary representation，ON is 1，OFF is 0, from 8 to 1 reading: If 1 is set ON, all other set off, is 00000001,that is decimal 1. f 2 is set ON, all other set off, is 00000010,that is decimal 2. And so on, the largest that is decimal 11111111，that is decimal 255. - Page 11 1.5 J3： Photo Sensor input interface 1.6 J4：Box camera menu control output D:down;U：up;E：MENU/confirm;R：right;L：left 1.7 J5：Output signal day and night,for day and night camera with external input control interface. this interface is available when infrared light and the camera's synchronizes. CTL:According to the choice of S2 to output high level, low level 1.8 J6：...
- Page 12 OFF-OFF 1LUX LUX Adjustment Dipswitches OFF-ON 2LUX for Both front and back CDS ON -OFF 3LUX ON -ON 4LUX Camera ID Dipswitches and CDS selection (Front or Back) Shu tt er speed select SDI High Definition Camera The DIP Switch License Plate NO.10 OFF License Plate Camera...
-
Page 13: Power Board Socket Diagram
2、Power Board Socket Diagram 2.1 P1： BNC Video Output Signal 2.2 J1，J2：AC24V/DC12V power input 2.3 J3：Board connected socket，DC12V output。 （connect with Board J6） 2.4 J7： Board connected socket，RS485 control signal。 （connect with Board J10） 2.5 J8： Board connected socket， Video Signal and Relay control signal input。 （connect with Board J 9）... -
Page 14: Vi Auxiliary Preset Function
2、 AC24V Color Zoom Camera The power of zoom camera input directly by the external AC24V power input, video signal output by camera BNC directly . VI. Auxiliary Preset Function Press button open" of keyboard to open camera menu or enter the sub menu,Rocker lever up and down the menu, joystick left and right selection options Preset... - Page 15 Default Main Submenu Brightness 0~20 Sharpness 0~20 Color Gain Gamma 0~4 0.55 AGC 0~10 Exposure Lens 1/30(25), 1/60(50), 1/120(100), 1/240, 1/500, 1/1K, 1/2K, 1/4K, 1/1k Shutter (Auto/Manual) Manual ‐Level 1/8K, 1/16K, 1/30K, 1/60K. DSS OFF, X2, X3, X4, X5, X6, X7, X8 Return ...
