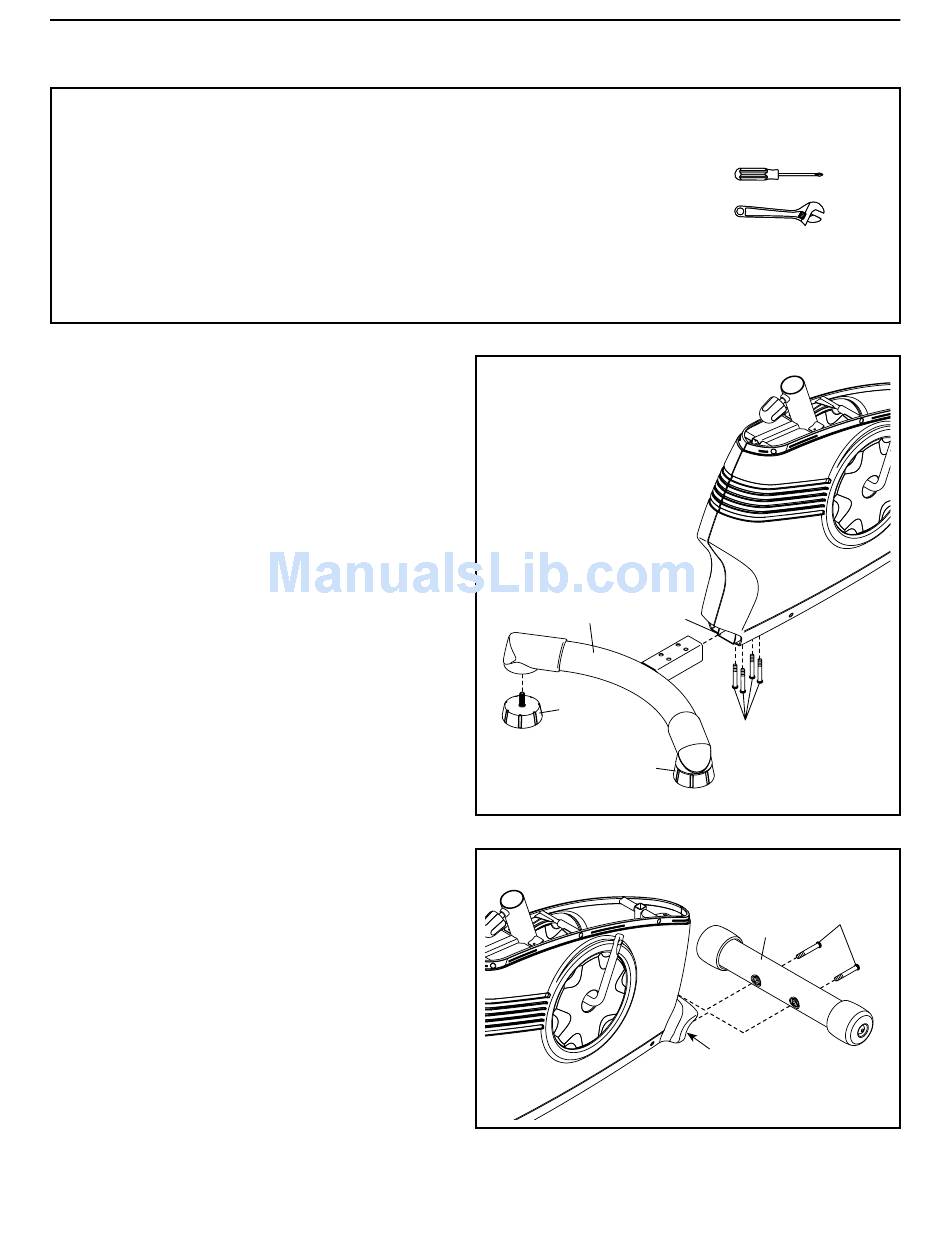

ASSEMBLY

•• Assembly requires two persons.
•• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
•• To identify small parts, see page 5.
1. Orient the Rear Stabilizer (14) as shown.
Tighten the two Leveling Feet (50) into the
underside of the Rear Stabilizer (14).
While a second person lifts the rear of the Frame
(1), insert the Rear Stabilizer into the Frame.
Attach the Rear Stabilizer (14) with four M8 x
60mm Button Screws (43).
2. Orient the Front Stabilizer (2) as indicated by the
sticker.
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (2) to the
Frame with two M10 x 80mm Button Screws
(36).
•• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
1
14
50
50
2
6
1
43
36
2
1
