Wells WB-1 Operation Manual

Hide thumbs Also See for WB-1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
This manual is considered to be part of the WAFFLE BAKER and is to be
given to the OWNER or MANAGER of the restaurant, or to the
person responsible for TRAINING OPERATORS of this WAFFLE BAKER.
Additional manuals are available from your Wells Dealer.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS
USING OR INSTALLING THIS WAFFLE BAKER. Contact your Wells
Dealer if you have any questions concerning installation, operation or
maintenance of this appliance.
P/N 37055 Rev. (C)
WELLS MANUFACTURING COMPANY
2 ERIK CIRCLE, P. O. Box 280
Customer Service (775) 345-0444 Ext.502
fax: (775) 345-8238
www.wellsbloomfield.com
IMPORTANT: DO NOT DISCARD THIS MANUAL
Verdi, NV 89439

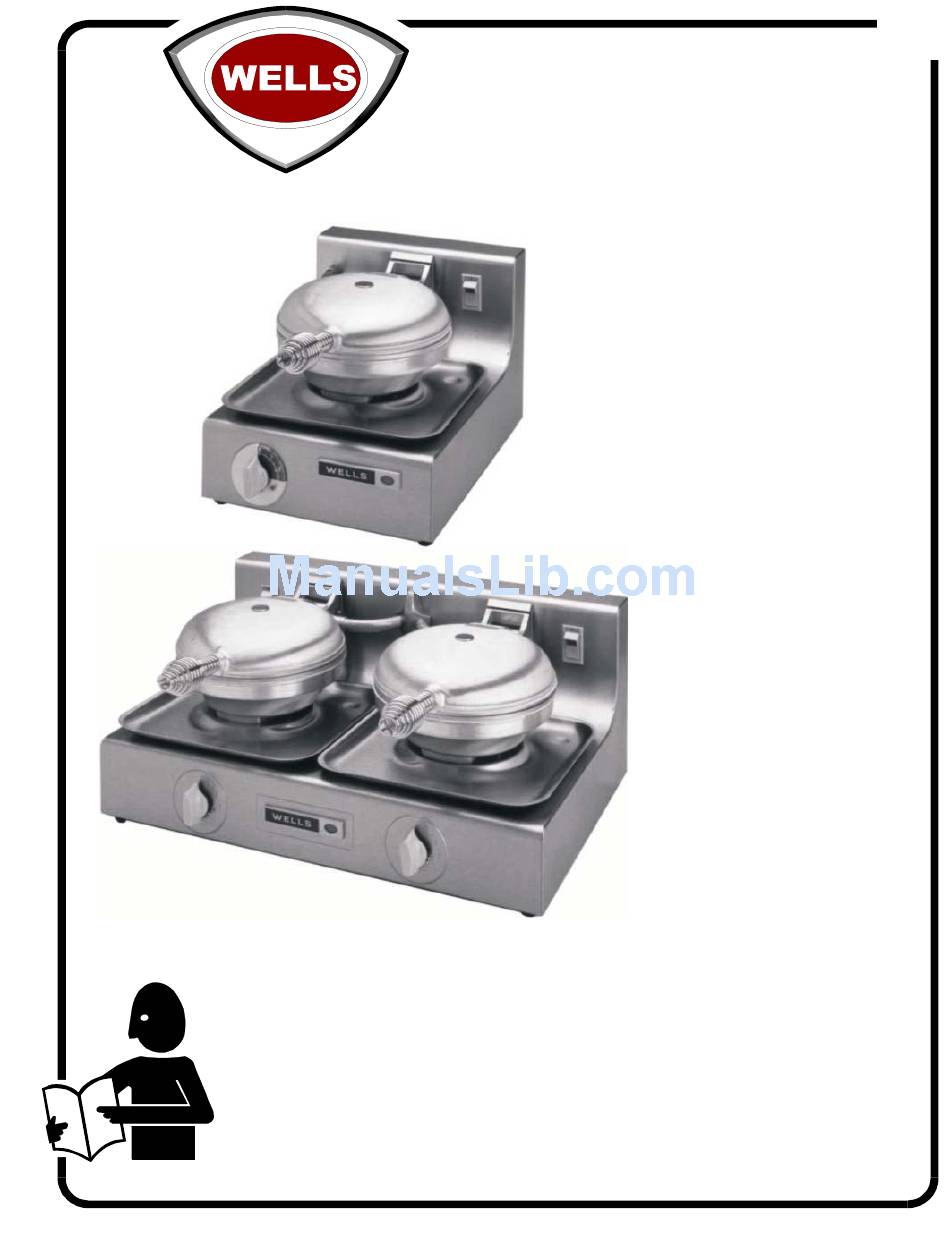

WAFFLE
BAKER
Models
212
OPERATION
MANUAL
for
WB-1
WB-2
includes:
INSTALLATION,
OPERATION AND
PREVENTATIVE
MAINTENANCE
M212 121102 cps
