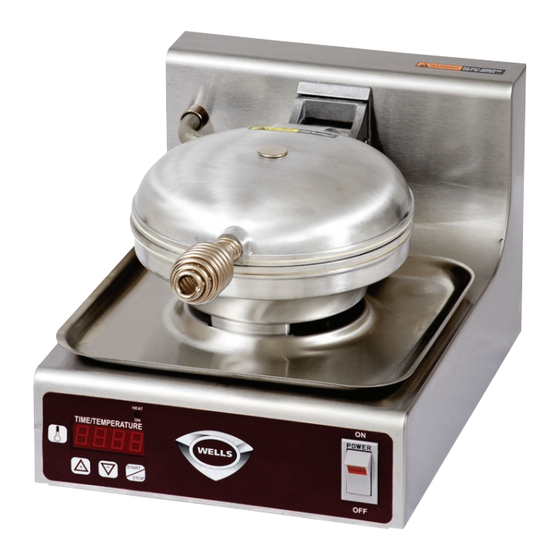

Model WB1E
Model WB2E
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
2M-37055
p/n
Rev. K
WELLS MANUFACTURING
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6314
fax: 314-781-2714
www.wellsbloomfield.com

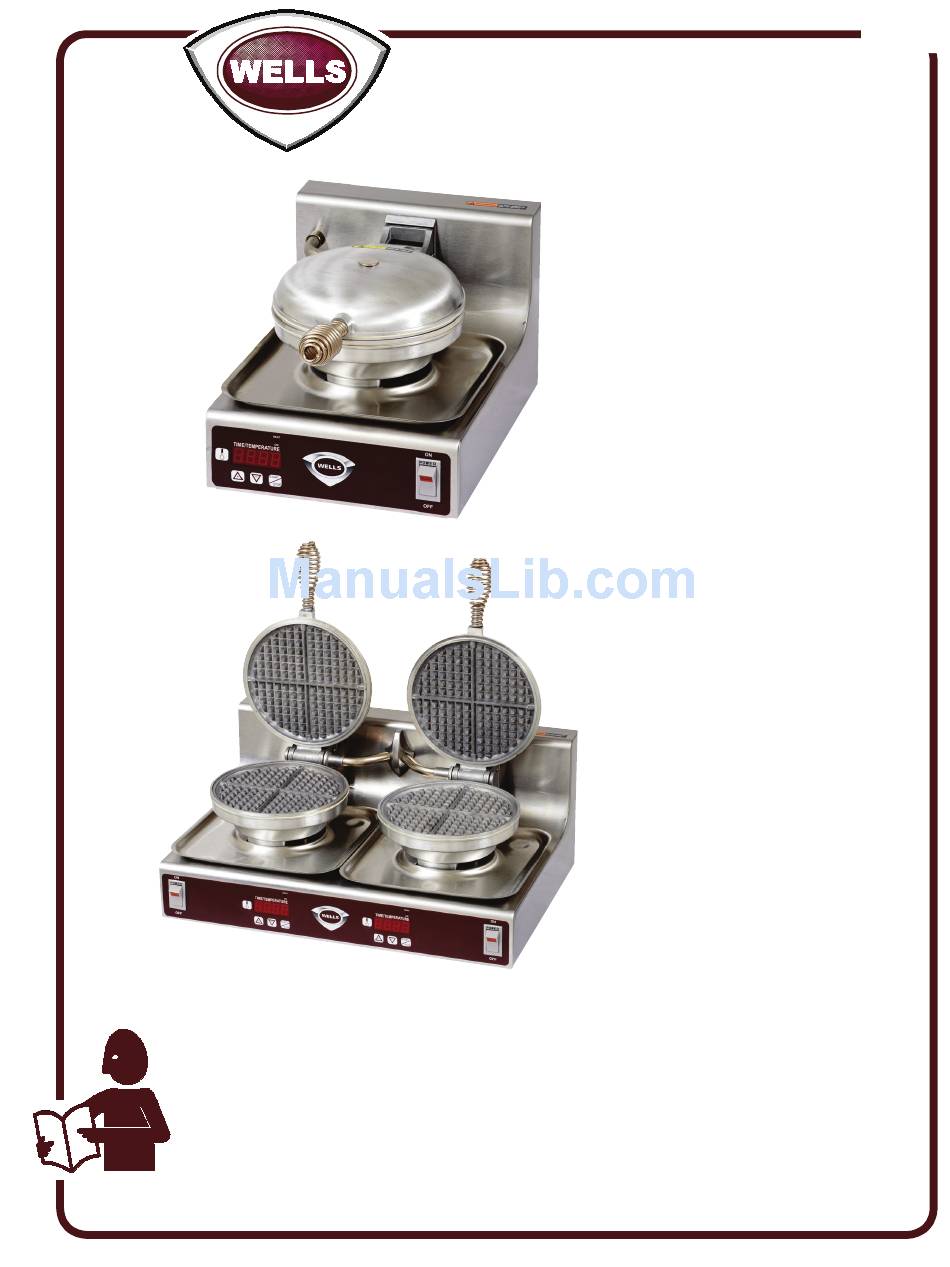

OWNERS MANUAL
WAFFLE
BAKER
MODELS
WB1, WB1E
WB2, WB2E
Includes
INSTALLATION
USE & CARE
EXPLODED VIEW
PARTS LIST
WIRING DIAGRAM
M212
212
13
1111

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WB1 and is the answer not in the manual?

Questions and answers

Related Manuals for Wells WB1

Summary of Contents for Wells WB1

  • Page 1 Additional manuals are available from your WELLS DEALER. THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any questions concerning installation, operation or maintenance of this equipment.

  • Page 2: Warranty

    The for information and other details concerning warranty. prices charged by Wells Manufacturing for its products are SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS Resetting of safety thermostats, circuit breakers, over...

  • Page 3: Table Of Contents

    CUSTOMER SERVICE DATA Back Cover INTRODUCTION Thank You for purchasing this Wells Manufacturing appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life.

  • Page 4: Features & Operating Controls

    UPPER GRID (RAISED POSITION) POWER SWITCH NAME PLATE UPPER GRID (LOWERED POWER POSITION) CORD BACK VIEW HANDLE DRIP TRAY TIMER TEMPERATURE LOWER GRID CONTROL ADJUSTABLE NON-SLIP FEET IL2764 Fig. 1 Waffle Baker - Features & Operating Controls (WB2 shown, WB1 similar)

  • Page 5: Precautions & General Information

    PRECAUTIONS AND GENERAL INFORMATION DANGER: BURN HAZARD Contact with cooking grid surface will cause severe burns. Use the handle to lift the grid. Avoid contact with grid surfaces. WARNING: ELECTRIC SHOCK HAZARD All servicing requiring access to non-insulated components must be performed by qualified service personnel.

  • Page 6: Installation

    INSTALLATION NOTE: DO NOT discard UNPACKING & INSPECTION the carton or other packing Carefully remove the appliance from the carton. Remove all protective materials until you have plastic film, packing materials and accessories from the appliance inspected the appliance for before connecting performing any installation procedure.

  • Page 7: Operation

    OPERATION GENERAL OPERATIONAL NOTES CAUTION: Carefully read the description of the waffle baker operation on the HOT SURFACE specification sheet. Exposed surfaces can be hot DO NOT attempt to perform any maintenance or service unless the to the touch and may cause waffle baker is disconnected from electrical power.
  • Page 8 OPERATION (ELECTRONIC UNITS) WB1E & WB2E CAUTION: MAKING WAFFLES HOT SURFACE Turn the unit on and allow to pre-heat for 15 minutes with the grids Exposed surfaces can be hot closed. Once the baker has reached proper temperature you can to the touch and may cause proceed as follows: burns.

  • Page 9: Cleaning Instructions

    CLEANING INSTRUCTIONS PREPARATION CAUTION: BURN HAZARD Unplug appliance from electric power Allow appliance to cool completely. Allow waffle baker to cool FREQUENCY completely before cleaning. Daily TOOLS IMPORTANT: Plastic Scouring Pad, Soft-Bristled Fiber Brush DO NOT spill or pour water into controls.
  • Page 10 CLEANING INSTRUCTIONS (continued) PREPARATION CAUTION: CHEMICAL Unplug appliance from electric power BURN HAZARD Allow appliance to cool completely. Waffle baker cleaner may FREQUENCY cause serious burns on contact. As needed Wear protective clothing and TOOLS safety glasses when using waffle baker cleaner. Commercial Carbon Cleaner Carefully read and follow 1”...

  • Page 11: Maintenance - Set Baking Temperature

    MAINTENANCE CAUTION: SET BAKING TEMPERATURE BURN HAZARD Wells WB1 and WB2 waffle bakers are factory set for 390ºF ±5ºF (200ºC ± 3ºC). Exposed surfaces of the CHECK TEMPERATURE waffle baker may be hot to the touch and can cause burns.

  • Page 12: Exploded View & Parts List

    EXPLODED VIEW: WB1 & WB2 WAFFLE BAKER GRIDS WAFFLE BAKER GRIDS for WB1 and WB2 UPPER GRID LOWER GRID Model: WB1 & WB2 WAFFLE BAKER GRIDS PL212 IL1776 Rev. B 6/23/11...
  • Page 13 PARTS LIST: WB1 & WB2 WAFFLE BAKER GRIDS WB-1 & WB-2 WAFFLE BAKER GRIDS Fig No Part No Description Application 2R-30335 1 / 2 HANDLE SPRING PLATED WB1 / WB2 2F-30327 1 / 2 CAST TOP MACHINED & POLISHED WB1 / WB2...
  • Page 14 EXPLODED VIEW : WB1 & WB2 WAFFLE BAKER CABINETS CABINET WB-1 CABINET WB-2 Model: WB1 & WB2 WAFFLE BAKER CABINET PL212 IL1777 Rev. C 6/17/11...
  • Page 15 PARTS LIST: WB1 & WB2 WAFFLE BAKER CABINETS WB-1 & WB-2 WAFFLE BAKER CABINET Fig No Part No Description Application WB1 WB2 B8-Z12400 WB-1 REAR PANEL B8-Z12401 WB-2 B8-Z13851 PANEL, REAR WB2WHNT, before serial no:WB2L0612A001 B8-Z15519 ASM-PANEL WB-2-WHNT WB2WHNT, after serial no:WB2L0612A001...
  • Page 16 EXPLODED VIEW : WB1E ELECTRONIC WAFFLE BAKER Model: WB1E, Electronic Waffle Baker SK2679 Rev. - 8/16/13...
  • Page 17 PARTS LIST: WB1E ELECTRONIC WAFFLE BAKER WB1E & WB2E, ELECTRONIC WAFFLE BAKER Fig No Part Number WB1E WB2E Description Application B8-35552 CONDUIT SOLID 2F-30329 CAST COND MACH&PLT REC 33 2C-30222 RETAINER E RING .179 ID 2F-30322 HINGE AS RECD WB-1 -2 2V-30328 PLUG HINGE MACH&PLT 2P-38628...

  • Page 18: Wiring Diagram

    HEATING BLOCK **LOWER GROUND ELEMENT WIRE NOT USED ON WB1E WHITE BLACK GREEN 5-15P-PLUG WIRE DIAGRAM, 120V MODELS: WB1C, SINGLE WAFFLE BAKER- CANTILEVER DESIGN WB1E, SINGLE STD. WAFFLE BAKER- ELECTRONIC CONTROLS WELLS MANUFACTURING INC. SK2634 REV. B DR: WEB 09/16/13...
  • Page 19 WIRING DIAGRAM UPPER HEATING ELEMENT COUPLER SWITCH 10VAC TEMP. PROBE 208/240V TRANSFORMER TERMINAL LOWER HEATING BLOCK **LOWER GROUND ELEMENT WIRE NOT USED ON WB1E WHITE VOLTS NOMINAL AMPS GREEN WB-1 BLACK POWER CORD WIRE DIAGRAM, 208/240V 220/240V MODELS: WB1C, SINGLE WAFFLE BAKER- CANTILEVER DESIGN - ELECTRONIC CONTROLS - 208/240V, 220/240V WB1E, SINGLE STD.
  • Page 20 WIRING DIAGRAM...
  • Page 21 WIRING DIAGRAM...
  • Page 22 WIRING DIAGRAM...
  • Page 23 WIRING DIAGRAM...
