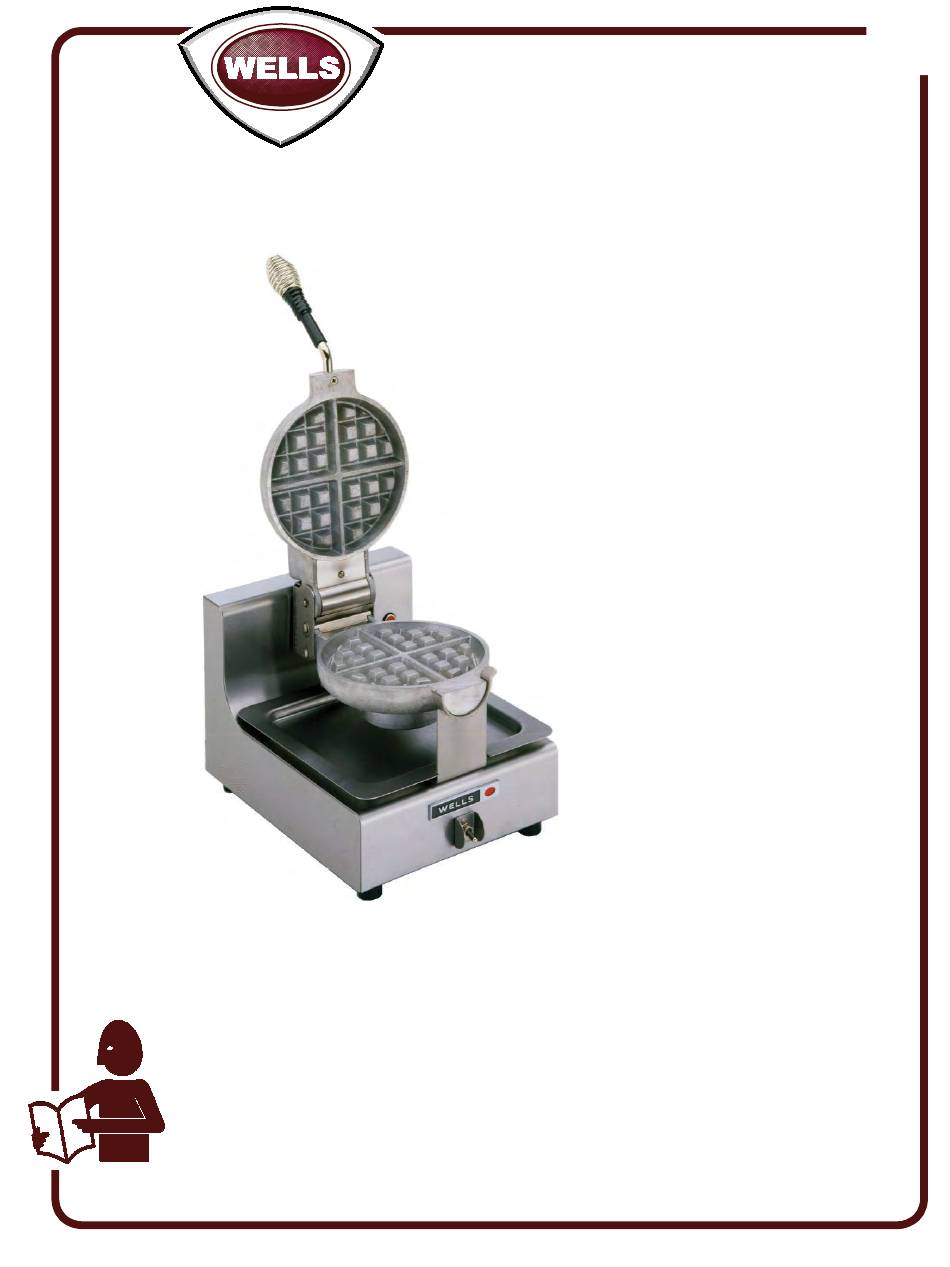

Model BWB-1S
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
2M-307154
p/n
Rev. E
WELLS MANUFACTURING
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6314
fax: 314-781-2714
www.wellsbloomfield.com
OWNERS MANUAL
BELGIAN
WAFFLE
BAKER
MODEL
BWB-1S
BWB1SE
Includes
INSTALLATION
USE & CARE
EXPLODED VIEW
PARTS LIST
WIRING DIAGRAM
14
M211
211
0826
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wells BWB1SE
Summary of Contents for Wells BWB1SE
- Page 1 Additional manuals are available from your WELLS DEALER. THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any questions concerning installation, operation or maintenance of this equipment.
-
Page 2: Warranty
Seller’s obligation under this warranty is manufactured by Wells Manufacturing is warranted against limited to the repair of defects without charge by a Wells defects in materials and workmanship for a period of one year Manufacturing factory authorized service agency or one of from the date of original installation or 18 months from the its sub-service agencies. -
Page 3: Table Of Contents
PARTS & SERVICE CUSTOMER SERVICE DATA INTRODUCTION Thank You for purchasing this Wells Manufacturing appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life. -
Page 4: Features & Operating Controls
FEATURES & OPERATING CONTROLS COOK POSITION LOAD/CLEAN POSITION HANDLE LOWER GRID ìBAKEî INDICATOR UPPER GRID UPPER GRID DRIP TRAY COOK HEAD ASSEMBLY (shown rotated LOWER GRID down into the (shown rotated ìBAKEî position) up into the ìLOADî position) POWER SWITCH BACK VIEW TIMER ACCESS ADJUSTABLE... -
Page 5: Precautions & General Information
PRECAUTIONS AND GENERAL INFORMATION DANGER: BURN HAZARD Contact with cooking grid surface will cause severe burns. Use the handle to lift the grid or rotate the cook head. Avoid contact with grid surfaces. WARNING: ELECTRIC SHOCK HAZARD All servicing requiring access to non-insulated components must be performed by qualified service personnel. -
Page 6: Installation
INSTALLATION NOTE: DO NOT discard UNPACKING & INSPECTION the carton or other packing Carefully remove the appliance from the carton. Remove all protective materials until you have plastic film, packing materials and accessories from the appliance inspected the appliance for before connecting performing any installation procedure. -
Page 7: Operation
OPERATION GENERAL OPERATIONAL NOTES CAUTION: Carefully read the description of the waffle baker operation on the HOT SURFACE specification sheet. DO NOT attempt to perform any maintenance or service unless the Exposed surfaces can be hot waffle baker is disconnected from electrical power. to the touch and may cause burns. -
Page 8: Operation - Electronic Units
OPERATION (ELECTRONIC UNITS) BWB1SE CAUTION: MAKING WAFFLES HOT SURFACE Turn the unit on and allow to pre-heat for 15 minutes with the grids Exposed surfaces can be hot closed. Once the baker has reached proper temperature you can to the touch and may cause proceed as follows: burns. -
Page 9: Cleaning Instructions
CLEANING INSTRUCTIONS CAUTION: PREPARATION BURN HAZARD Unplug appliance from electric power Allow appliance to cool completely. Allow waffle baker to cool FREQUENCY completely before cleaning. Daily TOOLS Plastic Scouring Pad, Soft-Bristled Fiber Brush IMPORTANT: DO NOT spill Mild Detergent, Non-Abrasive Cleanser or pour water into controls. - Page 10 CLEANING INSTRUCTIONS (continued) PREPARATION CAUTION: Unplug appliance from electric power CHEMICAL BURN Allow appliance to cool completely. HAZARD FREQUENCY Waffle baker cleaner may cause serious burns on As needed contact. TOOLS Wear protective clothing and Commercial Carbon Cleaner safety glasses when using 1”...
-
Page 11: Timer Adjustment
Contact an authorized Wells Service Agency for Buzzer pulses (open temp probe) repairs. NOTE: There are no user serviceable components in the cabinet or cooking grids. In all cases of damage or malfunction, contact your Authorized Wells Service Agency for repairs. -
Page 12: Exploded View & Parts List
EXPLODED VIEW: BWB-1S BWB-1S CABINET Model: BWB-1S BELGIN WAFFLE BAKER PL221 IL1796 Rev. B 5/10/12... - Page 13 FOOT RUBBER 5/16-18X5/8 2E-33192 PANEL ON & OFF SWITCH Z1-70-07-0343 GUARD SWITCH TOGGLE BWB-1 2E-44904 SWITCH TOGGLE W/SEAL 125 2M-31239 LOGO WELLS DIECAST RECTAN 2C-31038 RETAINER CLIP TINNERMAN B8-42028 BRKT ASSY SUPPORT BWB-1 2J-40758 LIGHT SIGNAL RED 120V MDB 2I-44890...
- Page 14 EXPLODED VIEW: BWB-1SE Model: BWB1SE - Body Assembly Electonic Belgian Waffle Baker SK2807 Rev. - 8/26/14...
- Page 15 CORD SET 6-15P 16/3W 4FT 240V 2E-72920 CORD & CAP EURO 3 COND CE 230EU, KOR K3-WL0401 CORD ASSY UK 48” #8RNG 230UK 2M-Z18938 LABEL-WIRE DIA BWB1SE-120 120V 2M-Z18939 LABEL-WIRE DIA BWB1SE-240 240V, 230EU, 230UK, KOR August 26, 2014, Rev E...
- Page 16 EXPLODED VIEW: BWB-1S BWB-1S GRIDS * If elements are shorten / open, replace grid assy Model: BWB-1S BELGIN WAFFLE BAKER GRIDS PL221 IL1797 Rev. D 9/02/15...
- Page 17 2C-30222 RETAINER E-RING .179 ID B8-42257 HANDLE ASSY BWB-1 2F-42008UL GRID UPPER BWB-1 TUMBLED 2F-Z19079 GRID UPPER NONSTICK BWB-1 BWB1SE-KOR B8-42023 COVER WIRING UPPER PLATE WS-62006 HOUSING ASSY PIVOT BWB-1 B8-42031 COVER WIRING LOWER BWB-1 2F-42007UL GRID LOWER BWB-1 TUMBLED...
-
Page 18: Wiring Diagram
WIRING DIAGRAM WIRING DIAGRAM FOR BWB-1S 120 VAC CONNECTOR (2) POWER SWITCH white black POWER green CORD MICRO LOWER SWITCH HEATING N.C. ELEMENT N.O. TIME & TEMP. TEMPERATURE SENSOR CONTROLLER BUZZER INDICATOR LIGHT UPPER HEATING ELEMENT VOLTS AMPS 1ph p/n 2M-306655 Rev.(-) 50/60 Hz 120V MODEL BWB-1SE, BELGIAN WAFFLE BAKER VOLTS NOMINAL AMPS... -
Page 19: Parts & Service
B8-42555 For factory authorized service, RUBBER FEET (pk 4) WS-21657 or to order factory authorized replacement parts, contact your Wells authorized service agency, or call: Wells Manufacturing 10 Sunnen Dr. St. Louis MO 63143 USA Service Dept. phone: (314) 678-6314...
