Model 32-TTC:
Tools Needed:
– Medium Phillips screwdriver.
1. Place the tank collar bracket on top of the
center plate. Be sure the mounting bolt knob is
on bottom as shown in Figure 4
2. Insert machine screw into top hole using
Phillips screwdriver.
3. Insert 2nd machine screw into bottom hole.
This will secure the tank collar bracket to the
center plate.
WARNING
Tip over Switch

Assembly

Swivel
Manifold
Tank Collar Bracket

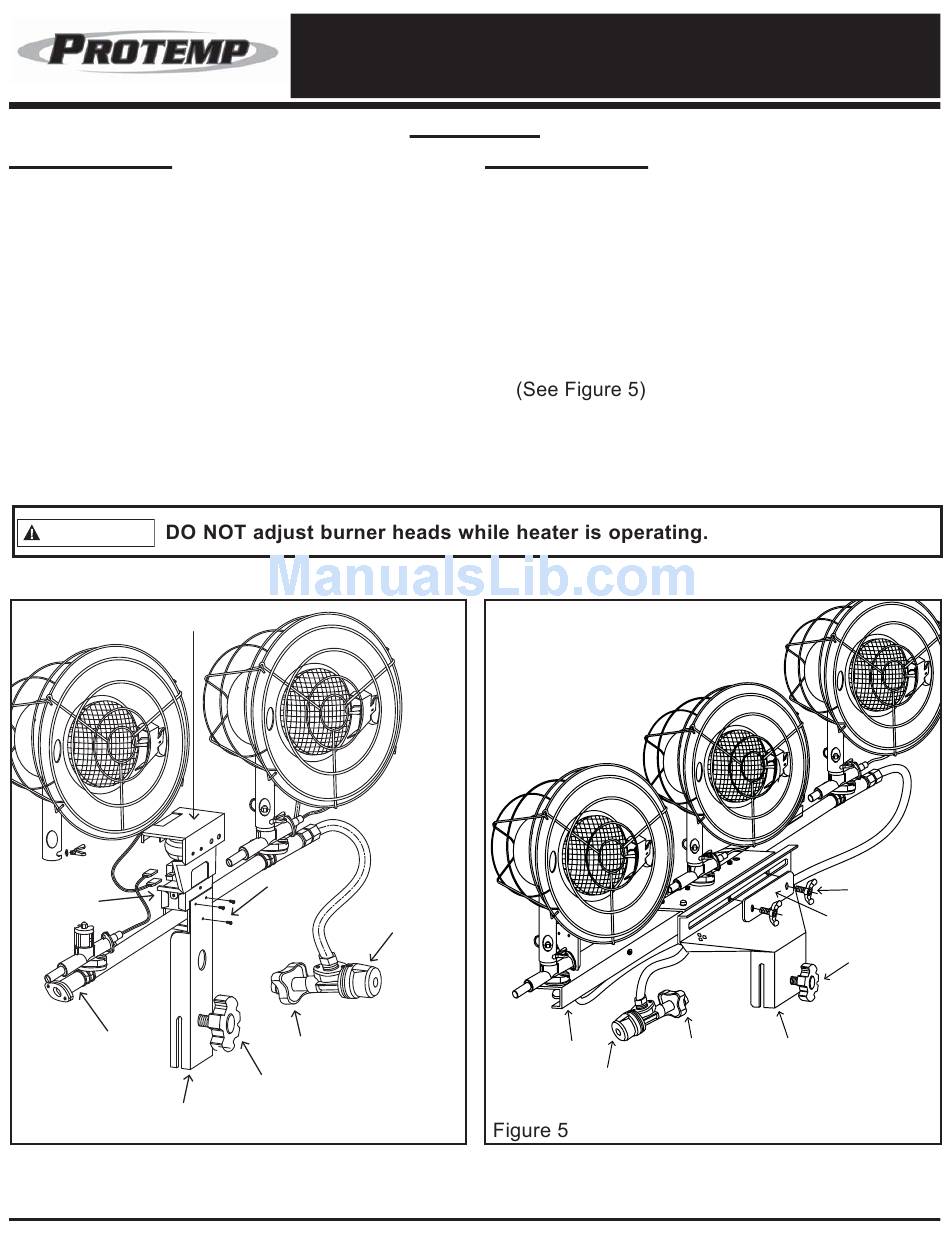

Figure 4
Missing Parts? Please Call 800-641-6996 For Assistance
© 2013, Pinnacle Products International, Inc.
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A FUEL SOURCE
®
Assembly
Machine
Screws
Regulator
Knob
Fuel Connector Nut
Mounting Bolt Knob
Model 47-TTC:
Tools Needed:
– Medium Phillips screwdriver.
1. Insert the mounting bolt knob into tank the
collar bracket.
2. Place tank collar bracket on the swivel bracket.
3. Place the plane washer on the tank collar
bracket and then insert the support bolt.
4. See Figure 6 on page 7 for determining burner
position options.
Swivel Bracket
Regulator
Knob
Propane Tank Top Heater User's Manual
6
Plane Washer
Fuel Connector Nut Tank Collar Bracket
Wing Nut
Mounting
Bolt Knob
