CONSUMER: READ AND SAVE THESE INSTRUCTIONS
GENERAL HAZARD WARNING:
DANGER
READ AND UNDERSTAND ALL OF THE INSTRUCTIONS IN THIS MANUAL
BEFORE ASSEMBLING, STARTING, OR SERVICING THE HEATER. Be sure to comply with the
instructions and warnings provided with this heater. Failure to comply can result in fire or explosion
that can cause property loss, bodily injury, or loss of life. Only persons who can follow and
understand these instructions should operate or service this heater.
NOT FOR USE IN RESIDENTIAL LIVING AREAS OR IN ENCLOSED SPACES
DANGER
WITHOUT ADEQUATE VENTILATION. INDOOR USE PERMITTED ONLY FOR
THE TEMPORARY HEATING OF BUILDINGS OR STRUCTURES UNDER CONSTRUCTION,
ALTERATION OR REPAIR. This is an unvented portable heater that uses air (Oxygen) from within
the area in which it is used. Failure to provide adequate combustion and ventilation air will result in
asphyxiation, carbon monoxide poisoning, bodily injury or death. Refer to "Ventilation" on Page 6.
This appliance shall be installed in accordance with the rules in force,
WARNING
and used only in sufficiently ventilated space. Consult instructions before
installation and use of this appliance.

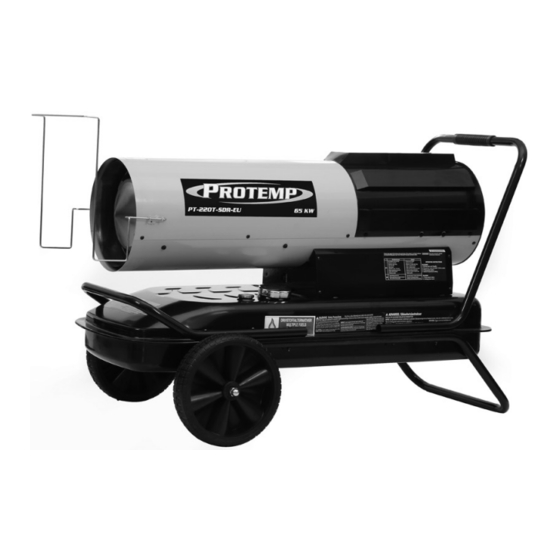

Model Numbers
PT-150T-SDR-EU / PT-220T-SDR-EU
Original Instructions
© 2017, Obelis S.A Registered Address:
Bd. Général Wahis, 53, 1030 Brussels, Belgium
User's Manual &
Operating Instructions
®
PESA-400
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Protemp PT-220T-SDR-EU
Summary of Contents for Protemp PT-220T-SDR-EU
-
Page 1: Operating Instructions
User’s Manual & Operating Instructions ® Model Numbers PT-150T-SDR-EU / PT-220T-SDR-EU CONSUMER: READ AND SAVE THESE INSTRUCTIONS Original Instructions GENERAL HAZARD WARNING: DANGER READ AND UNDERSTAND ALL OF THE INSTRUCTIONS IN THIS MANUAL BEFORE ASSEMBLING, STARTING, OR SERVICING THE HEATER. Be sure to comply with the instructions and warnings provided with this heater. -
Page 2: Table Of Contents
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE ® Table Of Contents Safety Information..........1-2 Wiring Diagram..........10 Features and Specifications.........3 Troubleshooting Guide........11 Assembly............4-5 Exploded View...........12 Operation............6-7 Parts List............13-14 Ventilation.............6 Storage..............8 Safety Information FIRE, BURN, INHALATION AND EXPLOSION HAZARD. Keep combustibles such WARNING as;... -
Page 3: Safety Information
These include: pregnant women, Minimum Clearance From Combustibles those with heart or lung problems, anemia or those PT-150T-SDR-EU PT-220T-SDR-EU under the influence of alcohol or at high altitudes. 1.2 m 1.2 m Not For Indoor Use. Indoor use permitted only Sides 1.2 m... -
Page 4: Features And Specifications
230VAC ~ 50 Hz Air Flow: CMH Amps <1.0 <1.0 Phase 1Ø 1Ø Specifications subject to change without notice. Features Models: PT-150T-SDR-EU / PT-220T-SDR-EU Shell Control Panel Rear Guard Handle Power Cord Support Frame Wheel Fuel Gauge Fuel Cap Fuel Tank... -
Page 5: Assembly Instructions
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE ® Assembly Instructions Model: PT-150T-SDR-EU / PT-220T-SDR-EU Remove the heater and all packaging Tools Needed: materials from the shipping carton. - Phillips Head Screw Driver - 8 mm open end wrench... - Page 6 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE ® Assembly Instructions Models: PT-150T-SDR-EU / PT-220T-SDR-EU 1. Insert axle through holes in wheel support. 2. Slide then spacer onto axle. 3. Slide wheel onto axle with the air valve facing out and hold in place with the axle nuts.
-
Page 7: Operation
RESULT. NEVER FILL THE FUEL TANK Minimum Ventilation Opening Needed CAUTION INDOORS. ALWAYS FILL PT-150T-SDR-EU PT-220T-SDR-EU THE TANK OUTDOORS. BE SURE THAT THE HEATER IS ON LEVEL GROUND WHEN 5.3 ft.² 6.5 ft.² FUELING, AND NEVER OVERFILL THE TANK. 3760 cm²... - Page 8 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE ® Operation Starting the Heater: (Ignition) Control Panel: 1. Fill the tank with paraffin or other approved fuel until needle on fuel gauge points to “F”. 2. Replace fuel cap and tighten firmly. 3.
-
Page 9: Long Term Storage
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE ® Maintenance Long Term Storage: Service: Never service heater while it is WARNING 1. Drain fuel through the drain plug in the bottom plugged in or hot! of the fuel tank. - Page 10 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE ® Maintenance Service (Continued): SPARK PLUG: FAN BLADES: Clean and re-gap every 600 hours of operation, or Blades should be cleaned at least once per replace as needed. After removing the spark plug, heating season, depending on conditions.
-
Page 11: Wiring Diagram
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE ® Maintenance NOZZLES: Nozzles should be cleaned or replaced at least once per heating season. Contaminated fuel could make this necessary immediately. To clean dirt from nozzle, blow compressed air through nozzle front. -
Page 12: Troubleshooting Guide
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE ® Troubleshooting Guide Problem Possible Cause Solution Heater Ignites, but main PCB shuts 1. Dirty input, output or lint filter. 1. Clean / replace air or lint filter. off after a short period of time. -
Page 13: Exploded View
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE ® Exploded View Silent Drive® Forced Air Heater User’s Manual © 2017, Obelis S.A Registered Address: Bd. Général Wahis, 53, 1030 Brussels, Belgium... -
Page 14: Parts List
® Parts List ALWAYS contact the manufacturer of this heater before replacing any parts WARNING other than those specified or recommended in the servicing instructions. Item # Description PT-150T-SDR-EU PT-220T-SDR-EU Front Shell 70-001-5200 70-001-5205 Upper Shell 70-001-5010 70-001-5010 Combustion Chamber... - Page 15 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE ® Parts List Item # Description PT-150T-SDR-EU PT-220T-SDR-EU Fuel Gauge 70-007-0215 70-007-0216 Fuel Cap 70-006-0120 70-006-0120 Fuel Tank 70-002-1000 70-002-1100 Fuel Filter 70-003-1000 70-003-1000 Drain Plug 70-002-0105...
- Page 16 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE ® ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________...
