CONSUMER: READ AND SAVE THESE
INSTRUCTIONS
Locating Your Serial Number:
Your serial number can be found on a blue label on the left side cover. It will begin with the letter "S"
followed by 9 digits. For Example: S160901126. Have your Serial Number ready before calling cus-
tomer service at 800-641-6996.
DANGER
THE HEATER. Be sure to comply with the instructions and warnings provided with this
heater. Failure to comply can result in fire or explosion that can cause property loss, bodily
injury, or loss of life. Only persons who can follow and understand these instructions should
operate or service this heater. If you need heater info; such as an operating manual, labels,
etcetera, contact Pinnacle Climate Technologies at 800-641-6996.
DANGER
USE. INDOOR USE PERMITTED ONLY FOR: THE TEMPORARY
HEATING OF ADEQUATELY VENTILATED BUILDINGS OR STRUCTURES
UNDER CONSTRUCTION, ALTERATION OR REPAIR. This is an unvented
portable heater that uses air (Oxygen) from within the area in which it is
used. Failure to provide adequate combustion and ventilation air will
result in asphyxiation, carbon monoxide poisoning, bodily injury or death.
Refer to "Ventilation" on Page 7.
®
MODEL NUMBERS:
PT-80-OFR / PT-125-OFR-A
GENERAL HAZARD WARNING:
READ AND UNDERSTAND ALL OF THE INSTRUCTIONS IN
THIS MANUAL BEFORE ASSEMBLING, STARTING, OR
SERVICING
NOT FOR USE IN RESIDENTIAL LIVING
AREAS OR IN ENCLOSED SPACES WITHOUT
ADEQUATE VENTILATION. FOR OUTDOOR

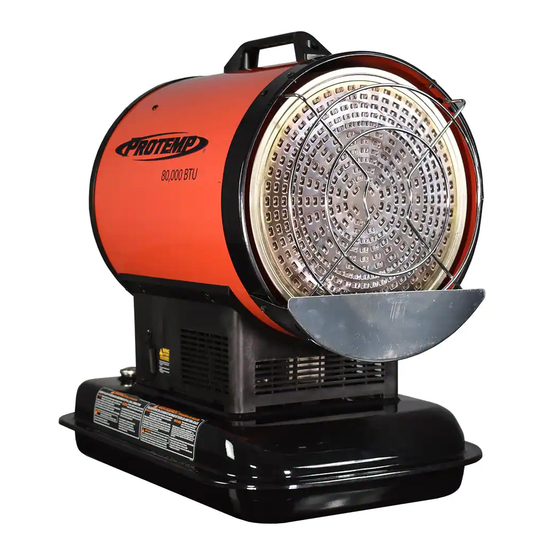

KEROSENE RADIANT HEATER
User's Manual &
Operating Instructions
Sauk Rapids, MN 56379 USA • Toll Free
Fax: 320-251-2922 • Web:
www.protemp.us
© 2019 Pinnacle Climate Technologies, Inc.
Factory ID: 001
U.S. Patent No. 9,644,863
(800) 641-6996
• Email: info@pinnacleclimate.com
PTRG-405
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Protemp PT-80-OFR
Summary of Contents for Protemp PT-80-OFR
- Page 1 User’s Manual & Operating Instructions ® MODEL NUMBERS: PT-80-OFR / PT-125-OFR-A CONSUMER: READ AND SAVE THESE INSTRUCTIONS Locating Your Serial Number: Your serial number can be found on a blue label on the left side cover. It will begin with the letter “S”...
-
Page 2: Table Of Contents
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE TABLE OF CONTENTS Safety Information ........2-3 Maintenance ..........9-10 Specifications ..........4 Wiring Diagram ..........11 Features ............4 Troubleshooting Guide ........12 What’s in the Box ........5-6 Exploded View ........13, 15 Assembly ............5-6 Parts List ..........14, 16 Operation ............7-8... -
Page 3: Safety Information
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE SAFETY INFORMATION (CONT.) WARNING WARNING RISK OF ELECTRIC RISK OF INDOOR AIR SHOCK! POLLUTION! ALWAYS use only the electrical power (voltage and The products described in this manual are kerosene frequency) specified on the model plate of the direct-fired, forced air heaters. -
Page 4: Specifications
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE SPECIFICATIONS Model # 80-OFR 125-OFR-A Rating: Btu/Hr 80,000 125,000 Fuel Consumption: Gal./Hr / L/Hr 0.63 / 2.38 0.85 / 3.22 Fuel Tank Capacity: Gal. / L 4 / 15.14 14 / 53.00 Max Operating Hours... -
Page 5: What's In The Box
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE WHAT’S IN THE BOX 80-OFR Tools Needed: Attach the handle while still in the box - Phillips Head Screw for easier unpacking (see Figures 1 and Driver Figure 1 Figure 2... - Page 6 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE WHAT’S IN THE BOX 125-OFR-A Long Screws (6) 8 mm Nuts (6) Visors (2) Short Screws (4) Wheels (2) Safety Guards Spacers (2) Wheel Frame 19 mm Axle Nuts (2) (Top, Front) Washers (2) Axle (1)
-
Page 7: Operation
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE OPERATION Fueling The Heater: - NEVER use Kerosene that has been stored from one season to the next. Kerosene deteriorates over time. Kerosene OLD Kerosene WILL NOT BURN PROPERLY IN THIS For optimal performance of this heater, it is strongly HEATER. - Page 8 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE OPERATION (CONT.) Starting the Heater (Ignition): Stopping the Heater (Cool Down): 1. Fill the tank with Kerosene or other approved fuel 1. Turn the power switch to the “OFF” position. until needle on fuel gauge points to “F”.
-
Page 9: Maintenance
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE MAINTENANCE Long Term Storage: 1. Unscrew the fuel cap. 2. Using an approved siphon, remove the Kerosene or diesel. 3. Using a small amount of Kerosene or diesel, rinse and swirl the fuel inside the fuel tank NOTE: NEVER MIX WATER WITH FUEL. - Page 10 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE MAINTENANCE (CONT.) Service (Continued): PHOTOCELL: The photocell should be cleaned at least once per NOZZLES: heating season or more depending on conditions. Nozzles should be cleaned or replaced at least once Use a cotton swab and water or alcohol to clean the per heating season.
-
Page 11: Wiring Diagram
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE WIRING DIAGRAMS 80-OFR AC 250V 3.15A ELECTRIC OUTLET AC 120V/60Hz 125-OFR-A © 2019 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual... -
Page 12: Troubleshooting Guide
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE TROUBLESHOOTING GUIDE Problem Possible Cause Solution 1. Dirty Fuel Filter. 1. Clean/replace Fuel Filter. 2. Nozzle Dirty. 2. Clean/replace Nozzle 3. Photocell Dirty. 3. Clean/replace Photocell . 4. -
Page 13: Exploded View
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE EXPLODED VIEW 80-OFR © 2019 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual... -
Page 14: Parts List
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE PARTS LIST: 80-OFR Item # Description Part Number Fuel Filter 75-023-0285 Fuel Line 75-024-0740 Fuel Gauge 75-028-0200 Fuel Cap 70-006-0140 Cooling Fan Housing / Cooling Fan Housing Panel 75-011-0685 / 75-011-0690 Operating Switch 72-012-0120... - Page 15 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE EXPLODED VIEW 125-OFR-A © 2019 Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
- Page 16 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE PARTS LIST: 125-OFR-A Item # Description 125-OFR-A Fuel Filter 72-022-0100 Fuel Cap 72-006-0140 Wheel 72-041-1400 Axle 72-041-0200 Drain Bolt 72-002-0220 Height Adjustment Knob 72-042-0500 Return Fuel Line 72-023-0260 Intake Fuel Line 72-023-0260...
-
Page 17: Limited Warranty
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER ® SOURCE LIMITED WARRANTY Pinnacle Climate Technnologies, Inc. warrants this heater to If Pinnacle Climate Technnologies, Inc. finds the item to be in the original retail purchaser only, to be free from defects in normal operating condition, or not defective the item will be material and workmanship for a period of one (1) year from returned freight collect. - Page 18 Sauk Rapids, MN 56379 USA • Toll Free (800) 641-6996 Fax: 320-251-2922 • Web: www.protemp.us • Email: info@pinnacleclimate.com © 2019 Pinnacle Climate Technologies, Inc.
