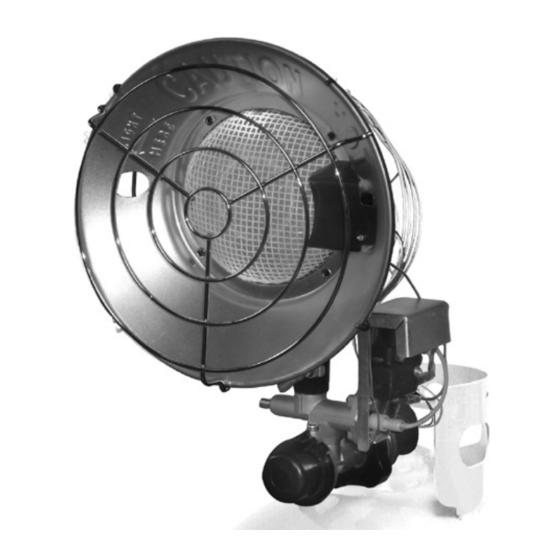

Protemp PT-16-TTC User Manual
Propane tank top
heater
Hide thumbs
Also See for PT-16-TTC:
- User's manual & operating instructions (16 pages) ,
- User's manual & operating instructions (48 pages) ,
- User's manual & operating instructions (51 pages)
Table of Contents
Advertisement
Quick Links
FOR OUTDOOR USE. INDOOR USE PERMITTED ONLY FOR:
The temporary heating of adequately ventilated buildings or
structures under construction, alteration or repair.
CONSUMER: READ AND SAVE THESE INSTRUCTIONS
GENERAL HAZARD WARNING:
DANGER
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH
THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS
OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN. ASPHYXIATION, CARBON
MONOXIDE POISONING AND / OR ELECTRIC SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE
OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTIONS
MANUAL, LABEL, ETC. CONTACT THE MANUFACTURER.
FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID
WARNING
COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR
CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY
THESE INSTRUCTIONS. NEVER USE THE HEATER IN SPACES WHICH DO OR MAY
CONTAIN VOLATILE OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE,
SOLVENTS, PAINT THINNERS, DUST PARTICLES OR UNKNOWN CHEMICALS.
Model Numbers
PT-16-TTC / PT-32-TTC / PT-47-TTC
®
1 Industrial Blvd #101, Sauk Rapids, MN 56379 USA • Toll Free (800) 779-3267
Fax: 320-251-2922 • Web: www.protemp.us • Email: info@pinnacleclimate.com
PROPANE TANK TOP
HEATER
User's Manual &
Operating Instructions
Factory ID: 522
© 2017 Pinnacle Climate Technologies, Inc. PTTA-400
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Protemp PT-16-TTC
Summary of Contents for Protemp PT-16-TTC
- Page 1 CONTAIN VOLATILE OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT THINNERS, DUST PARTICLES OR UNKNOWN CHEMICALS. 1 Industrial Blvd #101, Sauk Rapids, MN 56379 USA • Toll Free (800) 779-3267 Fax: 320-251-2922 • Web: www.protemp.us • Email: info@pinnacleclimate.com © 2017 Pinnacle Climate Technologies, Inc. PTTA-400...
-
Page 2: Table Of Contents
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A FUEL SOURCE ® Table Of Contents Safety Information..........1-3 Maintenance and Storage........10 Features and Specifications......4-5 Troubleshooting Guide........11 Assembly............6-7 Exploded View...........12 Operation............8-10 Parts List............13 Ventilation.............9 Warranty.............14 Safety Information Safety Information NOT FOR HOME OR RECREATIONAL VEHICLE USE. WARNING Carbon Monoxide Hazard This heater produces carbon monoxide, which has no DANGER... -
Page 3: Safety Information
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A FUEL SOURCE ® Safety Information RISK OF INDOOR AIR PROPANE IS AN WARNING DANGER POLLUTION! EXPLOSIVE GAS! WHAT TO DO IF THE SMELL OF GAS IS PRESENT: The products described in this manual are –... - Page 4 WARNING gas only. to using the heater. DO NOT use any LP cylinder Minimum and Maximum Inlet Pressure WARNING larger than 20 lbs. PT-16-TTC PT-32-TTC PT-47-TTC Min. 5 PSI – Use heater in accordance with all local codes. Max. 200 PSI In the absence of local codes, refer to The National Fuel Code, ANSI Z223.1.
-
Page 5: Features And Specifications
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A FUEL SOURCE ® Specifications Model # PT-16-TTC PT-32-TTC PT-47-TTC 12 / 14 / 16,000 25 / 28 / 32,000 36 / 40 / 47,000 Fuel Consumption (Lbs./hr) .56 / .65 / .74 1.16 / 1.30 / 1.49... - Page 6 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A FUEL SOURCE ® Features PT-32-TTC Rear Guard Heat Reflector Front Guard Ignition Hole Hose Safety Valve Regulator Tip Over Switch Mounting Bolt Knob Figure 2 Features PT-47-TTC Rear Guard Heat Reflector Front Guard Ignition Hole...
-
Page 7: Assembly
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A FUEL SOURCE ® Assembly Model PT-32-TTC: Model PT-47-TTC: Tools Needed: Tools Needed: – Medium Phillips head screwdriver. – Medium Phillips head screwdriver. 1. Place the tank collar bracket on top of the 1. - Page 8 Fully tighten the nut, being careful not using the heater. to over tighten. 4. Slowly open the LP cylinder valve. Model PT-16-TTC: 1. Be sure that the control knob on the regulator Check all connections for leaks using a 50/50 is in the “OFF” position.
-
Page 9: Operation
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A FUEL SOURCE ® Operation Propane Supply / Information: – The amount of Propane (LP) used with this Propane (LP) heater varies. Both factors are This heater is not supplied with a propane cylinder. Use only an approved propane cylinder. -
Page 10: Ventilation
Operation Lighting Instructions: 1. STOP! Be sure to read all of the Safety Information (See pages 1-3). Models PT-16-TTC / PT-32-TTC / PT-47-TTC – ALWAYS Stand to the side or rear of the Be sure to read and understand heater. -
Page 11: Maintenance And Storage
To Turn Off Heater 1. Turn the valve on the LP cylinder CLOCKWISE Models (CONT) PT-16-TTC / PT-32-TTC / PT-47-TTC to stop the flow of fuel. 9. Once lit, keep the plunger depressed for thirty 2. Turn the heater regulator knob to the (OFF) (30) seconds. -
Page 12: Troubleshooting Guide
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A FUEL SOURCE ® Troubleshooting Guide Locating Your Serial Number: Your serial number can be found in the bottom left hand corner of the heater’s instruction hang-tag. It will begin with the letters “PGTT” followed by 8 digits. For Example: PGTT12345678. Have your Se- rial Number ready before calling customer service at 800-779-3267. -
Page 13: Exploded View
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A FUEL SOURCE ® Exploded View Figure 8 © 2017, Pinnacle Climate Technologies, Inc. Propane Tank Top Heater User’s Manual... -
Page 14: Parts List
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A FUEL SOURCE ® Parts list Item Description PT-16-TTC PT-32-TTC PT-47-TTC Hose Assembly ‒ 20-051-0001 20-051-0002 Thermocouple 20-091-0002 20-091-0002 20-091-0002 Mounting Bolt Knob ‒ 20-503-0001 20-503-0001 Tipover Switch 50-017-0001 50-017-0001 50-017-0001 ©... -
Page 15: Limited Warranty
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A FUEL SOURCE ® LIMITED WARRANTY Pinnacle Climate Technologies, Inc. warrants this heater If Pinnacle Climate Technologies, Inc. finds the item to to the original retail purchaser only, to be free from defects be in normal operating condition, or not defective the item in material and workmanship for a period of one (1) year will be returned freight collect. - Page 16 1 Industrial Blvd #101, Sauk Rapids, MN 56379 USA • Toll Free (800) 779-3267 Fax: 320-251-2922 • Web: www.protemp.us • Email: info@pinnacleclimate.com © 2017 Pinnacle Climate Technologies, Inc.
