Page 1: User Manual
HUNTER-PRO 32 Intruder Alarm System User Manual PIMA Electronic Systems Ltd. 5 Hatzoref Street, Holon 58856, Israel ℡ +972-3-5587722 +972-3-5500442 support@pima-alarms.com http://www.pima-alarms.com... - Page 2 HUNTER-PRO 32 Intruder Alarm System - Installation Manual PIMA Electronic Systems Ltd. does not represent that its Product may not be compromised and/or circumvented, or that the Product will prevent any death, personal and/or bodily injury and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the Product will in all cases provide adequate warning or protection.
-
Page 3: Table Of Contents
HUNTER-PRO 32 Intruder Alarm System - Installation Manual TABLE OF CONTENTS CHAPTER 1: INTRODUCTION ..........4 Main Features HUNTER-PRO 32 .........5 Safety Precautions ............5 Signs and Abbreviations Key ..........6 CHAPTER 2: KEYPADS ............7 Display Screen ..............8 Keys’ Function ..............10 Entering User Menu............11 CHAPTER 3: ARMING &... -
Page 4: Chapter 1: Introduction
To assure optimal safety and security, you should test the HUNTER-PRO 32 Intruder Alarm System once a week. For any further questions, please do not hesitate to contact your local PIMA distributor or PIMA directly at: PIMA Electronic Systems Ltd. -
Page 5: Main Features Hunter-Pro 32
HUNTER-PRO 32 Intruder Alarm System - Installation Manual 1.1 Main Features HUNTER-PRO 32 8 to 32 zones with wireless add-on, local, and remote bus expanders Supports a wide range of partition options: Up to 16 partitions each with it own Account ID and Users Up to 8 subsystems each with different keypads, IDs, etc. -
Page 6: Signs And Abbreviations Key
HUNTER-PRO 32 Intruder Alarm System - Installation Manual To reduce the risk of fire or electric shock, do not expose this alarm system to rain or moisture. Do not open the door of the alarm system. Dangerous high voltages are present inside of the enclosure. Refer servicing to qualified personnel only. -
Page 7: Chapter 2: Keypads

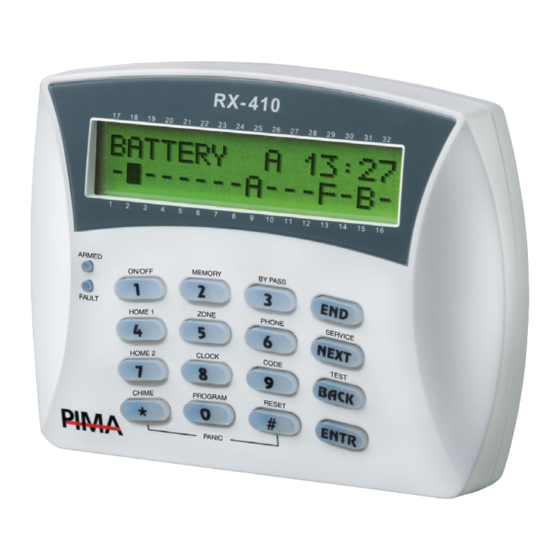

HUNTER-PRO 32 Intruder Alarm System - Installation Manual CHAPTER 2: KEYPADS HUNTER-PRO 32 works with PIMA’s LCD keypads: RXN-400 and RXN-41O, especially designed for maximum simplicity, durability and decorative design. The keypad is used for arming, disarming and programming the system as well as displaying time and date, system status information, events and defaults, memory log and more. -
Page 8: Display Screen
HUNTER-PRO 32 Intruder Alarm System - Installation Manual 2.1 Display Screen The display screen has two lines with 16 characters each. The upper line displays the time and the date. The lower line displays data system regarding the , such as events, faults and zone status. - Page 9 HUNTER-PRO 32 Intruder Alarm System - Installation Manual 2.1.2 PIMA Display All events and zones displayed in a single screen using signs and abbreviations System status Date Time J A N P S 0 0 : 2 2 - B _ - - F - - _ - - - - - - -...
-
Page 10: Keys' Function
HUNTER-PRO 32 Intruder Alarm System - Installation Manual NOTE: If technician selected PIMA display, the system will not display the zone status during faults. Only after faults resolved, PIMA Display renews. 2.2 Keys’ Function Operating and programming the system commences by first entering the Master Code and then pressing any further required keys. -
Page 11: Entering User Menu
HUNTER-PRO 32 Intruder Alarm System - Installation Manual Programming key Programming key Display service Provider information Programming key Test siren, battery, AC, and tel. line Programming key Display system’s name and version 2.3 Entering User Menu In order to program and change data in the user level, you must first enter the User Menu. - Page 12 HUNTER-PRO 32 Intruder Alarm System - Installation Manual User Menu Function key (see User Code Choose 1,2... page 10) When user selects a function (i.e., the corresponding key is pressed) that he or she does not authorized to, the system displays the...
-
Page 13: Chapter 3: Arming & Disarming The System
HUNTER-PRO 32 Intruder Alarm System - Installation Manual CHAPTER 3: ARMING & DISARMING THE SYSTEM The system can be armed and disarmed using one of four methods: Keypad Remote control or key Automatically (arming only) Remotely via telephone As a rule, the system should be armed ONLY when all zones (but those on the exit route) are closed and there are no faults (e.g.,... -
Page 14: Arming/Disarming Via Keypad
HUNTER-PRO 32 Intruder Alarm System - Installation Manual 3.1 Arming/Disarming via Keypad 3.1.1 System Messages During Arming 3.1.1.1 Arming with Closed Zones (normal arming) Before arming the system, make sure all zones (except exit delayed zones – usually zones on exit route) are closed: make sure that in... - Page 15 HUNTER-PRO 32 Intruder Alarm System - Installation Manual To cancel arming: system returns to normal operation mode 3.1.2 Arming with Master Code … User Menu Master Code Choose 1,2... NOTE: The system’s default Master Code is: 5555 3.1.3 Fast arming with User Code and/or Short Code...
-
Page 16: Arming/Disarming With Remote Control
HUNTER-PRO 32 Intruder Alarm System - Installation Manual Arming HOME 1: Arming HOME 2: NOTE: Exit delays in HOME 1 and HOME 2 can be disabled by technician. 3.1.6 Arming via the User Menu If user is enabled by technician to enter the User Manu:... -
Page 17: Arming/Disarming With Key
Doing so, the user can also get indication if the remote control’s battery is low. 3.3 Arming/Disarming with Key HUNTER-PRO 32 can be armed/disarmed with a key. Turn to the technician in order to install this feature. NOTE: It is possible for the technician to program the system to produce a short and beep when the system is armed with the key. - Page 18 HUNTER-PRO 32 Intruder Alarm System - Installation Manual The system can detect movement in the protected area via its connected detectors and sensors, therefore, it can identify no- movement hence there is no one in the protected area. When the system starts auto-arming, the display will show “Automatic Arming”...
-
Page 19: Disarming The System
HUNTER-PRO 32 Intruder Alarm System - Installation Manual 3.4.2 Programming Auto-Arming after no-detection period User Menu Master Code /Enabled User Code Choose 1,2... -OR- User Menu User Code Choose 1,2... In the following screen, enter the no-detection period (in minutes) -
Page 20: Remote Control Via Touch-Tone Phone
HUNTER-PRO 32 Intruder Alarm System - Installation Manual User Menu User Code Choose 1,2... NOTE: If the system does not turn to Disarm state, make sure that the time is included in the preset time frame that enables disarming the system (see section “Programming User Codes”) - Page 21 HUNTER-PRO 32 Intruder Alarm System - Installation Manual Phone key: Function: Arm the system Disarm the system Arm the system in “Home 1” mode Switch on the Relay Switch off the Relay Arm the system in “Home 2” mode Listen in (only available with a MIC-100) Disables siren and dialer (in case of an alarm).
-
Page 22: Chapter 4: Programming And Operation
IMPORTANT! Pay attention that HUNTER-PRO 32 has a code-control feature that does not allow entering identical codes. For example, if one of the user (or master) codes is programmed as 1010, any attempt to program a new code as 1010 or starting with 1111 (e.g., 10101,... - Page 23 Menu and perform various tasks as viewing memory changing other users settings, program telephone numbers, etc. HUNTER-PRO 32 holds up to 24 different User Codes, 4 to 6 digits each. See “Entering User Menu” on page 11 for a description on how to access the User Menu with User Code.
-
Page 24: Deleting User
HUNTER-PRO 32 Intruder Alarm System - Installation Manual User 1 ENTER/NEXT/END … Enter user number (1-24) -OR- User 1 ENTER/NEXT/END (Enabled User Code) Enter user number (1- NOTE: An asterisk (*) placed to the right of the user’s name means that the user is already defined in the system. - Page 25 HUNTER-PRO 32 Intruder Alarm System - Installation Manual How to Select and Enter Characters? Each numeric code-entry key has characters associated with it the same as with standard cell phone letters. The number of key depressions you make determines which character is selected, e.g.
- Page 26 HUNTER-PRO 32 Intruder Alarm System - Installation Manual The following example illustrates key depressions for the word ‘7PIR’. Character Key Pressed Follow Key Depressions 4.1.2.4 Modifying User Access User Access User 1 ENTER/NEXT/END ENTER/NEXT/END UTCMBKA +++----- (code programming bar) NOTE: To scroll on Access Bar, use keys.
- Page 27 HUNTER-PRO 32 Intruder Alarm System - Installation Manual User can view the Memory Log; User cannot view Memory Log (default) User can bypass zones; User cannot bypass zones (default) User can operate partition via any keypad (when using partitions); User can operate partition ONLY via designated keypad (default) User can program auto-arming parameter;...
- Page 28 HUNTER-PRO 32 Intruder Alarm System - Installation Manual NOTE: To scroll on User Partitions Bar use keys. Marking a “+” above a partition allocates it to the user. Marking a “-“ denies this possibility. In order to change the mark from “-” to “+” (and vise versa) press the key.
- Page 29 HUNTER-PRO 32 Intruder Alarm System - Installation Manual 4.1.4 Programming Duress Code This code is useful when the system is connected to a security station. The Duress code will disarm the system (if armed) and trigger the Silent Alarm, sending a duress signal to the security station without activating the sirens.
- Page 30 HUNTER-PRO 32 Intruder Alarm System - Installation Manual used manually (directly pressed on keypad) and remotely via telephone (see section 3.6 “Remote Controlling via Telephone”). NOTE: Each entering of a Relay Code changes the relay’s status (ON to OFF and vise versa).
-
Page 31: Programming Time And Date
4.3 Private Dialer Telephone Numbers HUNTER-PRO 32 system has four private dialer telephone numbers. The dialer will dial each phone number in two sets (i.e. total of 8 attempts) and trigger an alarm warning sound, when the call is ‘picked’. - Page 32 HUNTER-PRO 32 Intruder Alarm System - Installation Manual minute of not receiving any command (see “Remote Control via Touch-tone Phone” on page 20). NOTE: In case a Voice-Unit is connected to the system, once the call is picked-up, there is a recorded message, and not a warning sound.
-
Page 33: Chime
HUNTER-PRO 32 Intruder Alarm System - Installation Manual 4.4 Chime Programming the “Chime” feature enables to control opening/closing doors and windows by activating the keypad’s buzzer for two seconds each time a door/window is opened. This feature is especially useful when there are small children in the house, or in shops. -
Page 34: Alarm
HUNTER-PRO 32 Intruder Alarm System - Installation Manual 4.5 Alarm There are two possibilities for displaying the name and number of the zone/s that triggers the alarm at the time of an alarm. The technician sets the default display. PIMA Display All the zones and their status appear simultaneously in a single screen (see section 2.2 “PIMA Display”). -
Page 35: Panic
HUNTER-PRO 32 Intruder Alarm System - Installation Manual 4.6 Panic To activate panic, press and hold simultaneously the keys for two seconds. NOTE: You can customize your system's response to a panic event, for example, calling the Monitoring Station or your private telephone number, activate a relay (video camera), activate siren, etc. -
Page 36: Canceling Keypad Buzzer
Entr-Conf #-Rst Enter zone number to confirm or to release. In PIMA Display, the letter “B” will appear above/below the bypassed zone/s, and display will continue to the next screen. Press a number of times unit exiting to time/zone screen 4.11 Memory Log... - Page 37 HUNTER-PRO 32 Intruder Alarm System - Installation Manual 4.11.1 Accessing Memory Log Manually Master Code/Enabled User Code/Zero long press + User Code scroll events using Press to jump 10 events in one key-press. 4.11.2 Memory Log Display Arming and disarming are memorized with the name if the code that initiated them, along with any bypassed zones present at the time.
-
Page 38: System Display Types
4.12 System Display Types HUNTER-PRO 32 has two possible system displays: PIMA Display: All the zones and their status appear in a single screen Scrolling Display: A detailed description of the zones and their status, each zone in a different screen, and automatically appearing one after the other. - Page 39 HUNTER-PRO 32 Intruder Alarm System - Installation Manual IMPORTANT! Pressing in "Zone List”/”Opened Zones”/”Bypassed Zones”/”Soak Test Zones”/”Chime Zones” screens gives a detailed description of the zones in this category. Pressing in "Activated Partitions" screen gives the detailed description on the zones in this category in the following manner: Partitions marked by an “X”: Activated...
-
Page 40: Chapter 5: Troubleshooting
HUNTER-PRO 32 Intruder Alarm System - Installation Manual CHAPTER 5: TROUBLESHOOTIN NOTE: If more then one failure is detected, the display will scroll the failure list one after the other. If more than one keypad is connected to the HUNTER-PRO, and you are programming... - Page 41 HUNTER-PRO 32 Intruder Alarm System - Installation Manual Clock Appears following a prolonged power failure during which the backup battery was completely discharged. Set time and date (see section 3.8.4) Phone Perform “system self-test” (see section 3.6). Verify during the test that other instruments connected to the Alarm System’s telephone line (i.e., telephone sets, facsimiles,...
